1969 Gibson Les Paul Custom: Early And Late Specs
A 1969 Gibson Les Paul Custom can have early one-piece construction or later features such as a layered pancake body and a small neck volute. Gibson introduced these changes at different times, so the body, neck, headstock and original parts need to be considered together.
1969 Gibson Les Paul Custom Specifications

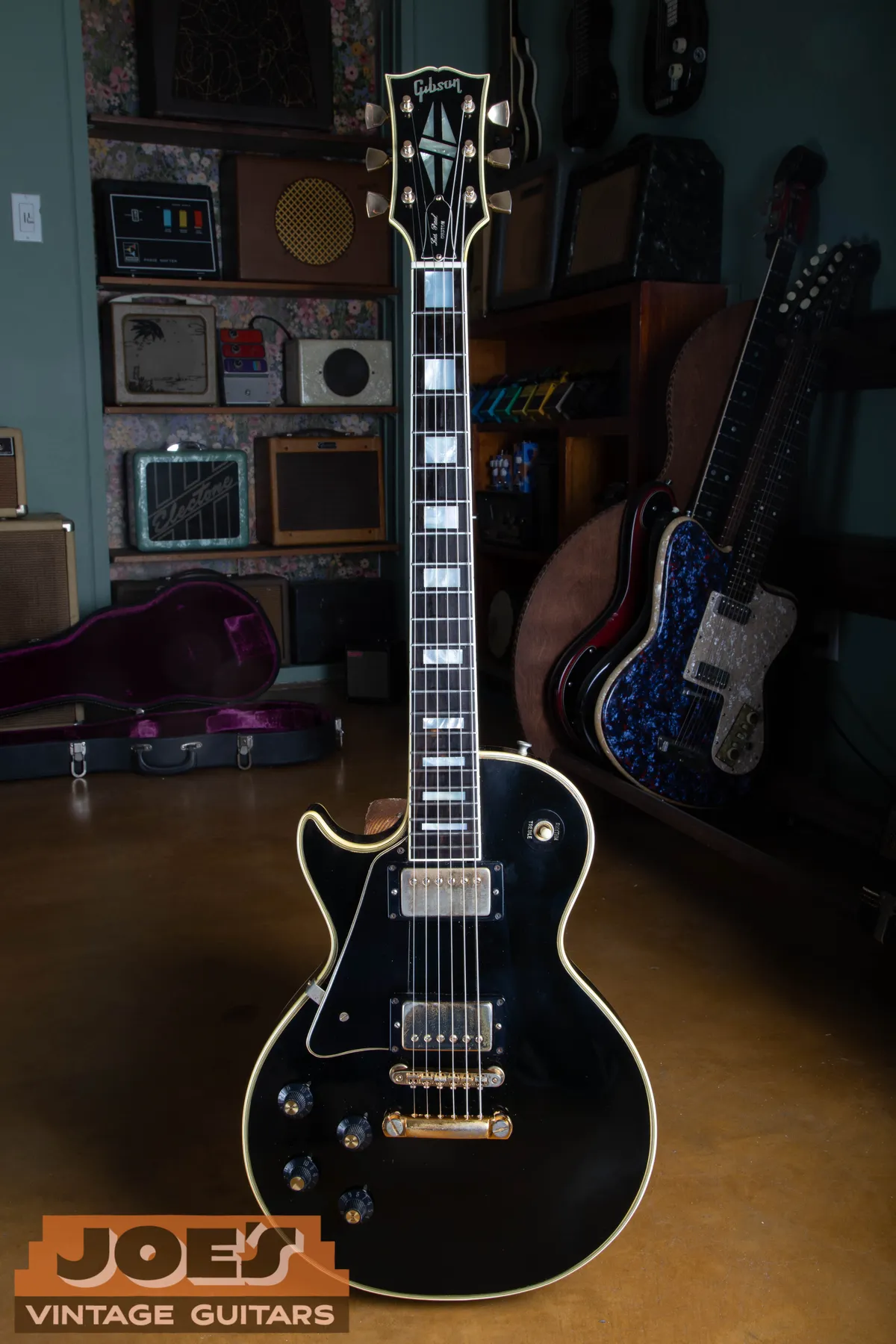

The 1969 Les Paul Custom is the black, gold-trimmed version of Gibson's single-cutaway Les Paul. Its carved maple top sits over a mahogany back, and the neck carries a dark ebony fingerboard with large pearl block inlays. Layers of contrasting binding outline the body and headstock, where the Gibson name sits above the split-diamond decoration.
The regular model has two humbuckers, pickups that use paired coils to reduce electrical hum. Each pickup has its own volume and tone control, and a three-way switch selects either pickup or both. The strings pass over a narrow ABR-1 bridge and end at a separate stopbar tailpiece, described in the hardware section below.
Gibson specified 22 low frets and a nominal 24¾-inch scale length, the vibrating length of the open strings. The low fretwire is behind the Fretless Wonder nickname. Many surviving guitars have been refretted, so the playing feel today may differ from the original low-fret setup.
These features identify the Custom model. Within 1969, the differences that help date it are mostly in the way Gibson assembled the body and neck. If you'd like help placing your guitar in that sequence, send photos for a Custom dating appraisal.
1969 Les Paul Custom One-Piece And Pancake Bodies
Every regular 1969 Custom discussed here has a carved maple top, often called a cap. What changed was the construction beneath it. Early examples have a full one-piece mahogany back, continuing the design used in 1968.
Some early-1969 bodies add a thin maple layer immediately below the cap while keeping that full mahogany back. This is called upper crossbanding. It appears around the 535xxx to 537xxx portion of the observed early serial group, where x represents an unspecified digit. That range describes observed examples, not an exact changeover for every Custom.
Later in 1969, Gibson began using the pancake body. Here, a thin maple layer sits between two thick mahogany sections. The carved maple top is above that sandwich. The position of the thin layer separates the two constructions: directly under the cap on the earlier form, or through the middle of the mahogany back on a true pancake body.

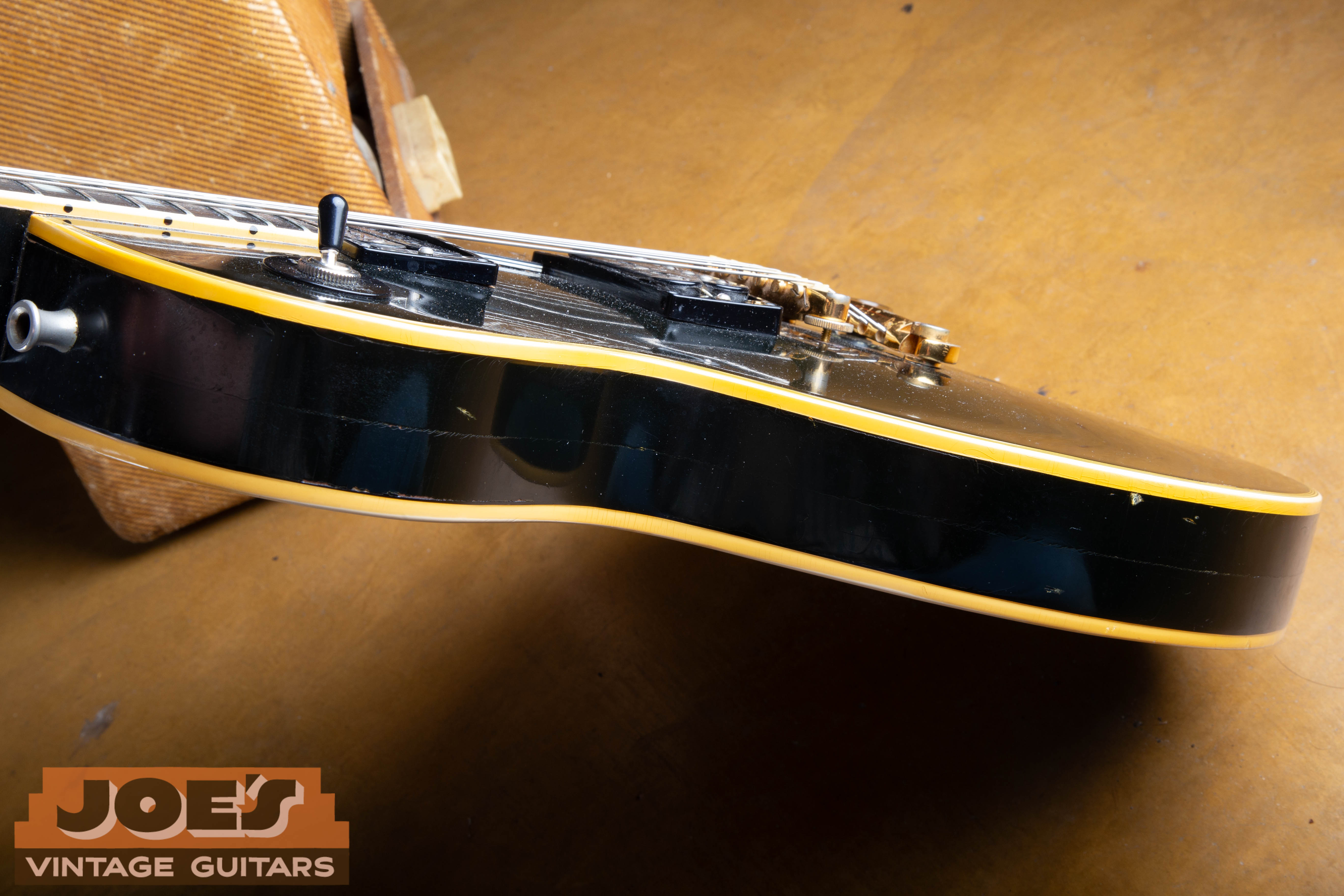

A body-edge photograph can show the horizontal line through the back, although a black finish may hide the wood itself. The body construction guide explains the layers, and the three-year comparison places them alongside the neck changes.
What Does The Control-Cavity Shape Show?
The control cavity is the recess beneath the plastic cover on the back of the guitar. It houses the volume and tone controls and their wiring. With that cover removed, the wood around the controls shows how the recess was cut.
The earlier shape has relatively straight walls and a flat wooden floor. A later shape, appearing during early 1969, has a small shelf or stepped ledge near the bottom. These terms describe the inside of the wooden recess, not the electronics or the plastic cover. They add supporting evidence when a guitar fits the early transition, but don't establish an exact month.
1969 Les Paul Custom One-Piece And Three-Piece Necks
A one-piece neck uses a single main piece of mahogany for the neck shaft. A three-piece neck uses three long sections joined side by side, so the joins run along the neck. The fingerboard is a separate piece of ebony attached to the front of either design.
One-piece mahogany necks continue into spring 1969. Three-piece mahogany necks appear during the spring transition and are documented by May. This happens before the true pancake body becomes the later pattern, which is why a three-piece neck can be attached to a one-piece mahogany back.
Black lacquer can make the joins difficult to see. The three-piece mahogany neck reference shows their lengthwise direction. The maple necks seen on later Customs belong to the mid-1970s changes, rather than the regular 1969 specification.
1969 Les Paul Custom Long And Transitional Neck Tenons
The tenon is the wooden extension at the body end of the neck. It fits into a matching recess and is glued in place to connect the neck to the body. A photograph taken with the neck pickup removed can reveal the end of this joint inside the pickup cavity.

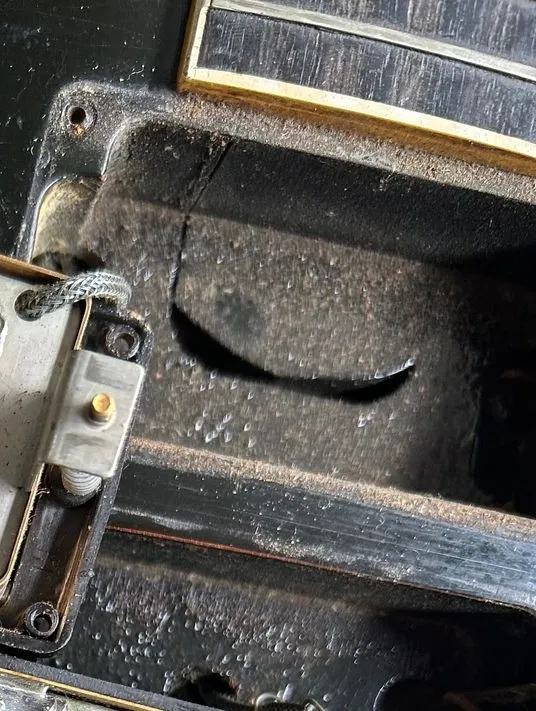

Early 1969 Customs can have the long tenon used in 1968. Its visible tongue reaches into the cavity beneath the pickup. A shorter transitional joint appears around late April and May, although the neck and body assemblies overlap during that change.

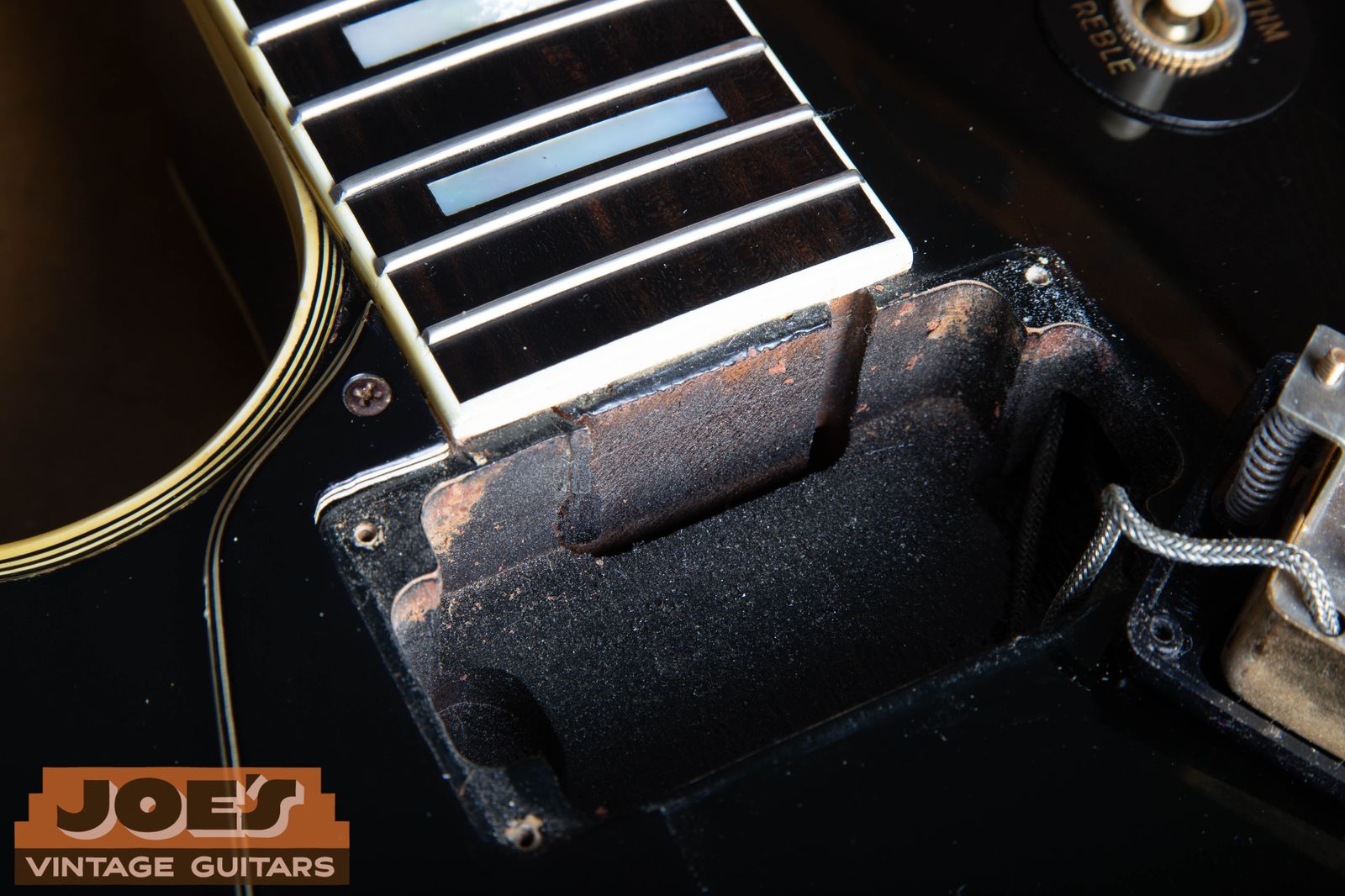

The photographs show the difference: the shorter 1969 joint ends near the fingerboard-side wall, while the long tenon projects farther into the opening with a rounded tongue. Descriptions sometimes call the transitional joint a short tenon. The photograph is more informative than the label on its own.
Look at the end of the actual neck wood in these views. The empty recess around it can extend farther than the tenon, because a longer body cavity can remain after the joint changes. The 1968 to 1970 tenon comparison explains how that joint fits with the body and neck construction.
1969 Les Paul Custom Volutes, Logos And Headstock Marks
A volute is a raised area of wood on the back of the neck just below the headstock. It sits behind the nut, the slotted piece that supports the strings before the tuners. Early and middle 1969 Customs have a smooth transition here. A small swelling appears late in the year.
The earliest volutes are much less pronounced than the ridge on some later Norlin Customs. A side view can reveal a small one that is hard to see in a straight rear view. The illustrated volute comparison shows the smooth and raised forms. Repairs and sanding can change the contour, so a small-looking ridge isn't a date by itself.
A factory 1969 Custom doesn't have a Made in USA stamp. Gibson introduced that marking during 1970, and some early 1970 guitars also lack it. An unstamped headstock can therefore fit either late 1969 or early 1970 when the construction overlaps.
The Dot Over The I In The Gibson Logo
The usual logo for the late-1968 through 1971 period has no dot above the i. The dot returns around 1972, although individual examples overlap the broad timeline. Earlier dotted logos can also appear on transitional guitars. The Gibson logo guide shows the lettering changes.
Use the logo as part of the same comparison as the neck, volute and serial. It can narrow the style of headstock, but a headstock-face repair or replaced veneer may have changed what survives.
Early Vs Late 1969 Les Paul Custom Changes
The sequence below describes observed construction groups. The dates are approximate, and transitional combinations overlap. Read the full group of features before assigning an individual guitar to one row.
| Period | Body And Neck | Tenon And Headstock |
|---|---|---|
| Early 1969, Into Spring | One-piece mahogany back and neck; some bodies add a thin maple layer directly beneath the cap | Long tenon; smooth transition behind the nut; no Made in USA stamp |
| Spring To Middle 1969 | Three-piece mahogany neck appears while the one-piece back continues | Transitional shorter joint appears; no volute on many examples |
| Late 1969 | True pancake back appears, with a maple crossband between mahogany layers | Three-piece mahogany neck, shorter transitional joint and small volute enter the comparison; no factory Made in USA stamp |
1969 Les Paul Custom Waffleback And Grover Tuners
The tuners are the geared mechanisms on the headstock that wind the strings. Gold Kluson Super wafflebacks are the familiar early-Custom design. Their metal housings have a ribbed rear pattern, and the buttons you turn have a keystone shape.

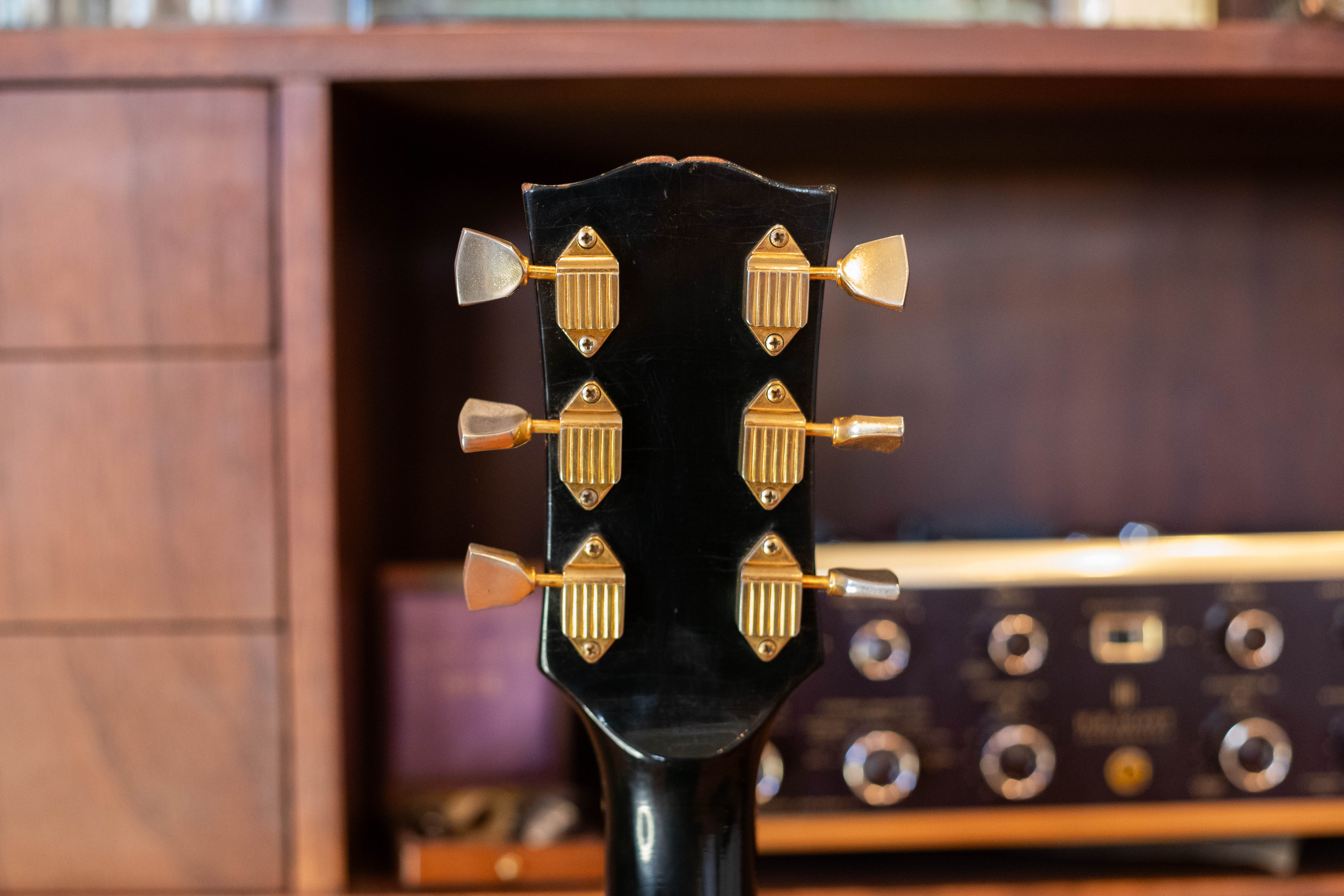

The 1970 Custom photograph below shows that shared early tuner family. The housing shape and mounting screws are easier to compare from the back of the headstock than from a full front view of the guitar. The waffleback tuner guide provides further detail.
Grover Rotomatics have rounded enclosed housings instead. Some early Customs, including some 1968 examples, received Grovers at the factory, while many others were converted later. Extra screw holes, filled holes or old washer marks can reveal an earlier set, so Grovers alone don't prove either originality or modification.
Later Gibson-branded enclosed tuners belong in the broader illustrated Custom tuner timeline. If those appear on a guitar described as a 1969, its mounting details and service history need to be considered alongside the year.
1969 Les Paul Custom Pickups, Bridge And Frets
The regular 1969 Custom uses two full-size humbuckers. Collectors commonly call these Patent Number pickups because of the label on the metal baseplate underneath. T-Top describes a different feature: a molded T on the plastic bobbin that holds a coil of wire. The same pickup can have both the patent label and T-Top bobbins.
The photograph below shows the Patent No. 2,737,842 sticker, braided lead wire and solder holding the cover on this pickup. The bobbins remain hidden under the gold cover. The Gibson pickup guide explains which details distinguish the designs and what can be seen without removing an intact cover.
ABR-1 Bridge And Stopbar Tailpiece
The ABR-1 is the narrow bridge beneath the strings near the bridge pickup. Its individual saddles adjust the string length so notes stay in tune along the neck. The stopbar is the separate piece behind it that holds the string ends.
An original-style ABR-1 sits on small threaded posts. The wider Nashville bridge and its different mounting hardware came later. The ABR-1 reference shows the bridge body, retaining wire and saddles. Those smaller parts can be replaced during servicing without replacing the entire bridge.
Low Frets And Refretted Customs
The ebony fingerboard has 22 low frets. Their low height is part of the Fretless Wonder playing feel, but fretwire wears with use. A refret replaces the wires, often with taller ones, so two otherwise similar 1969 Customs can feel different under your fingers. Good fretwork and a comfortable setup are worth considering alongside originality.
How Pot Codes Help Date A 1969 Les Paul Custom
Under each volume or tone knob is an electrical component called a potentiometer, usually shortened to pot. The stamped code on its metal casing can give the manufacturer and production date. These controls sit inside the rear control cavity described earlier.
A CTS code commonly follows 137YYWW: 137 identifies CTS, YY is the year and WW is the week. For example, 1376902 means the second week of 1969. That's a worked example of the format.

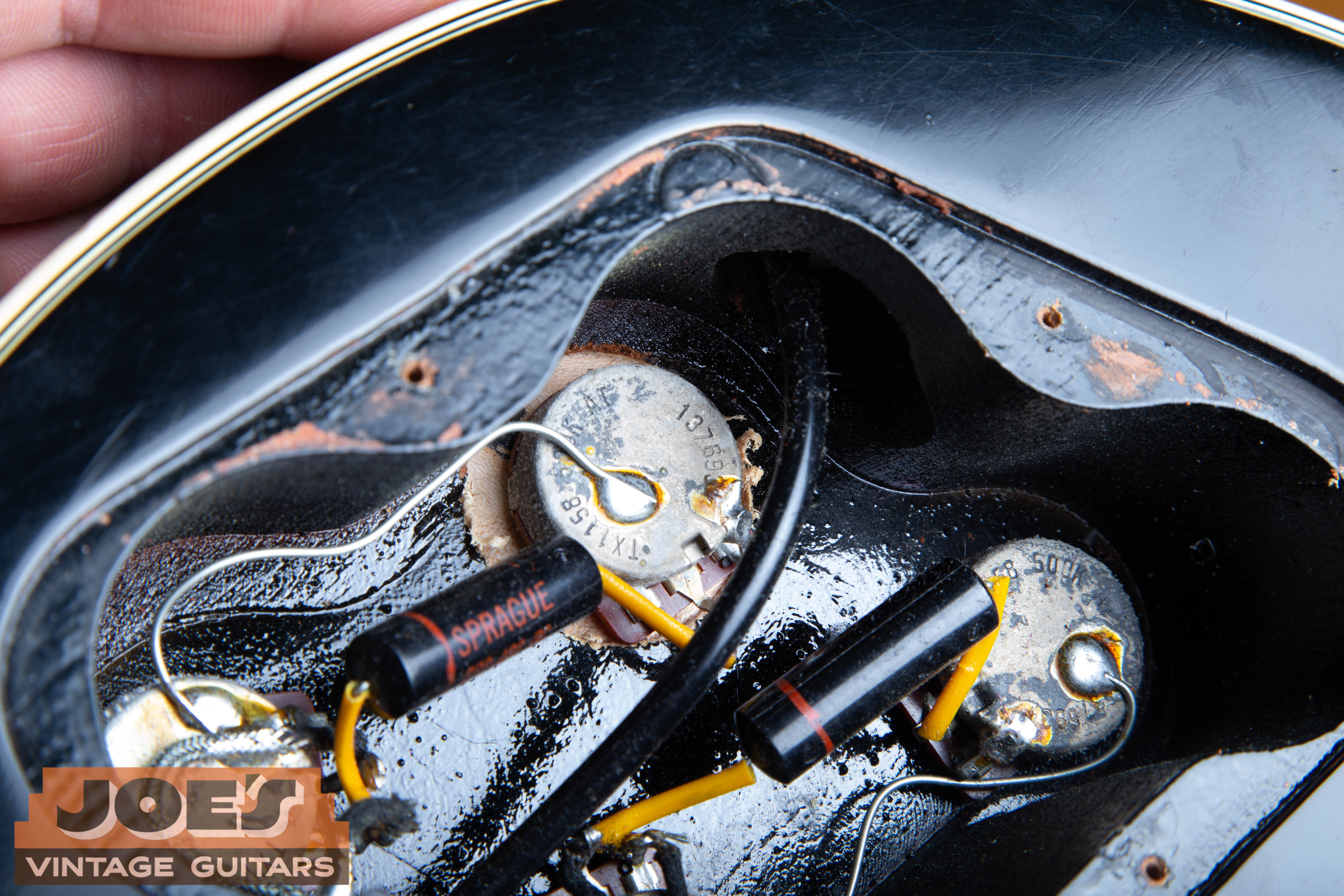

In the photograph below, 13769 is visible on the upper pot, while solder partly hides the final week digits. It supports a 1969 component date without supplying the complete week. Other markings on a pot can identify its electrical resistance or a Gibson part number; the Gibson pot-code guide explains how to tell them apart.
A pot dates the component, rather than the finished guitar. Original 1969 pots can appear in a 1970 instrument because parts could remain in stock before assembly. Replaced pots tell you about a later repair, which is why the wiring and solder joints belong in the same assessment.
1969 Les Paul Custom Serial Numbers And Dating
The six-digit number impressed into the back of the headstock isn't a date code like Gibson's later eight-digit system. Gibson reused ranges, which is why a serial decoder can suggest several years for the same number. The Gibson serial number guide explains that overlap.
Early 1969 overlaps the 506xxx to 561xxx construction group that began in late 1968. Later 565xxx to 566xxx and several 800xxx groups appear during the transition. Very late 891xxx to 897xxx and some 9xxxxx numbers lead into the 1969 to 1970 overlap. Each x stands for an unspecified digit, and these observed Les Paul groups aren't a complete Custom-only sequence.
The construction gives those numbers context. A one-piece neck and long tenon suggest the early group; a three-piece neck, pancake back and small volute suggest the later transition. Original pot dates can narrow the earliest possible assembly date, but don't automatically identify the finished guitar's year.
The 1968 vs 1969 vs 1970 guide brings these features together. If a small-volute pancake-body Custom with 1969 pots fits late 1969 or early 1970, that range is more useful than an exact year chosen from an ambiguous lookup.
1969 Custom Shipping Totals, Original Price And Cases
The Gibson shipping table lists 2,353 Customs for 1969, compared with 433 in 1968. It doesn’t divide those shipments into one-piece-neck, three-piece-neck and pancake-body versions.
The September 1, 1969 price list gives the Custom at $575, with the 535 Faultless case another $73. Orange-lined cases remain part of the early comparison; purple-lined shaped cases enter around the late-1969 and early-1970 transition. Case stock and later replacements make lining color a supporting detail.
Compare the shell, latches, handle and interior in the Gibson case guide. Keep invoices and warranty paperwork with the instrument, especially when they help establish its early history.
What Is A 1969 Les Paul Custom Worth?
Construction should be established before choosing comparable guitars. An early one-piece-neck, one-piece-back Custom and a late pancake-body example can both be 1969 guitars. A price attached to one form shouldn’t automatically be assigned to the other.
Our Les Paul market guide, checked in October 2026, gives a broad $12,000 to $18,000 US retail estimate for 1968 to 1969 Customs in excellent, all-original condition with the correct case. It isn’t a separate valuation for every 1969 construction group.
Check original finish, headstock repairs, pickup changes, tuner conversions and fretwork. The low original frets and a later tall refret produce different playing experiences. An appraisal should describe that work and the actual neck and body construction alongside the year.
1969 Les Paul Custom Questions
Does Every 1969 Les Paul Custom Have A Pancake Body?
No. Early examples retain a one-piece mahogany back. Some add a thin maple layer directly beneath the cap, which differs from the later pancake construction. A true pancake back has a maple layer between two thick mahogany sections and appears late in 1969.
Can A Three-Piece Neck Go With A One-Piece Back In 1969?
Yes. The three-piece mahogany neck appears before the true pancake body becomes the later pattern. That combination fits the 1969 transition because Gibson changed the neck and body construction at different times.
Should A 1969 Les Paul Custom Have A Volute?
Early and middle 1969 examples have a smooth neck-to-headstock transition. Small volutes appear late in the year. The more pronounced ridge seen on later Customs shouldn't be treated as the only possible volute shape.
Should A 1969 Les Paul Custom Have A Made In USA Stamp?
A factory 1969 Custom doesn't have the stamp. Gibson introduced it during 1970. Its absence doesn't exclude early 1970, so an unstamped guitar can still need other evidence to separate the two years.
Do 1969 Pot Codes Rule Out A 1970 Guitar?
No. Pots manufactured in 1969 could remain in stock and be installed during 1970. The date code belongs to the component. Its installation must also be original before it can help establish the guitar's earliest possible assembly date.
Are Grover Tuners Always A Later Modification?
No. Factory Grover installations occur on some early Customs, but replacements are also common. The mounting holes, washer marks and known history help distinguish a factory installation from a later conversion.
Can A Long Tenon Date A Custom To 1968?
Early 1969 Customs also have long tenons. The joint helps identify the early construction, but it needs to be considered with the neck, back, serial and original pot dates to distinguish 1968 from early 1969.
