1959 Gibson Les Paul Standard Burst: Value, Specs And PAFs
A 1959 Les Paul Burst combines a sunburst maple top, mahogany body and two PAF humbuckers, with 643 Sunbursts recorded as shipped that year. Its value depends on the individual guitar’s finish, parts, repairs and documented history.
My full-guitar illustration is a 2022 R9 reissue, not a vintage 1959 Les Paul. The close-ups show vintage parts from my existing guides, including ES-335s and earlier Goldtops. Each caption identifies the source guitar where documented so you can compare the feature in context.
1959 Les Paul Value
How Much Is A 1959 Les Paul Worth?
My range for 1958 to 1960 Sunburst Standards is $200,000 to $500,000+, which includes the 1959 Burst. These are US retail estimates for all-original guitars in excellent condition with the correct original case, reviewed in July 2026. My vintage Les Paul value guide explains the condition categories and how I compare guitars.
Original finish and PAFs strongly affect collector value; repairs, replacement parts and neck alterations can put a guitar outside the range. Within the category, I weigh the maple top’s appearance, neck condition and documented provenance. I keep a refinished guitar or a modern R9 in its own price comparison.
Expert note from Joe Dampt
Provenance and original-owner photos can change my assessment of a 1959 Les Paul's value.
For a value specific to your guitar, send me photos for a Gibson appraisal.
The 1959 Standard In The Burst Timeline
1959 sits between the Goldtop-to-sunburst change of 1958 and the neck and hardware changes of 1960. The core construction continued: a single-cutaway mahogany body, carved maple top, two humbuckers, ABR-1 bridge and separate stopbar. I use that continuity to identify the model before examining details of the year.
The catalog wording followed its own timeline. My Les Paul dating guide explains that the 1958 catalog still says Les Paul guitar or model, and the 1960 catalog is the first to use Les Paul Standard. Standard is the familiar name used here for the 1959 carved-top Burst.
1959 Shipping Totals
How Many 1959 Les Pauls Were Made?
Gibson’s records show 643 Sunburst Les Pauls shipped in 1959. That’s the shipment total for the Burst branch, separate from Customs, Juniors and other Les Paul models. A ledger counts shipments, not surviving guitars or an exact assembly date for each instrument. My Gibson shipping totals page shows the model-by-model figures.
The same table records 635 Sunbursts in 1960 and just 2 in 1961. That steep drop supports 1960 as the last main production year of the single-cutaway Burst, while allowing for a small number of later shipments. The 1960 Standard guide follows the change to the SG body.
1959 Specifications
I use these specifications as the starting comparison, then describe each guitar’s condition and service history separately.
| Feature | Typical 1959 Standard |
|---|---|
| Body | Mahogany back with a carved maple top and single cutaway |
| Finish | Cherry Sunburst top; red dye can fade |
| Neck | Mahogany, rounded profile with individual variation |
| Fingerboard | Bound rosewood, trapezoid inlays, 22 frets |
| Scale Length | Nominal 24.75 inches |
| Factory Frets | Wider wire introduced in 1959; some early examples retain narrow frets |
| Pickups | Two PAF humbuckers |
| Controls | Two volumes, two tones and a three-way switch |
| Hardware | ABR-1 Tune-o-matic and separate tailpiece; nickel-finished hardware |
| Appearance | Cream trim, gold bonnet-style knobs and maple figure that varies by guitar |
The 1958 catalog and 1960 catalog bracket this year with the same 22-fret, nominal 24.75-inch-scale layout. The bound rosewood fingerboard, trapezoid inlays and cream body trim help distinguish this model from the other Les Paul branches. The Les Paul family identification guide compares the Standard with the Custom, Junior and Special.
What My R9 Photo Shows

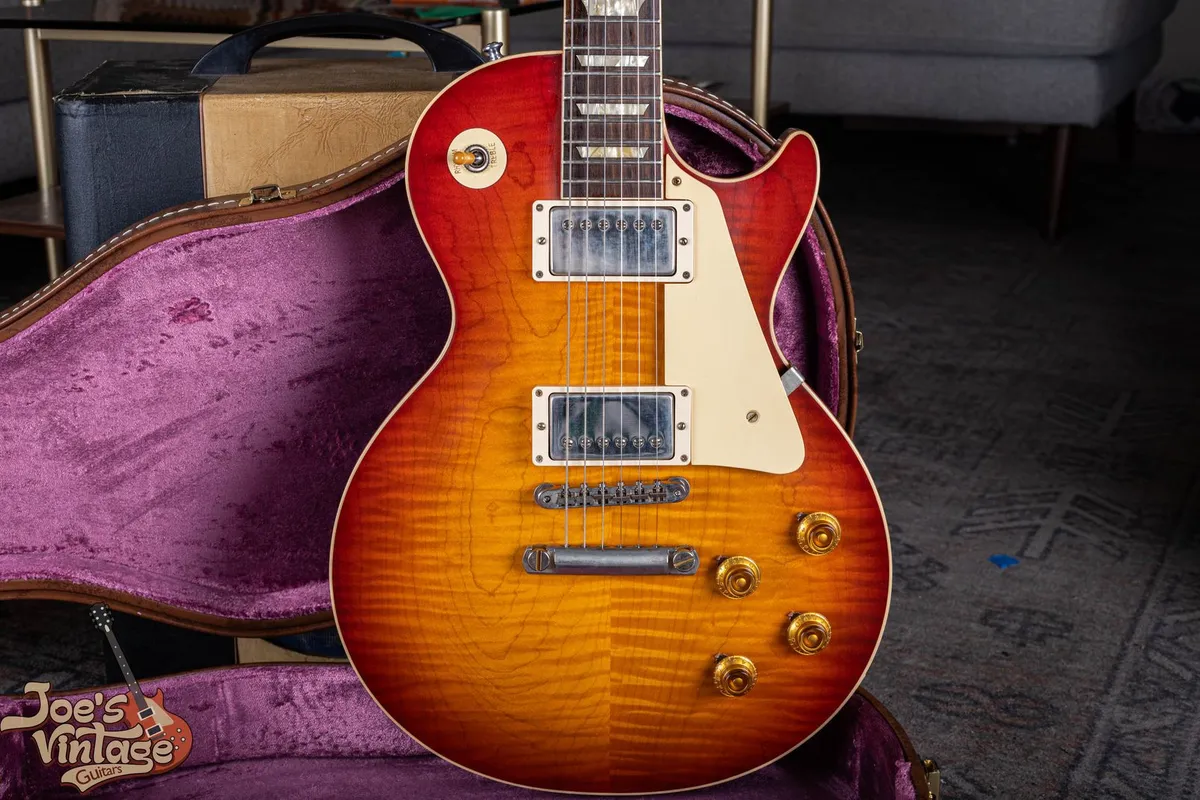

My photographed 2022 Gibson R9 Les Paul Standard 1959 Reissue has pronounced horizontal maple figure across a red-to-amber sunburst. Two covered humbuckers sit in cream rings beside the cream pickguard. The bridge, stopbar and four gold knobs show the Standard’s layout clearly.

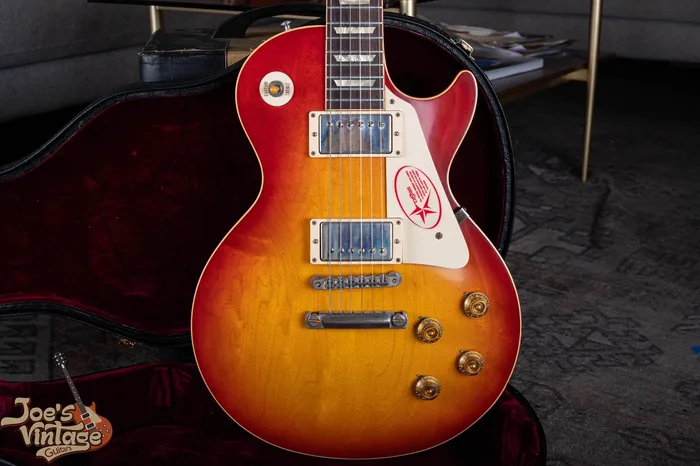

Compare its top with the plainer 2011 R8 illustration. The difference is visible in these two modern guitars. It isn’t a rule dividing every vintage 1958 top from every vintage 1959 top.
The R9 is a modern instrument throughout this discussion. Its finish, pickup covers, wear and vintage-style case illustrate a reissue’s appearance. The vintage close-ups below provide separate examples of period construction, with their source models identified.
Maple Tops And Sunburst Color
Did Every 1959 Les Paul Have A Flame Top?
No. Maple figure varies, and a heavily striped top isn’t a requirement for a 1959 Standard. Lighting and viewing angle also change how visible the figure is. I compare the wood’s appearance separately from its date and condition. The Les Paul dating guide explains how finish and construction fit into the identification.
The visible maple figure and the finish’s fade both matter in the comparison. Red dye can fade heavily, so I compare the exposed top with protected areas and keep the finish history in the description.
For useful photographs, include the complete top, binding and edges under consistent light. A straight-on beauty shot can conceal the carve in reflections. I also want to see any repaired or touched-up area clearly, before polishing or other work changes its appearance.
Neck Shape, Frets And Playability
The 1959 neck is generally rounded, with variation in depth and shoulders between guitars. I describe the actual profile because the phrase “1959 neck” covers more than one feel. Fingerboard edges, fret height and setup also change the playing experience.
Wider factory fretwire arrived during 1959, with early overlap. GuitarHQ’s documented original-fret examples include wider frets in the low 9 0300 serial range and narrow frets on an illustrated guitar in the low 9 06xx range. I wouldn’t use one serial as a clean cutoff.
That overlap matters when reviewing an early 1959: small frets can be a factory feature, and large frets can be either factory wire or later work. I compare wear, binding and repair records before describing a refret. The 1960 neck section includes attributed measurements that show how much the profiles can differ.
What’s The Difference Between A 1959 And A 1960 Les Paul?
A 1959 Standard generally has a rounded neck, gold bonnet knobs and single-ring tuner buttons. Early 1960 guitars can resemble it, while later examples move toward slimmer necks and reflector knobs. Double-ring buttons appear around mid-1960. Both years retain PAFs, the carved maple top and mahogany body. My 1960 Les Paul guide shows the changes and comparison photos.
When you’re evaluating playability, compare the guitar in your hands: remaining fret height, nut condition, neck relief and the bridge’s adjustment room. For a played 1959, I regard a quality refret as accepted maintenance: it doesn’t remove an otherwise all-original guitar from that category. I wouldn’t call the refretted example museum quality, and I still record the work.
PAFs And The 1959 Sound
PAF stands for Patent Applied For, the wording on the early Gibson humbucker’s familiar baseplate decal. The pickup reached Les Pauls during 1957, before the Burst finish arrived. Each humbucker uses two coils, one with adjustable pole screws and one with steel slugs, above a bar magnet.
My PAF sound and construction guide describes variation in coil turns, wire tension and alnico magnet grades. The two coils weren’t consistently wound to the same count, and those differences help explain why PAFs vary in response. I listen to the individual pickups rather than assuming that a 1959 date promises one sound.
The 1959 pickups fall within the long-magnet PAF period described in that guide. A later rewind or magnet replacement changes the comparison, so I keep documented service work with the pickup’s description. Bobbin color affects collector demand for its appearance and rarity; it doesn’t define the sound.
Bobbin Color And Pickup Covers
From spring 1959 into mid 1960, Gibson’s bobbin supplier ran short of black material and shipped cream bobbins, which were mixed into production as they arrived. That supply window explains the black, zebra and double-white combinations described in my PAF bobbin-color reference.
What Is A Zebra PAF Pickup?
A zebra is one pickup with one black bobbin and one cream bobbin. On PAF zebras, the cream bobbin is almost always the slug coil. Two cream bobbins in one pickup are called double white.
Covers conceal the bobbins, so I keep cover condition and solder history separate from the color description. Leave an intact cover in place for an initial review.
The already-open pickup below shows the slug side and a glimpse of the winding wire. My pickup guide identifies the dark purple-brown color as plain-enamel wire used during the PAF years.
Controls, Bridge And Small Parts
Each pickup has a volume and tone control, with a three-way selector for the neck, bridge or combined setting. I listen through the switch positions and move the controls through their travel. A description should record intermittent controls or repair work alongside the component information.
Inside the cavity, the pots, capacitors and solder provide another view of the guitar’s history. The Gibson pot-code reference explains component-maker and date markings. I compare those markings with the installation and service records.
The ABR-1 bridge and stopbar form separate assemblies. The bridge has individual saddles and height-adjustment wheels; the stopbar anchors the strings behind it. The same-year ES-335 below makes that arrangement visible at close range.
On the tuners, one line of Kluson Deluxe lettering identifies the casing style, while one molded ring identifies the button style. These are separate details.
The gold bonnet knobs have plain tops without the metal inserts of later reflectors. Cream rings and pickguard accompany the Standard’s covered humbuckers. The Gibson knob guide supplies closer comparisons between the bonnet and reflector shapes.
Dating And Originality Checks
A vintage 1959 solidbody typically has an ink-stamped serial beginning with 9 on the back of the headstock. The full number, spacing and surrounding finish belong in the photograph.
How Can I Tell A Real 1959 Les Paul From An R9?
I compare the guitar’s construction and paperwork with its serial. Historic reissues use the common M YNNN format in my Les Paul dating guide: M identifies the year being reissued, with 8 for 1958, 9 for 1959 or 0 for 1960. Y is the build year’s last digit, followed by the production sequence.
The examples show why I check the instrument and its paperwork together:
- A 2011 R8 reads 8 1xxx: 8 identifies the 1958 design and 1 the build year’s last digit.
- A 2022 R9 reads 9 2xxx. That format looks just like a vintage 1959 serial.
- The 2014 R0’s 0 4285 identifies a 1960 reissue, with 4 matching its documented 2014 build year.
The build-year digit repeats each decade. I use the paperwork and physical features to establish the decade; the serial’s 4 alone doesn’t distinguish 2014 from another year ending in 4.
A factory Made in USA stamp is a concrete reason to reject a claimed 1959 manufacture date: my later Les Paul construction reference places that mark from 1970 onward. Its absence doesn’t settle the R9 question, because vintage-style reissues also omit it. For those closer look-alikes, the neck and body construction, pickup assembly, finish and matching factory paperwork need to agree.
My 1959 Originality Checklist
- PAF Bobbin And Cover History: Record known bobbin colors, cover solder, rewinds and replacement magnets while leaving intact covers in place.
- Sunburst Finish: Compare the top’s exposed and protected color, touch-up and any refinish history.
- Neck And Structural Repairs: Describe the rounded profile, fret work, neck reshaping and headstock or heel repairs separately.
- Provenance: Match ownership records and original-owner photographs to the guitar being assessed.
For original-owner photographs, I compare identifiable grain, wear and visible hardware with the guitar in front of me. A clearly dated photo can help establish when a visible feature was already present. It won’t reveal a hidden rewind or establish who did a repair, so I keep service receipts and pickup inspection evidence alongside the ownership record.
My Les Paul identification and dating guide supplies the wider inspection sequence.
An older Goldtop converted to humbuckers and a sunburst finish also needs its own description. The conversion’s starting model, routes, finish and hardware work remain part of its history. I separate that category from a factory 1959 Burst when assessing the guitar.
R9 Reissues Versus Original 1959 Guitars
R9 identifies a modern Historic interpretation of the 1959 design. I establish its manufacturing year, exact model and condition from the instrument and documentation. A certificate is useful when it agrees with the guitar’s details.
Historic specifications have changed over time, so I use documentation for the particular reissue. For the pictured guitar, that means a 2022 R9. Its price belongs with modern examples of that model and condition, rather than the vintage range at the beginning of this article.
For the adjacent vintage years, compare the 1958 Goldtop and Burst specifications and 1960 neck, knob and tuner changes. Those comparisons help explain the design being recreated.
Resources And Related Reading
- Les Paul dating guide: model history, catalog names and Historic serial numbers.
- PAF and patent-number pickup guide: bobbin colors, construction and inspection details.
- Gibson shipping totals: 1959, 1960 and final 1961 Sunburst shipments.
- Vintage Les Paul value guide: price categories and condition comparisons.
Send Me Your Les Paul’s Details
Send front and back photographs, the serial and both sides of the headstock, neck heel, hardware, case and known repairs. Add ownership history and service receipts so I can compare the physical details with the records.
Call me at (602) 900-6635, send your photographs and questions, or read about selling your Gibson guitar. You can also read about my background before arranging a review.
