Identifying the Rare “Electric” Martin: A Deep Dive into the D-18E and D-28E Specs

A rare factory-original 1959 Martin D-28E. Note the distinctive dual DeArmond pickups and the iconic gold-plated hardware that set this Brazilian Rosewood legend apart.

In the late 1950s, the acoustic world was facing a “volume crisis.” As rock and roll took over, acoustic guitars were being drowned out by drums and electric amps. Martin’s response was the “E” series—the D-18E and D-28E. Produced only between 1958 and 1959, these guitars were initially considered a commercial failure, with only a few hundred made. Today, they are among the most discussed and polarizing vintage Martins in existence, thanks to a mix of quirky engineering and a massive surge in pop-culture relevance. This guide will take you through the similarities and differenced between the D-18e and the D-28e. In addition, we will ocver authentication tips and model specifications. If you need help finding the year of your Martin, check out our Martin serial number lookup. If you’d like to sell a guitar, visit our “sell my Martin” page.

Shared Specs: The “DeArmond” DNA

While their tonewoods differ, the “E” (Electric) components remain the core of these models’ identity.

• The Pickups: Both models are equipped with two DeArmond single-coil pickups mounted directly into the top. These give the guitars a unique, almost “jazz box” amplified tone that sounds more like a hollow-body electric than a natural acoustic.

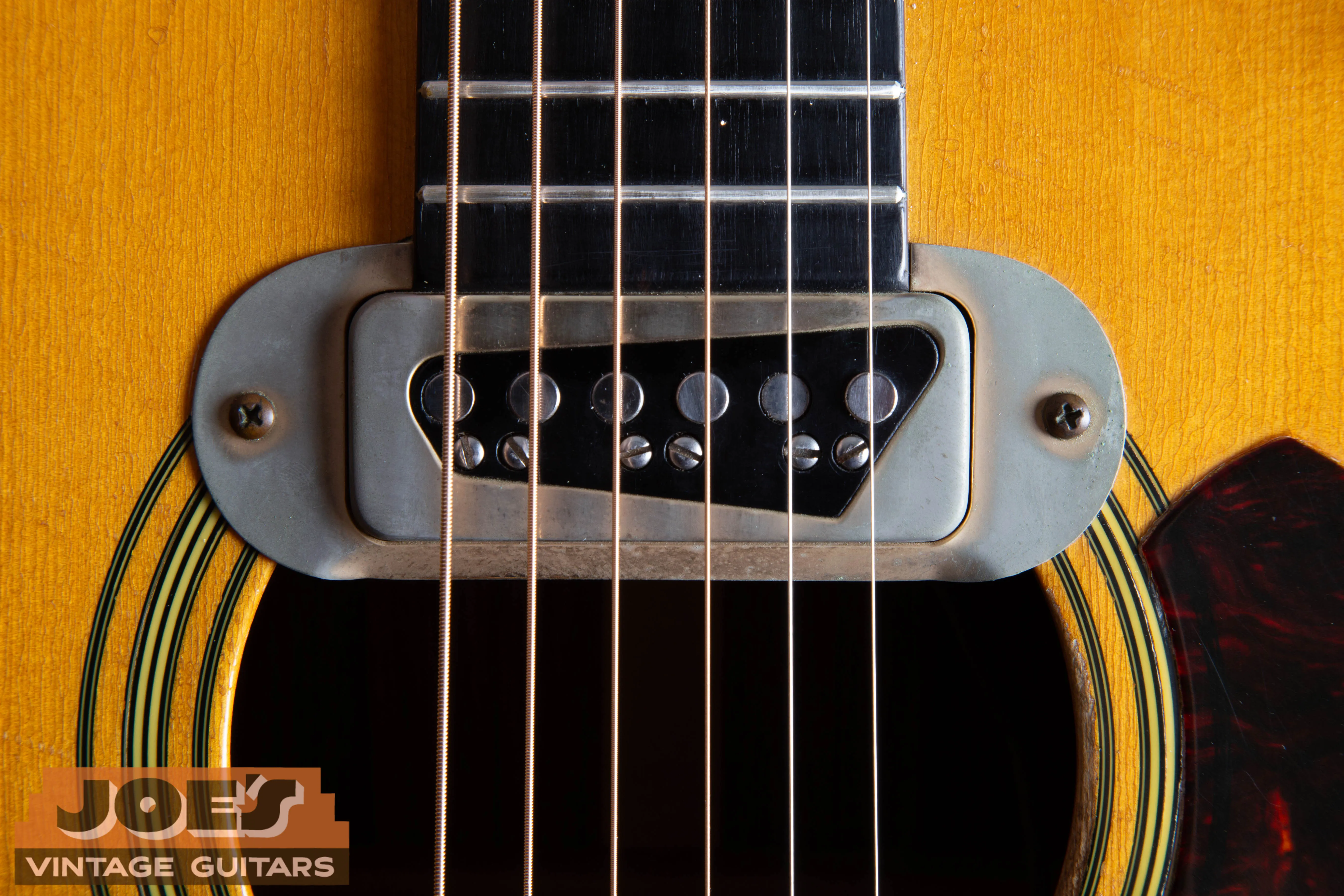

The heart of the “E” series: A close-up of the legendary DeArmond pickup. These single-coils are the primary feature used to identify a factory-original Martin acoustic-electric from the late 1950s.

• The Controls: They feature a three-way toggle switch and three control knobs.

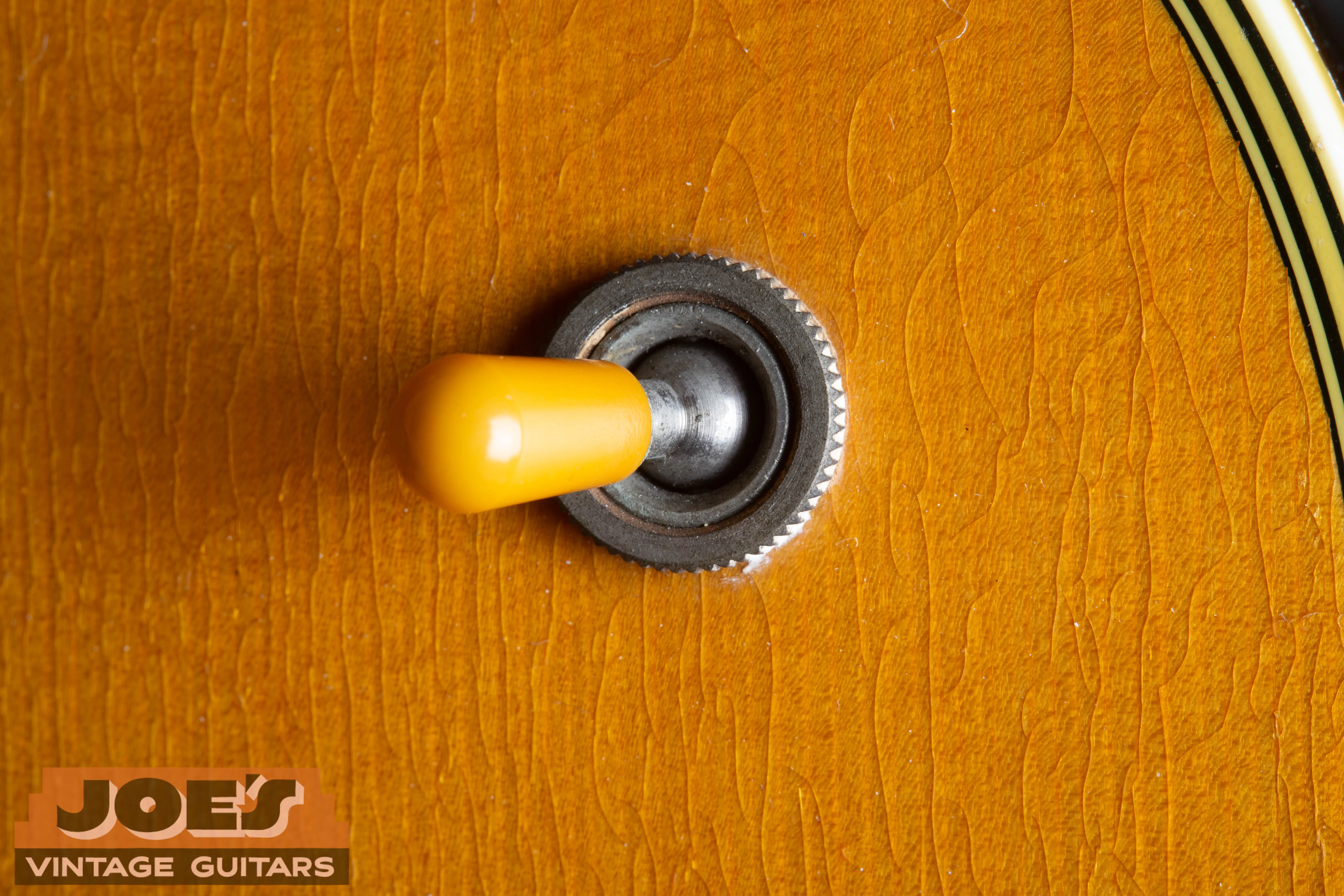

The original 3-way toggle switch on this D-18E allows players to select between the bridge and neck DeArmond pickups, a layout more commonly seen on electric archtops of the era than flat-top acoustics.

• The Knobs: You will find two distinct styles. The early versions often featured “White Cup” knobs, while later or varied runs used the transparent “Bell” or “UFO” knobs with a reflective metal plate underneath (often called “reflector” knobs).

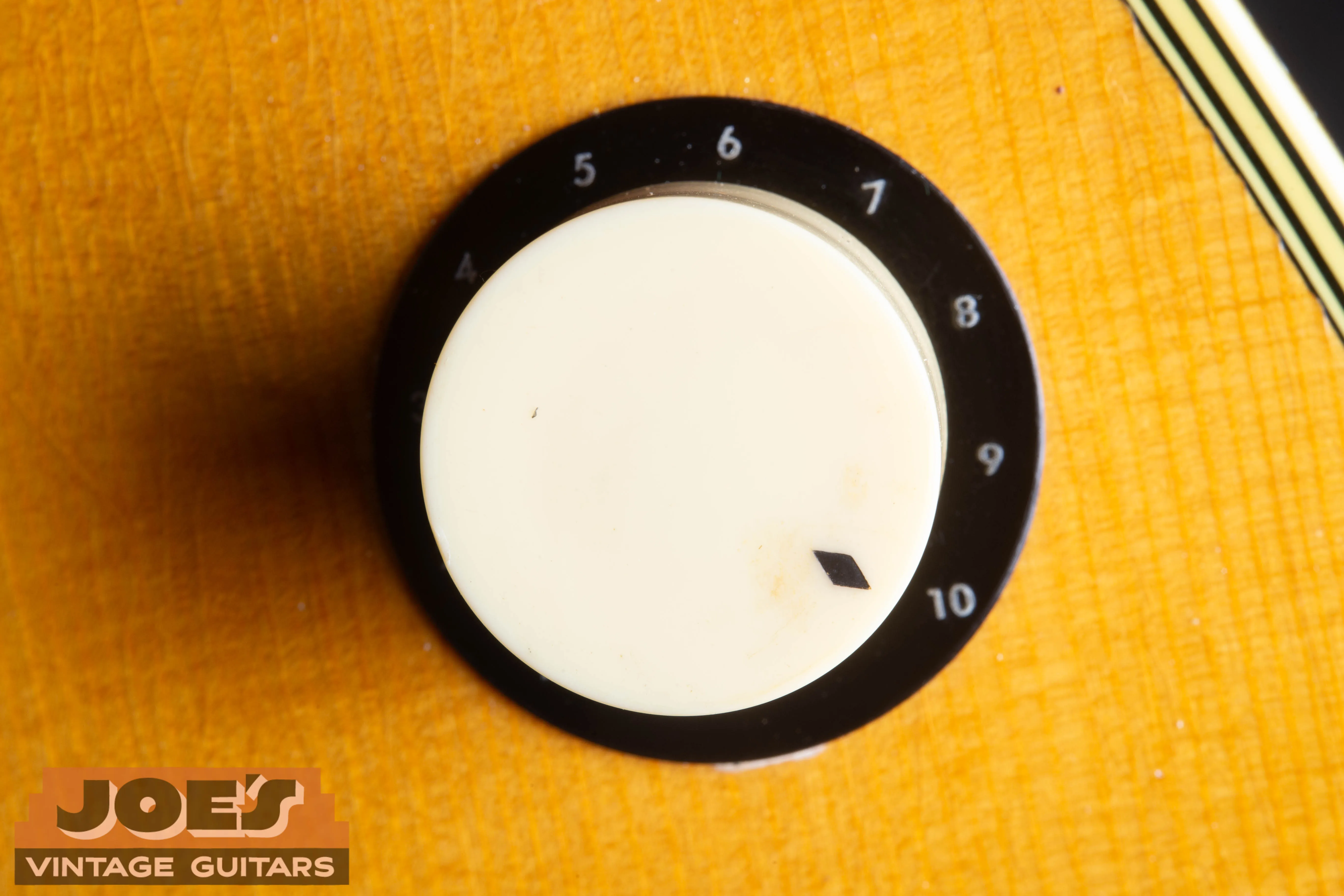

The classic white “cup” knob found on earlier E-series models. These are one of the two primary knob styles collectors look for when authenticating an original 1950s Martin D-28E or D-18E.

• The Bridge: Unlike standard Martins of the era, these bridges have two pearl dots. These aren’t just for show; they hide screws that bolt the bridge to the top to compensate for the added tension and weight of the electronics.

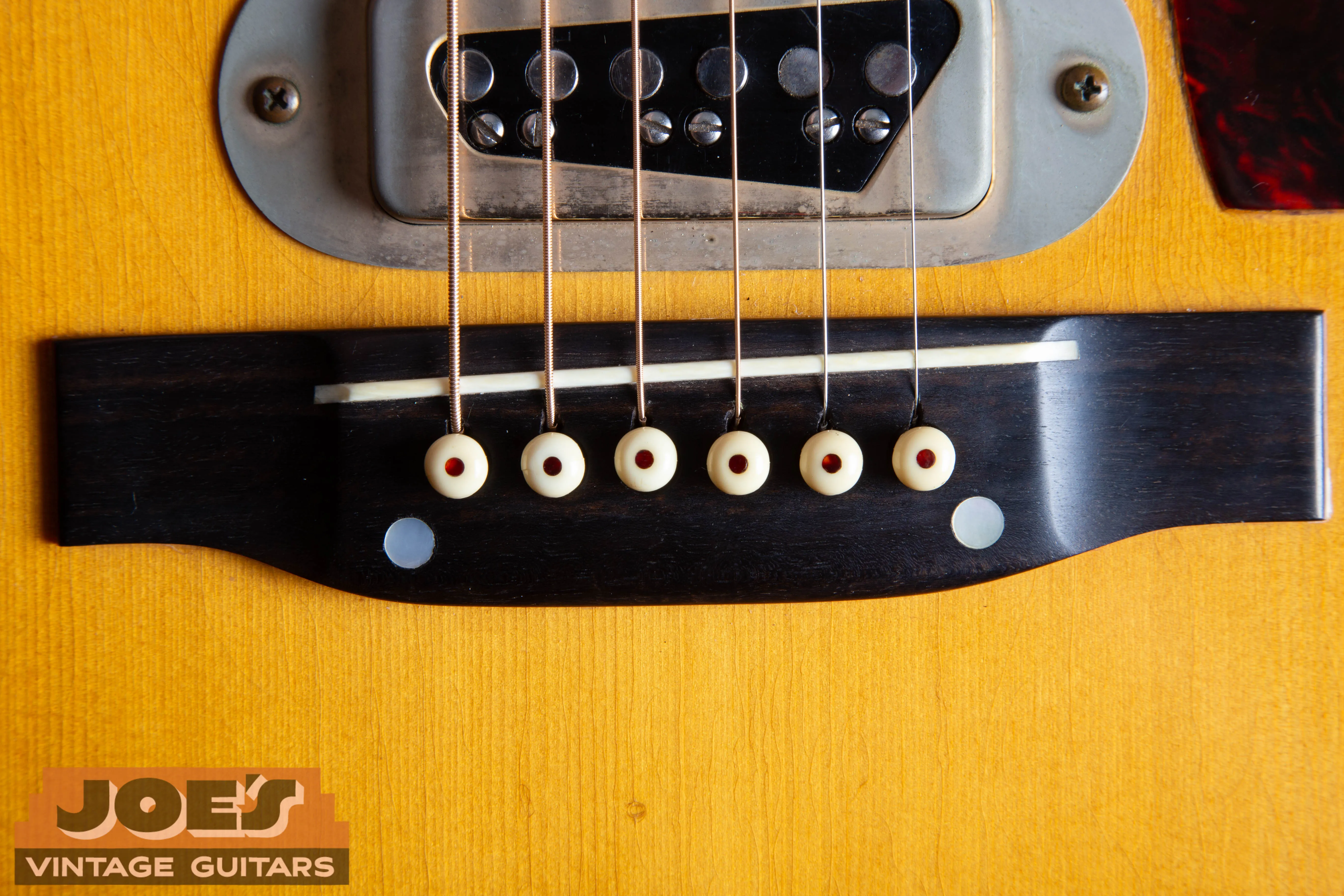

A tell-tale sign of an original E-series: the two pearl dots on the bridge. These conceal the bolts Martin used to secure the bridge to the top, compensating for the extra weight of the DeArmond electronics.

• The Output: Both models feature an output jack mounted on the side of the lower bout.

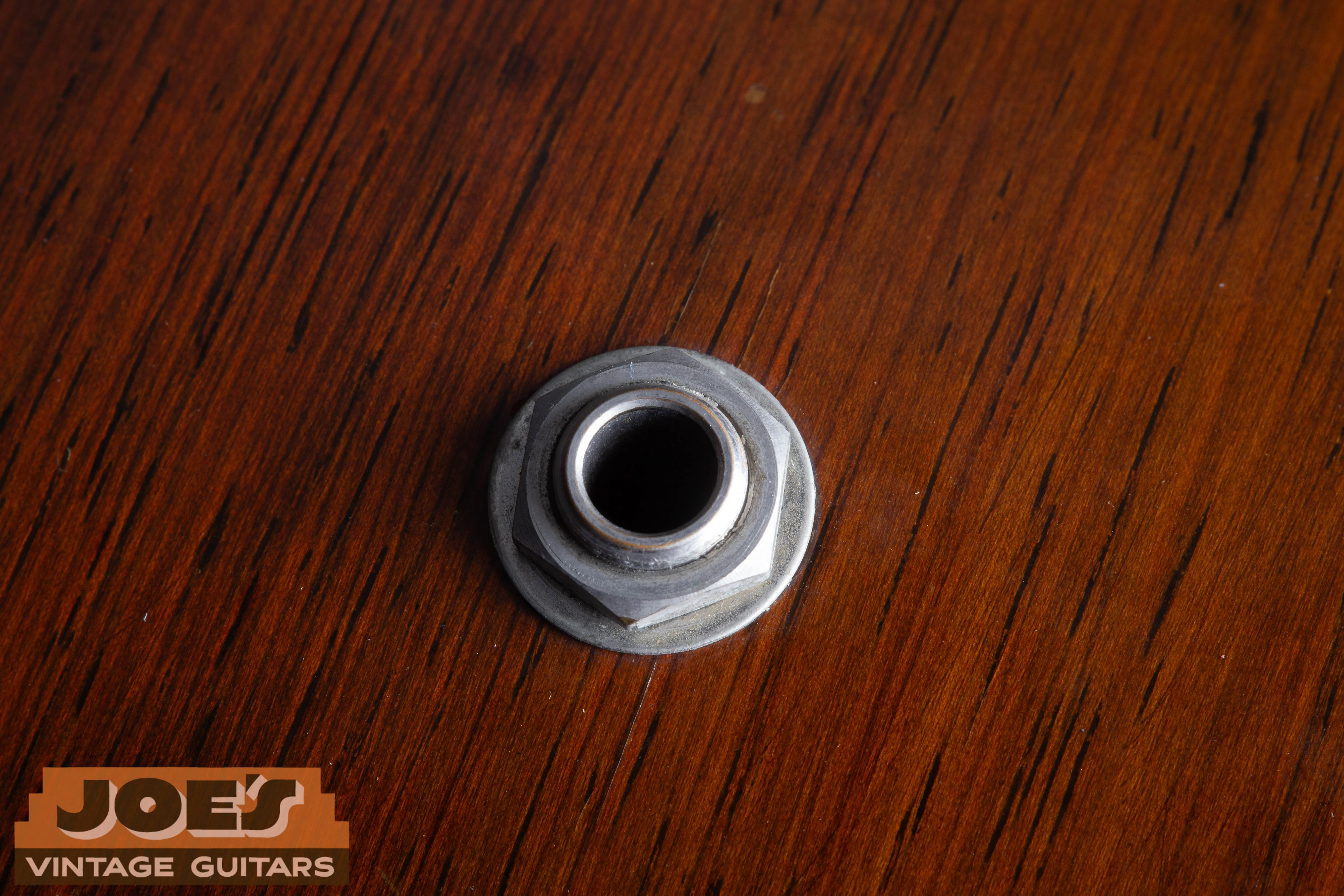

Unlike modern acoustics with endpin jacks, the D-28E features a dedicated output jack mounted on the side of the body. This factory-drilled placement is a key indicator of an original “E” series build.

• Nut Material: These came standard with traditional bone nuts, matching the high-quality appointments of the era.

D-18E vs. D-28E: Key Differences

The distinction between these two follows the classic Martin hierarchy, but with a few “electric” twists.

The Gold Hardware on the D-28E is a major visual giveaway. While the D-18E looks like a “workhorse” with its nickel DeArmond covers and mahogany grain, the D-28E looks like a flagship luxury instrument with its dark, figured Brazilian Rosewood and gold accents.

A touch of gold: The D-28E was the “luxury” model of the E-series, featuring gold-plated hardware throughout. Even with the soft, honest wear seen on these original tuners, the gold plating is a definitive way to tell a factory 28-style build apart from the nickel-appointed D-18E.

The Interior Secret: Ladder vs. X-Bracing

If you want to authenticate a real “E” series Martin, you have to look inside.

To support the heavy DeArmond pickups and the weight of the control harness, Martin abandoned their legendary X-bracing for these models. Instead, they used Ladder Bracing.

Expert Tip: This is the #1 way to spot a “Conversion.” Many people take a standard 1950s D-18 or D-28 and add the pickups later to chase the “E” look. However, a standard D-18/28 will be X-braced. If you see X-bracing through the soundhole of an “E” model, it is almost certainly a conversion, not a factory original.

Genuine E-series Martins feature ladder bracing (seen here running straight across) to support the weight of the electronics. If you see a “V” or “X” pattern, the guitar is likely a conversion rather than a factory original.

The D-28E “Checkerboard” Strip

Specific to the D-28E is the decorative “Checkerboard” or “Z-pattern” backstrip. This wood mosaic runs down the center of the Brazilian Rosewood back. While standard D-28s of this era also had backstrips, the combination of this aesthetic with the ladder bracing and the factory-drilled holes for the volume/tone pots is what defines an original D-28E.

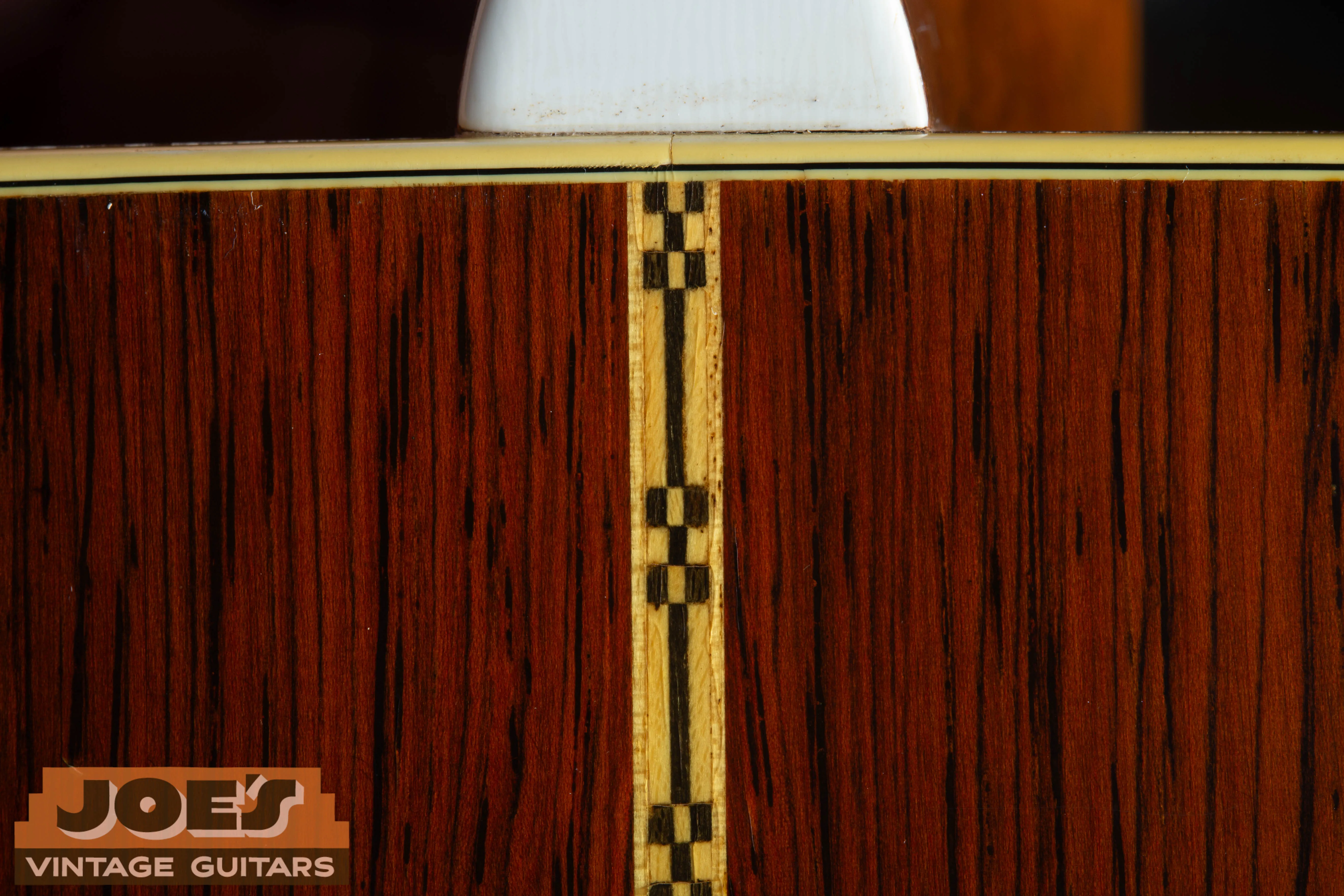

The intricate “checkerboard” backstrip is a signature aesthetic of the D-28E’s Brazilian Rosewood back. When authenticating, remember that while this is standard for the 28, the D-18E features a clean, mahogany back with no center striping.

Authentication Checklist

1. Check the Bracing: Look for ladder bracing through the soundhole.

2. Inspect the Bridge: Look for the two pearl dots indicating the bridge is screwed down.

3. The Side Jack: Ensure the output jack is side-mounted and professionally finished.

4. The Labels: Check for the “E” designation on the neck block stamp.

5. Pot Dates: If possible, check the dates on the potentiometers; they should date to 1958 or 1959.
