Introduction & Context
The Fender Jazzmaster debuted in late 1958 as the most expensive and feature-rich guitar in the Fender lineup — a deliberate attempt by Leo Fender to capture the jazz market with a guitar that felt different from the Telecaster and Stratocaster in every meaningful way. It was the first Fender production guitar with a rosewood fingerboard, the first with an offset-waist body, and the first with the elaborate dual-circuit rhythm/lead switching system that remains one of the most distinctive electronics setups in electric guitar history.
Jazz guitarists largely ignored it, preferring Gibson hollowbodies. But the Jazzmaster found an enthusiastic audience among surf musicians in the early 1960s, who prized its floating tremolo and bright, resonant tone. By the mid-1960s it had become a fixture on California stages, and decades later it would be adopted by indie, shoegaze, and alternative players who valued its tonal complexity and unconventional feel.
This guide documents every specification change the Jazzmaster underwent between its 1958 introduction and 1971, covering the full pre-CBS golden era and the early CBS period. Understanding these changes precisely is essential for accurate dating, authentication, and valuation.
Pre-CBS (1958–early 1965): Built under Leo Fender's ownership at the Fullerton, California factory. Generally considered the most desirable and collectible production period. Guitars from this era command significant premiums over later examples.
CBS Era (January 1965–1971): CBS Corporation acquired Fender on January 5, 1965. Changes began immediately but were gradual — the first truly CBS-influenced guitars didn't appear until mid-to-late 1965. By 1967–68 the character of the instrument had shifted substantially.
Body, Finish & Controls
Body Construction
The Jazzmaster body is alder throughout the production run — the same tonewood used on the Stratocaster from 1956 onward. The offset-waist design is the Jazzmaster's most distinctive visual feature: the upper and lower bouts are offset from each other rather than symmetrical, creating a body that balances differently when playing seated compared to a Strat or Tele. The body has a single forearm contour cut on the upper bass side — less pronounced than the Stratocaster's double contour.
Body dimensions remained essentially constant throughout 1958–1971. The body is slightly larger and heavier than a Stratocaster.
Standard Finish
The standard production finish throughout the entire run was 3-color sunburst — yellow center transitioning to orange then dark brown/black at the edges. The sunburst always received a white pickguard (see Section 04). Custom colors were available at an additional charge of 5% over list price; these are covered in detail in Section 05.
The finish medium was nitrocellulose lacquer throughout the pre-CBS era. CBS-era guitars transitioned to polyester finish starting approximately 1967–68. Poly finishes are thicker, more resistant to checking, and have a distinctly different aging character than nitro — a meaningful dating and authenticity indicator.
The Dual-Circuit Control System
The Jazzmaster's electronics are its most complex feature — and the one most likely to be misunderstood or partially non-functional on older examples. The guitar has two entirely separate circuits operated by a single slide switch on the upper horn.
- Rhythm circuitActivated by pushing the upper-horn slide switch toward the neck. Engages only the neck pickup and bypasses all lower-bout controls entirely. The rhythm circuit has its own volume and tone roller wheels on the upper bout — preset to a warm, dark "jazz" tone. Designed to allow a guitarist to set a rhythm tone independently and flip back to it instantly.
- Lead circuitThe standard playing position with the slide switch pushed away from the neck. Uses the lower bout controls — master volume and tone knobs — and a 3-way toggle selecting bridge pickup, both pickups, or neck pickup.
- Output jackAn angled jack on the lower bout with a distinctive oval chrome jack plate — unique to the Jazzmaster and Jaguar. The angled position makes cable routing more natural when playing seated.
- PotsLead circuit uses 1MΩ potentiometers — unusually high value, contributing to the Jazzmaster's bright, open tonal character in lead mode. Rhythm circuit uses 50kΩ or 1MΩ pots depending on year.

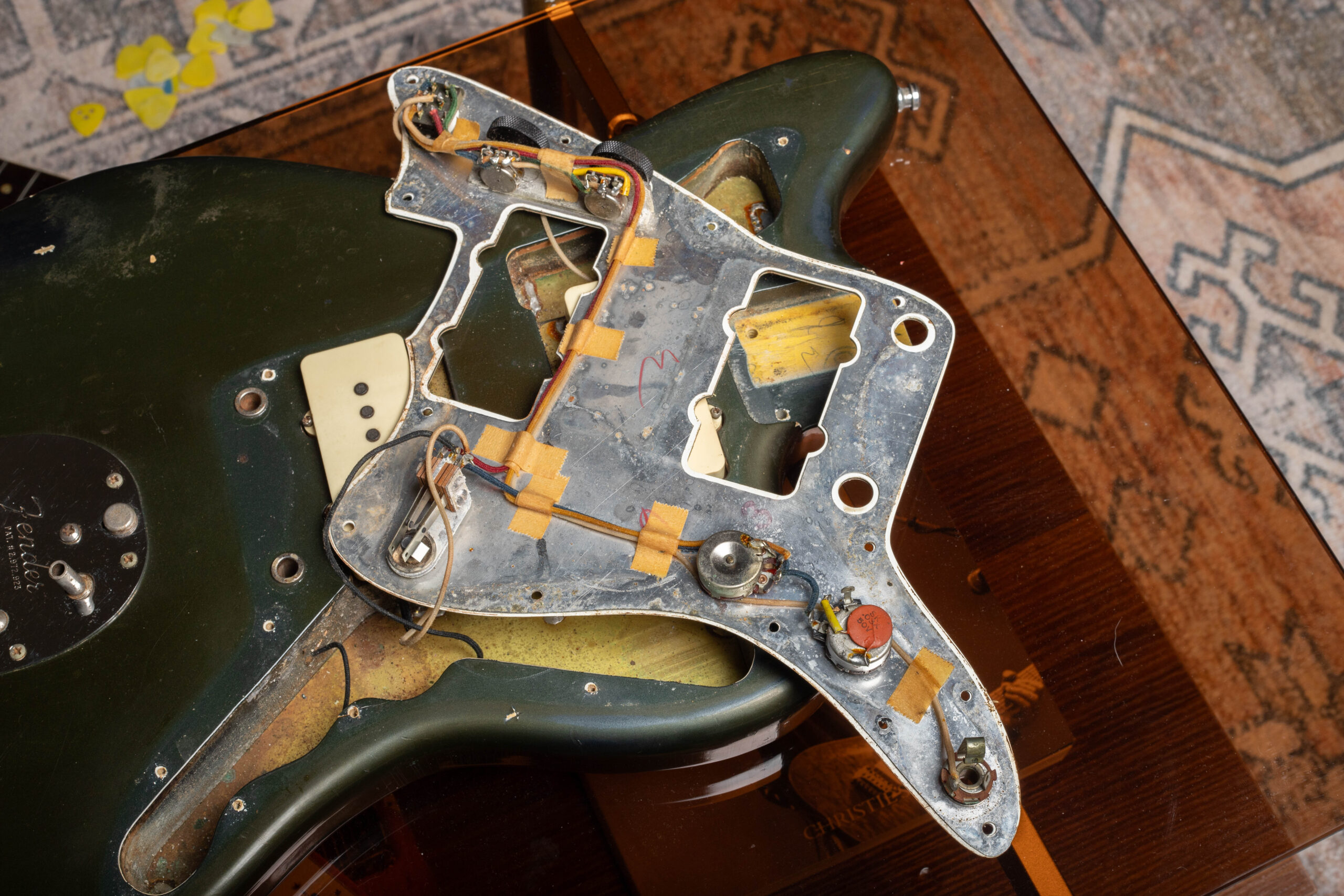

- Shielding The pickup and electronics cavities are lined with aluminum shielding — an extension of the gold anodized pickguard's original shielding function. This shielding remained after the pickguard material changed. It is part of the hum-reduction system along with the reverse-wound/reverse-polarity pickup configuration.
Knob Evolution

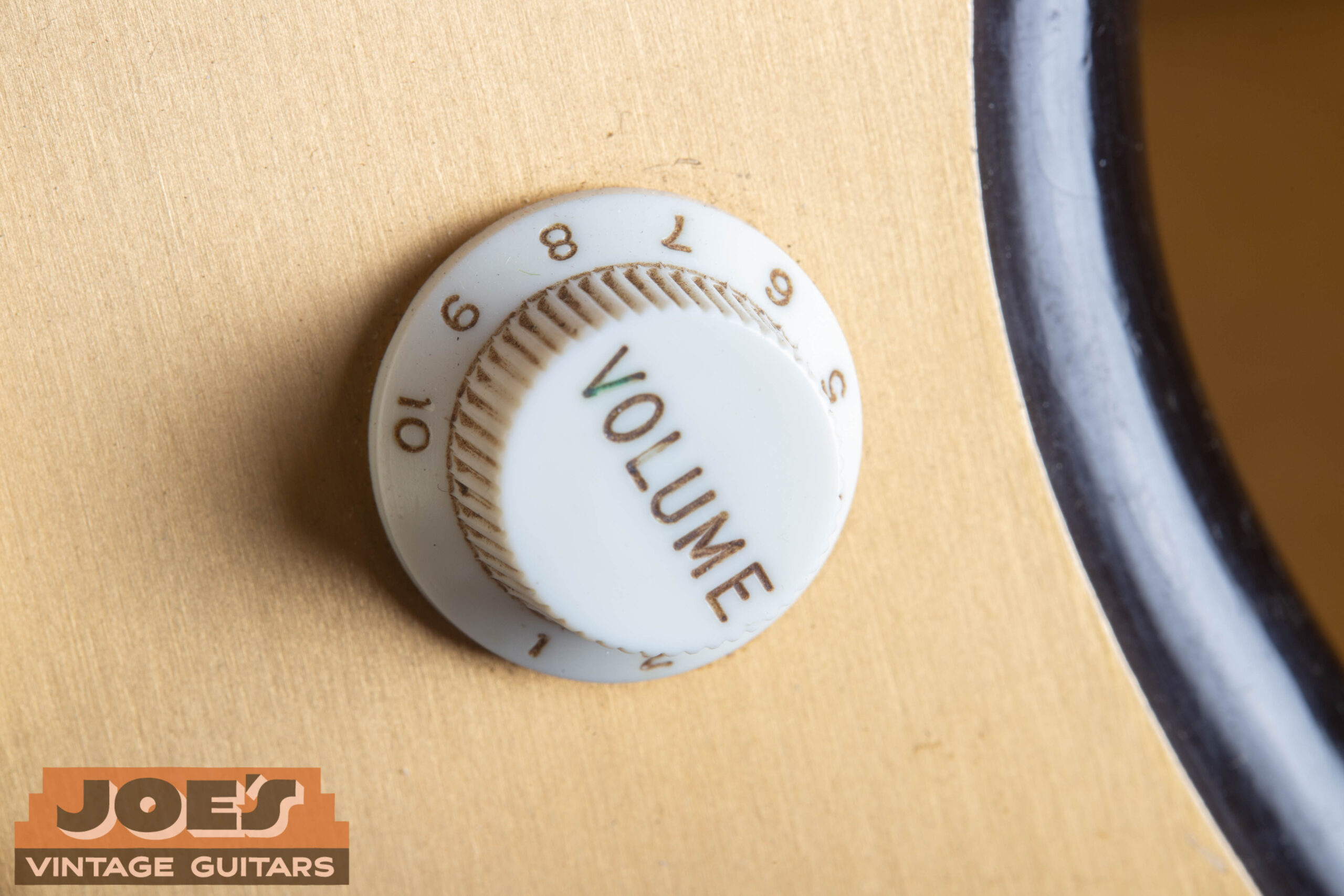

- 1958–mid 1965Stratocaster-style knobs — the standard white dome knobs used across the Fender line, with a flat top and chrome-tipped set screw. Used on the lead circuit volume and tone controls.

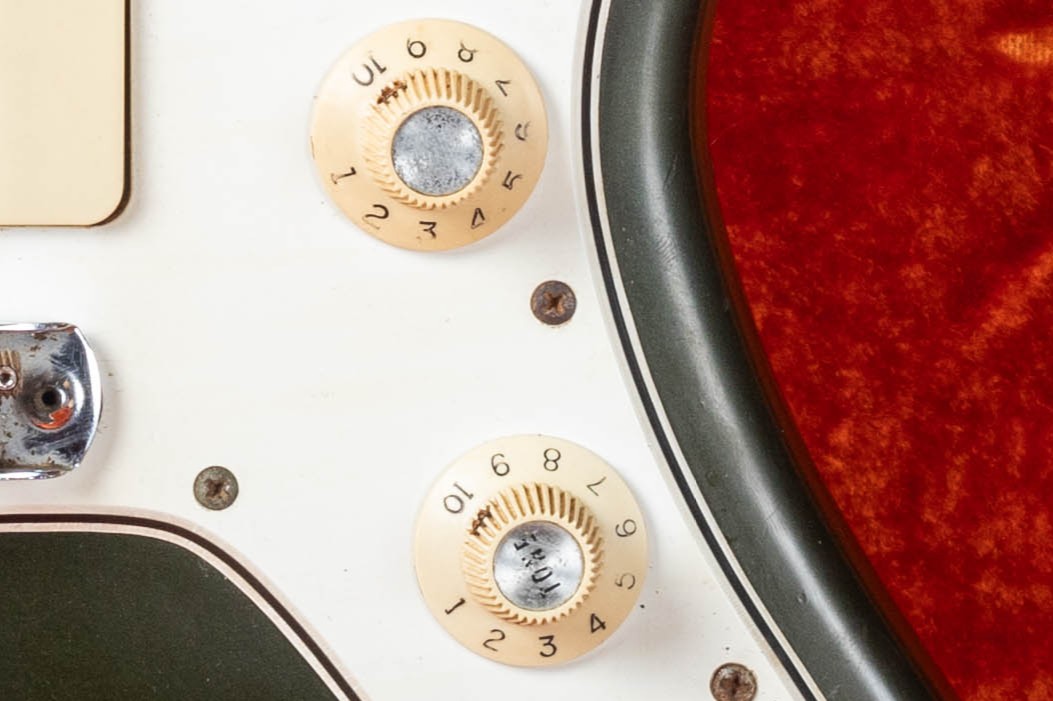

- Mid 1965 onward"Witch hat" knobs — a distinctive Jazzmaster-specific knob style: white plastic with a chrome domed top, taller and thinner than the Strat-style dome knob. Introduced mid-1965 and immediately identifiable as a CBS-era indicator. The name comes from their silhouette resemblance to a witch's hat.

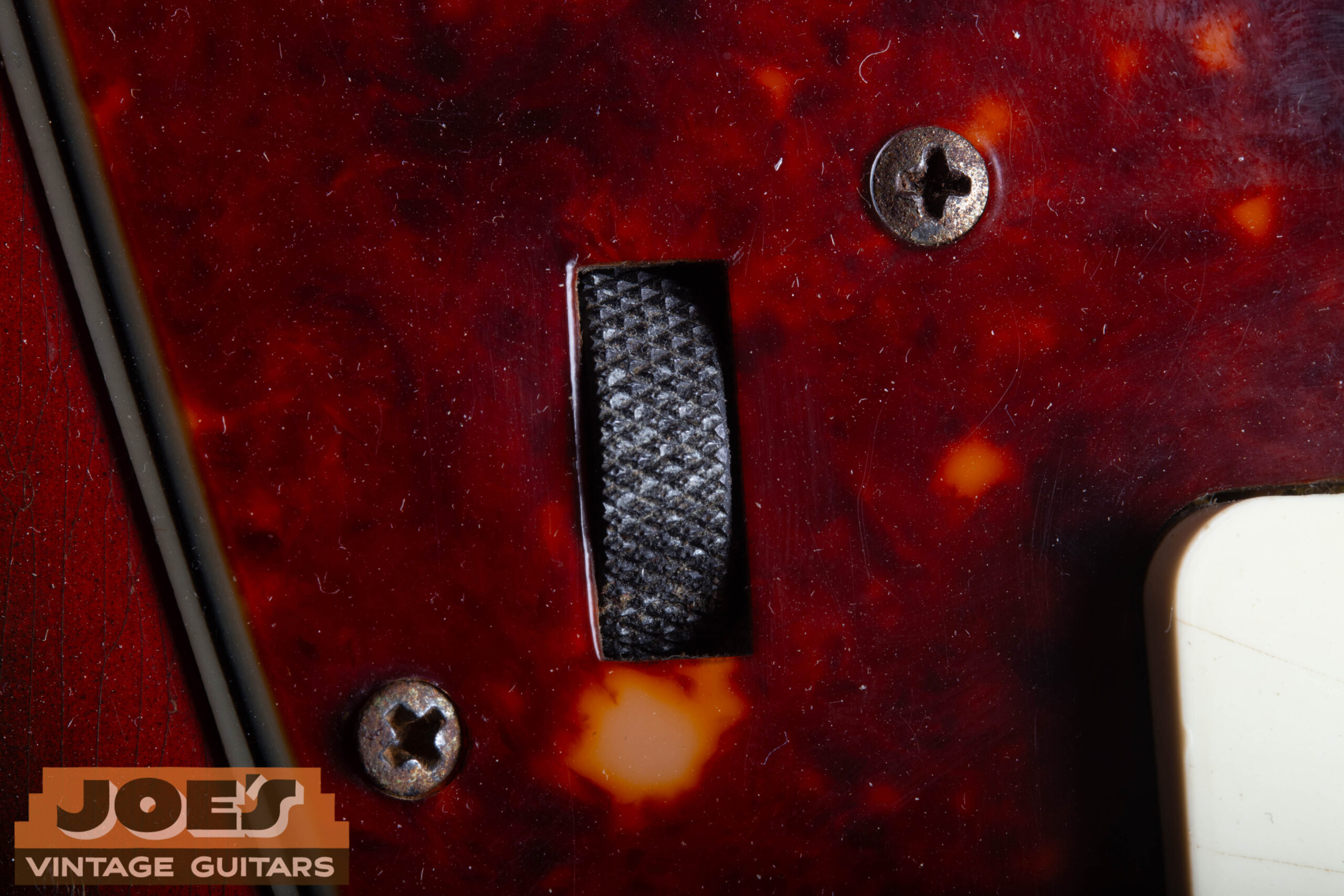

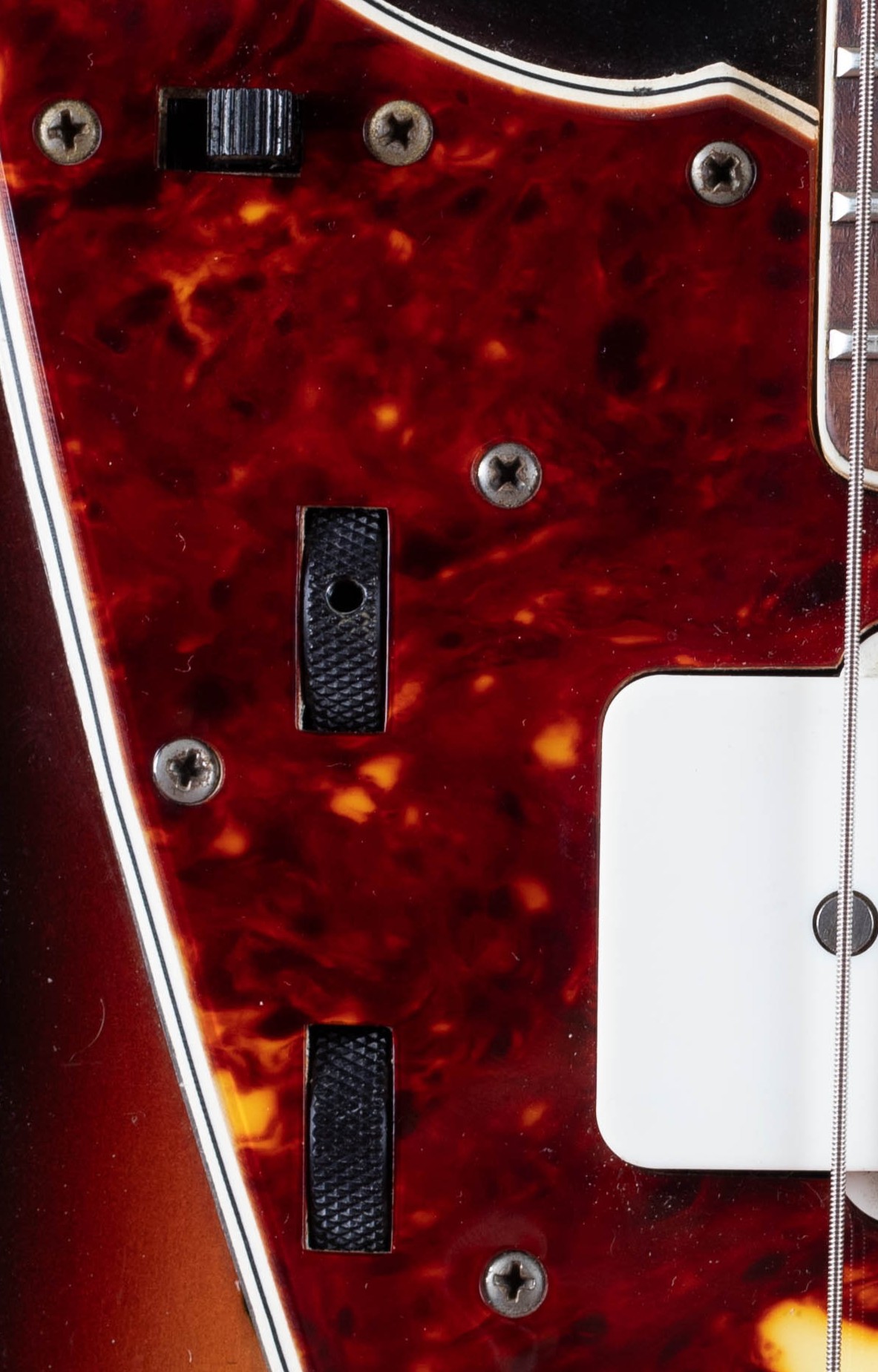

- Rhythm rollersThe tone and volume roller wheels on the upper bout remained consistent throughout production — a chrome-edged roller design unchanged from 1958 to 1971.
Neck, Fingerboard & Inlays
A Historic First: The Jazzmaster and the Rosewood Fingerboard
The Jazzmaster holds a significant place in Fender history: it was the first Fender production guitar to feature a rosewood fingerboard, introduced in 1958. The Telecaster and Stratocaster followed with rosewood options in 1959. This makes a 1958 Jazzmaster the earliest rosewood-necked Fender that can be purchased — a historical distinction that resonates with serious collectors.
Slab vs. Veneer Rosewood — The Most Important Dating Point
The single most significant neck specification change in the Jazzmaster's history is the transition from slab to veneer rosewood fingerboard. This is the first thing any knowledgeable buyer checks, and it divides the pre-CBS era into two clearly defined periods.
- Slab board
1958–early 1962A thick, flat-bottomed rosewood slab approximately 4.8mm deep, glued onto a flat-milled maple neck. The flat bottom is the defining characteristic — visible at the headstock end where the rosewood meets the nut. Brazilian rosewood typically used. Commands a significant premium over veneer examples. The Jazzmaster was the first Fender to get the slab board and, notably, also the first to transition away from it. - Veneer board
Spring 1962 onwardA thin curved veneer (~2mm) whose underside follows the radius of the neck, requiring a curved top on the neck blank. The Jazzmaster was the first Fender model to make this switch — beginning in approximately spring 1962, ahead of the Stratocaster and Telecaster transitions. Veneer boards continued through end of production.
The Jazzmaster switched to veneer rosewood in spring 1962 — several months before the Stratocaster (mid-1962) and the Telecaster (1959 had already moved to slab; veneer came later). This makes the Jazzmaster's fingerboard transition an important reference point for understanding the overall Fender production timeline.
Fingerboard Inlay Evolution
The Jazzmaster went through three distinct inlay periods between 1958 and 1971, each with a specific character that serves as an immediate dating indicator:

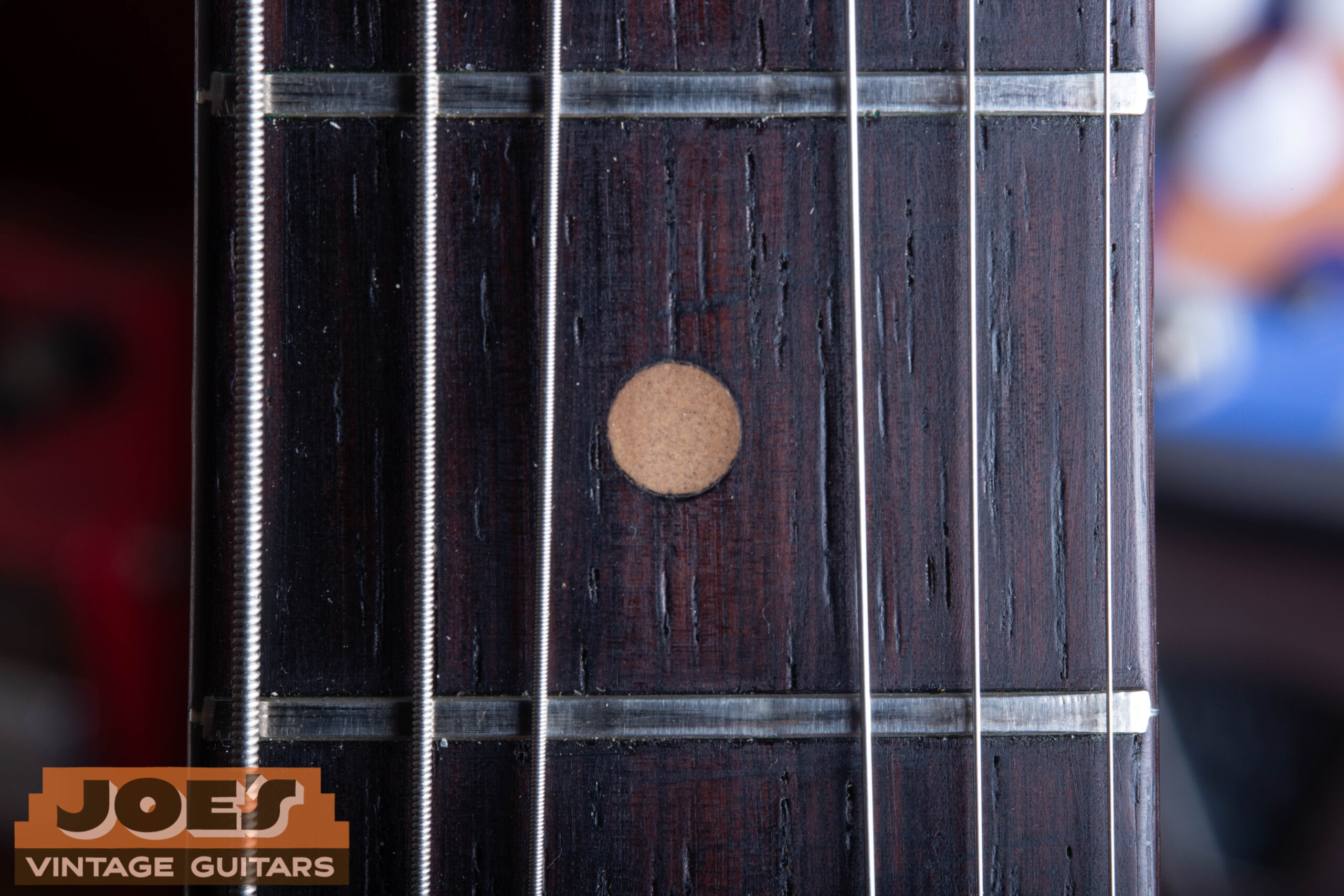

- Clay dots
1958–late 1964A light brown, chalky dot with a dull, non-reflective matte surface. "Clay" is collector terminology — the material is actually a composite, not actual clay, but the warm brown color and complete absence of shine is distinctive and unmistakable. Clay dots are the defining feature of the most collectible pre-CBS Jazzmasters. - Pearl dots

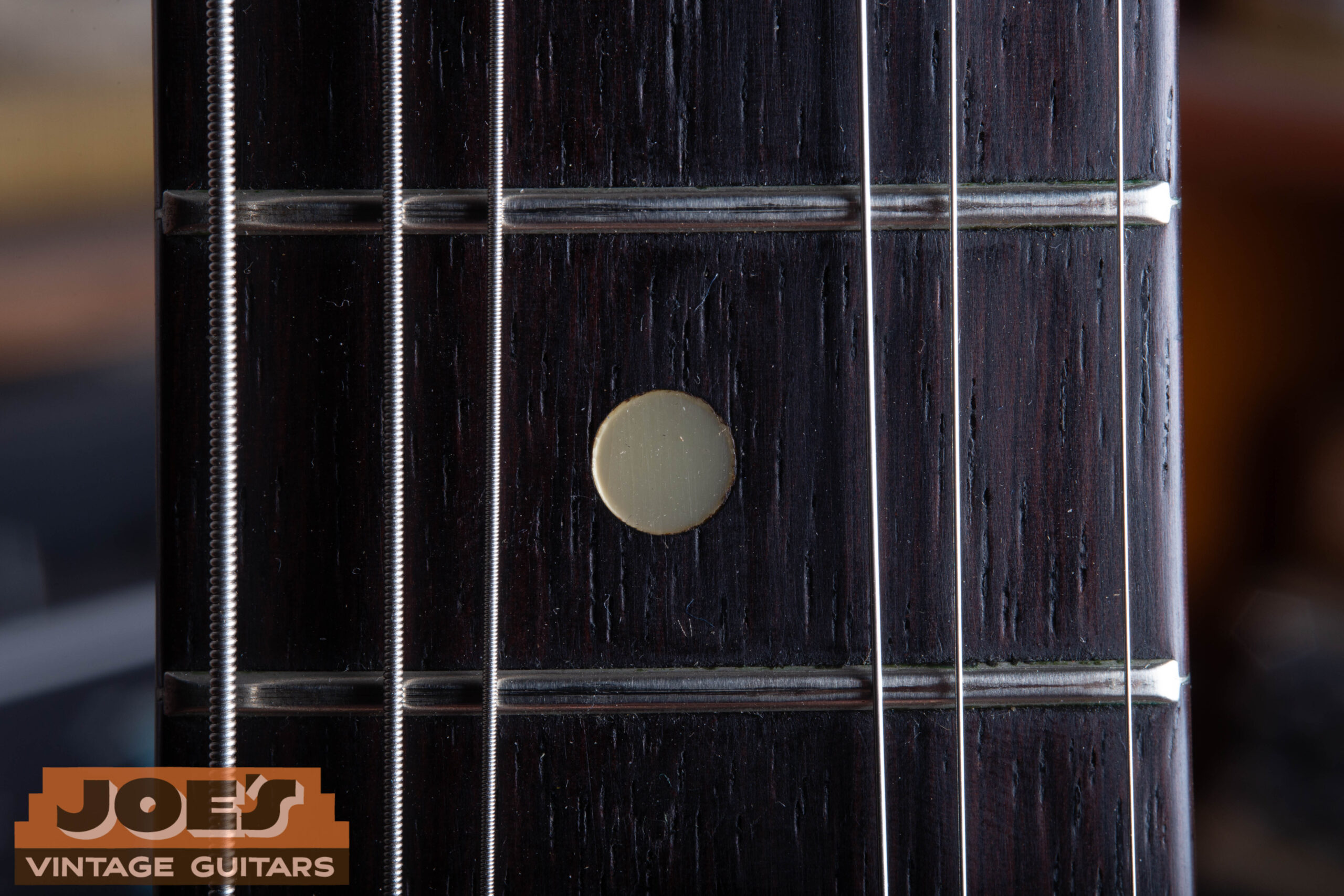

Late 1964–mid 1966Faux pearloid plastic dots — brighter, whiter, and reflective compared to clay. The transition happened late 1964, making this a "transition era" specification. These appeared alongside the transition logo and are associated with the late pre-CBS period. - Block inlays

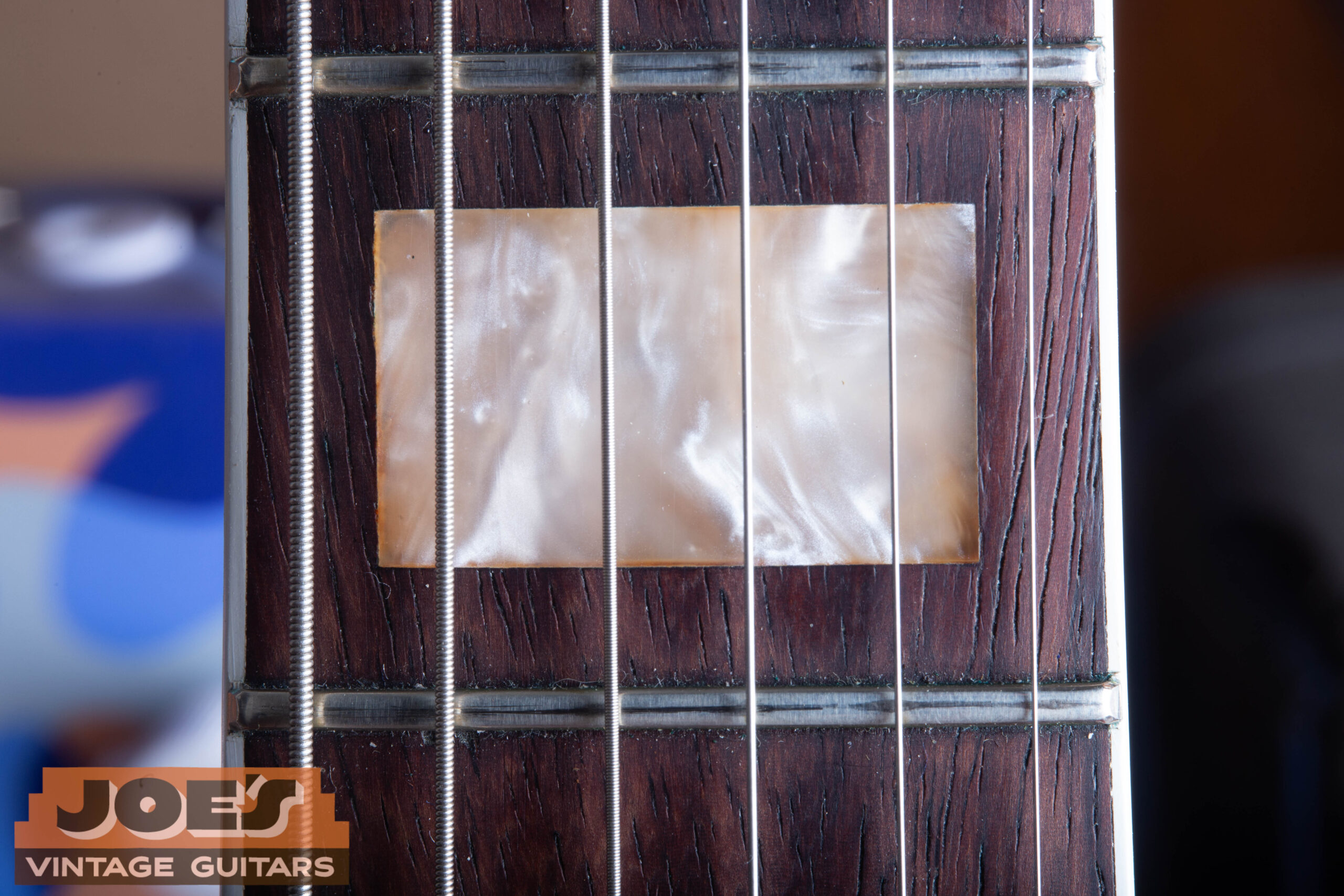

Mid 1966 onwardLarge rectangular pearloid block inlays replaced the dots in approximately mid-1966, alongside the introduction of neck binding. Block inlays continued through the end of the 1971 production run. This is the definitive CBS-era Jazzmaster neck appearance.

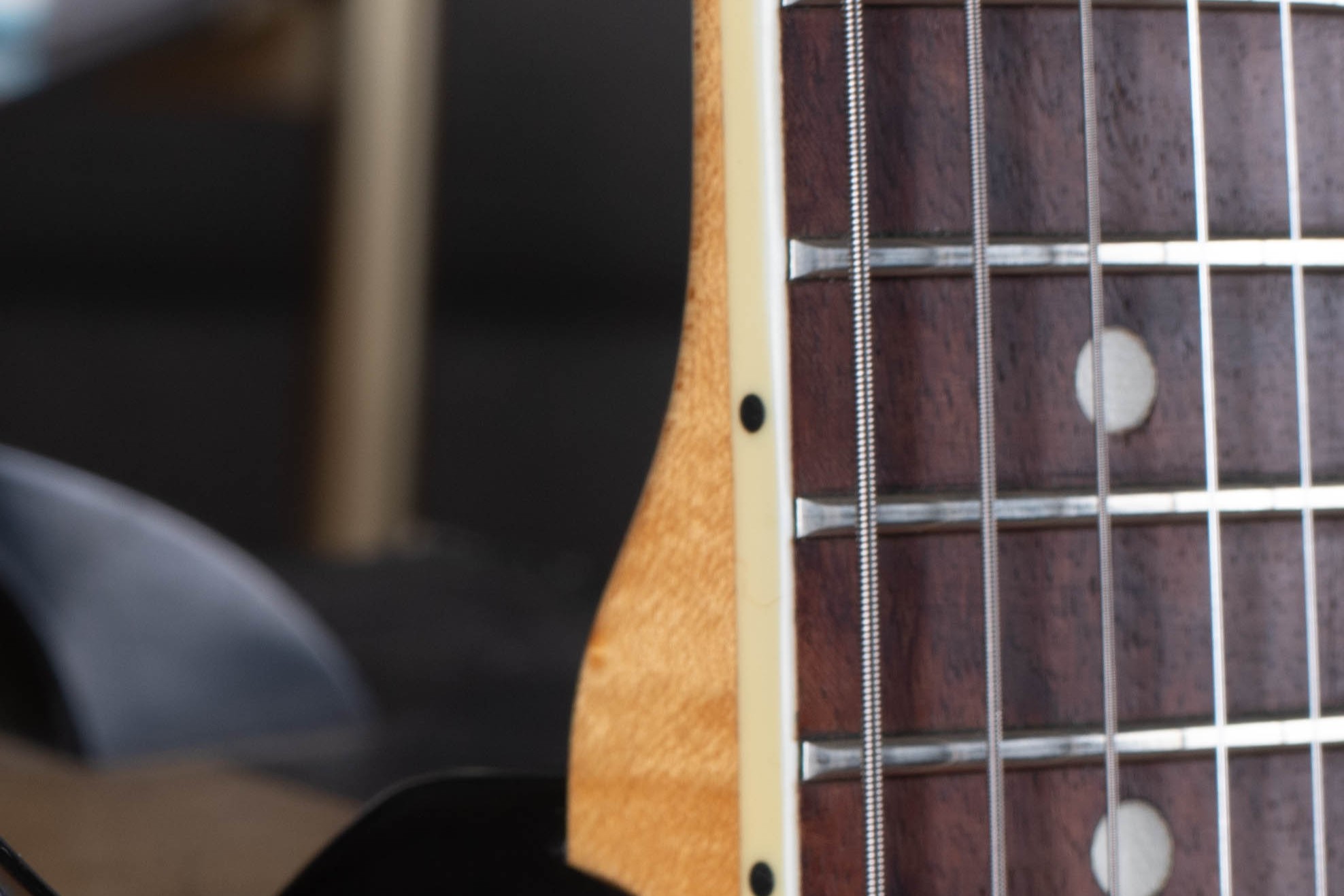

Neck Binding
Neck binding — a white plastic binding strip applied to the fingerboard edges — was introduced on the Jazzmaster in late 1965, coinciding with the early CBS-era changes. The bound neck with pearloid dots lasted only briefly before block inlays arrived in mid-1966. All bound-neck Jazzmasters are CBS-era instruments. An unbound neck is correct for all pre-CBS examples and for CBS-era guitars through late 1965.
Truss Rod Access
Throughout the entire 1958–1971 production run, the Jazzmaster truss rod adjusts at the body end of the neck (the heel), not at the headstock. This requires removing the neck to access the adjustment nut. Headstock truss rod access did not appear on Fender instruments until 1971. Any claimed pre-1971 Jazzmaster with headstock truss rod access has a non-original neck.

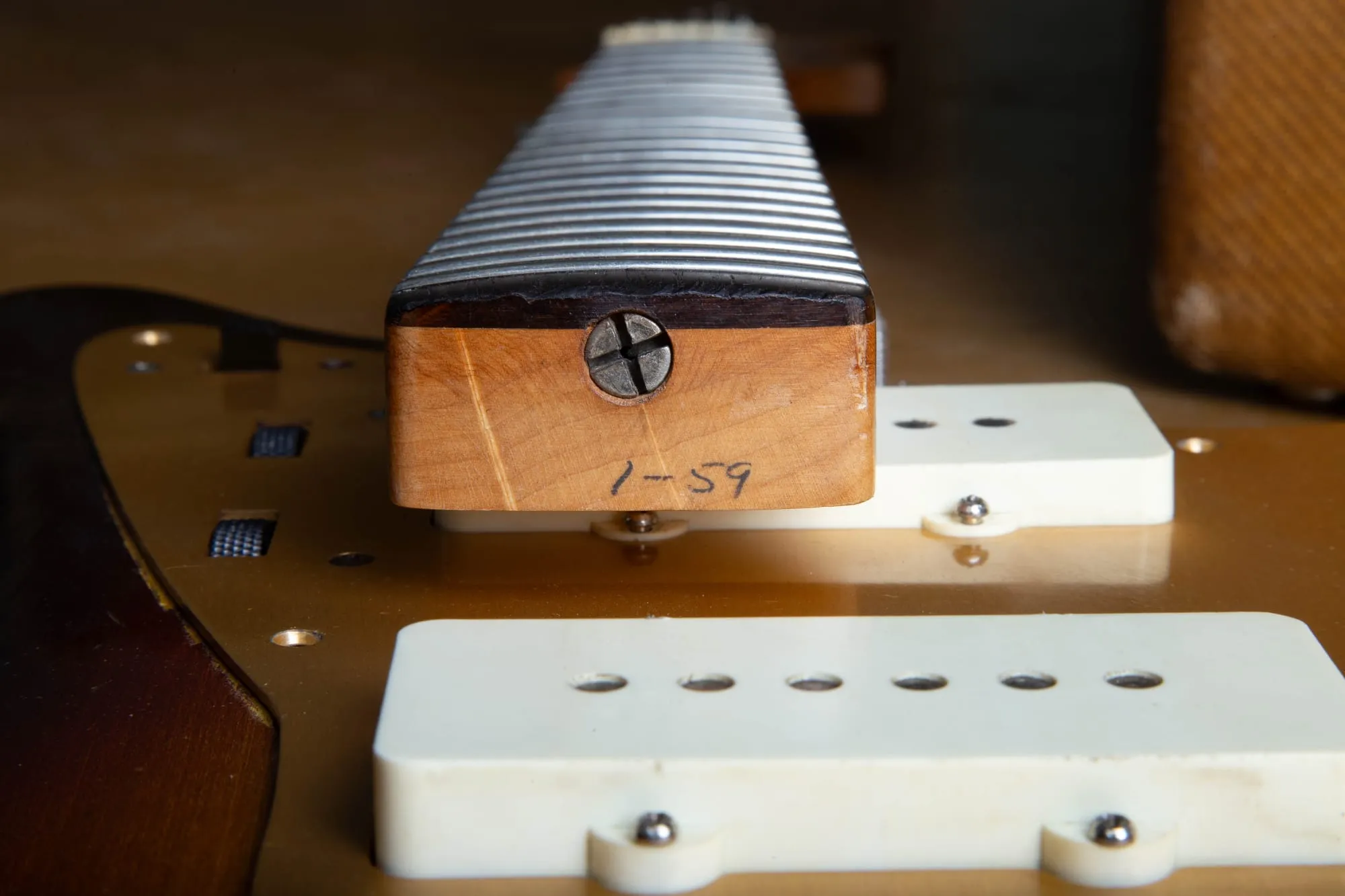

Neck Dating
Necks are dated directly on the wood at the heel. The method changed over the production run:

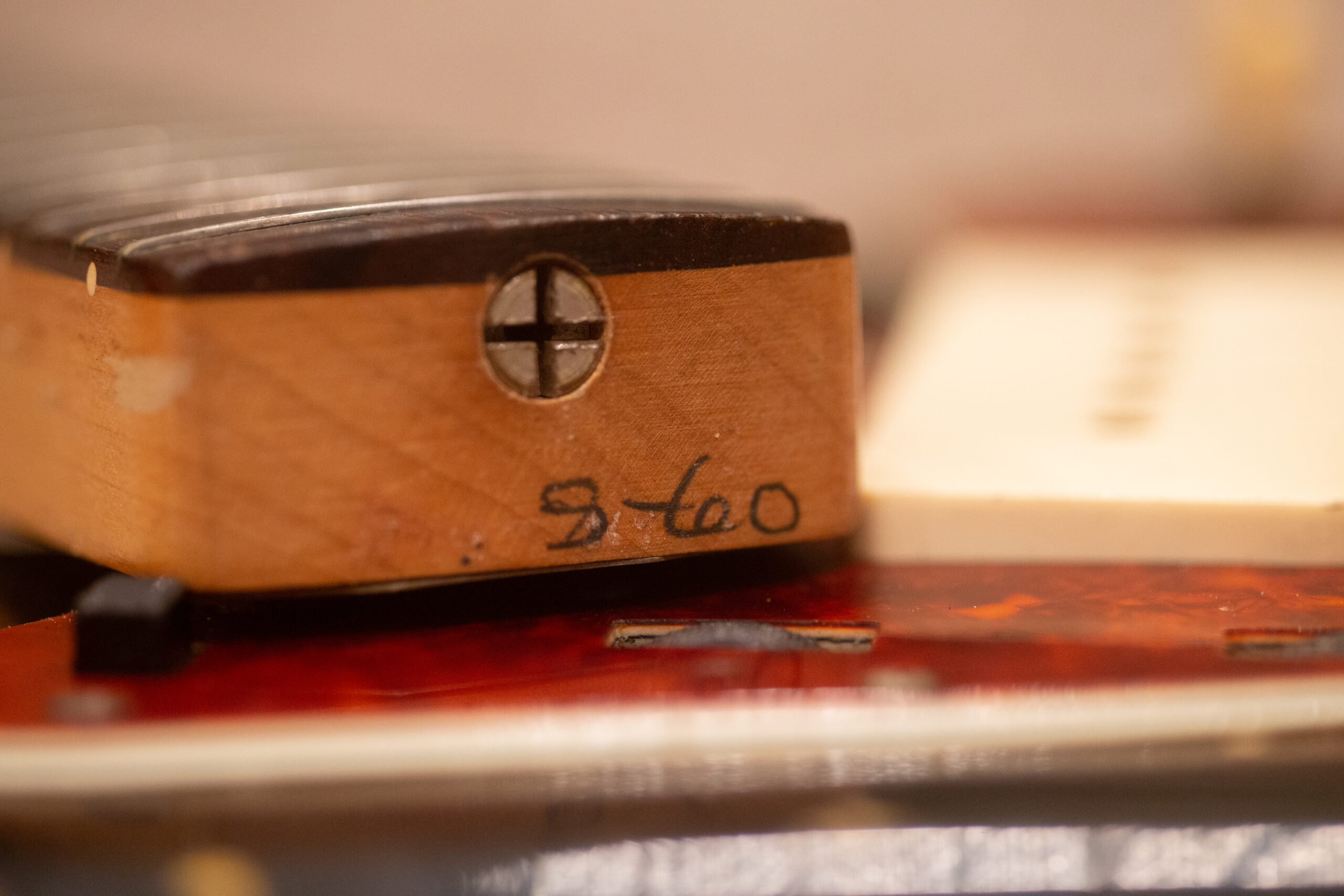

- 1958–1962Pencil-written month and year at the heel butt — handwritten by the neck builder. Format: "2-59" for February 1959. Note: many mid-1959 to 1960 necks have no date at all.

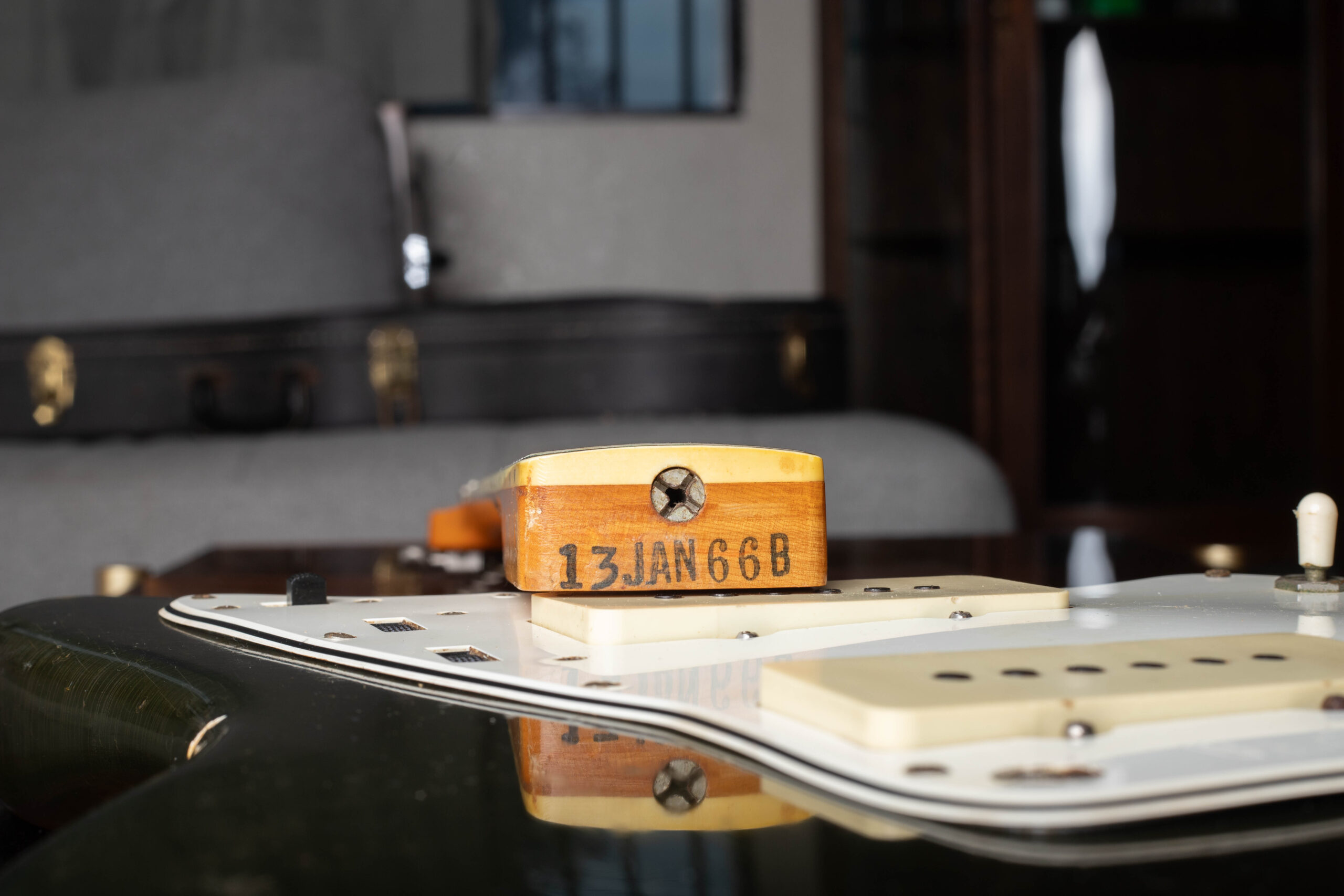

- Mid 1962 onwardRubber-stamped code with more information. Format: "4JAN63B" where 4 = Jazzmaster model number, JAN = January, 63 = 1963, B = standard nut width (1-5/8").
Pickguards: The Full Story
The Jazzmaster pickguard is one of the guitar's most visually distinctive and historically interesting features. Its large size — covering most of the body top — integrates the rhythm circuit controls as part of an aluminum-shielded upper plate, making it unlike any other Fender pickguard. The material and style changed three times between 1958 and 1971.

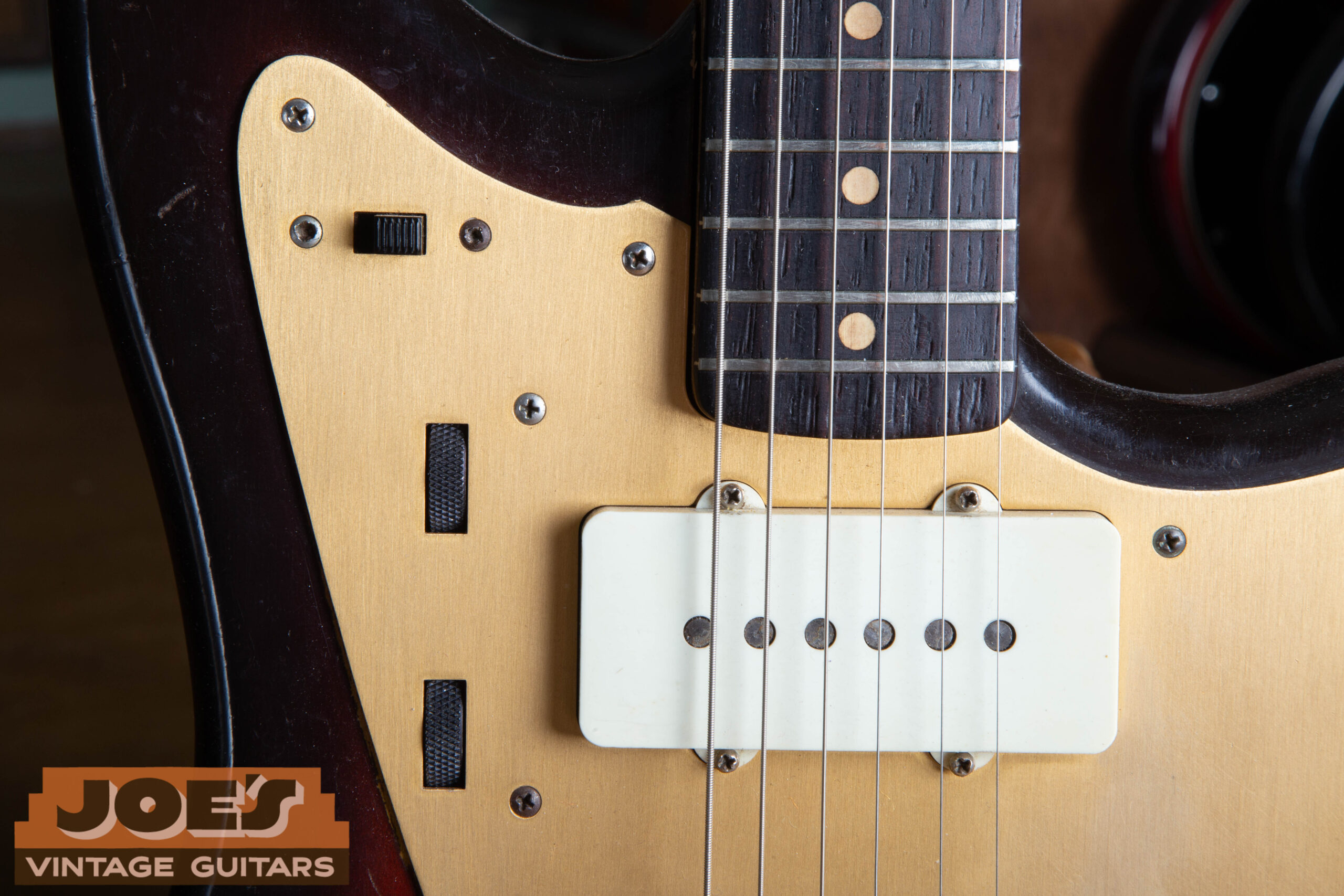

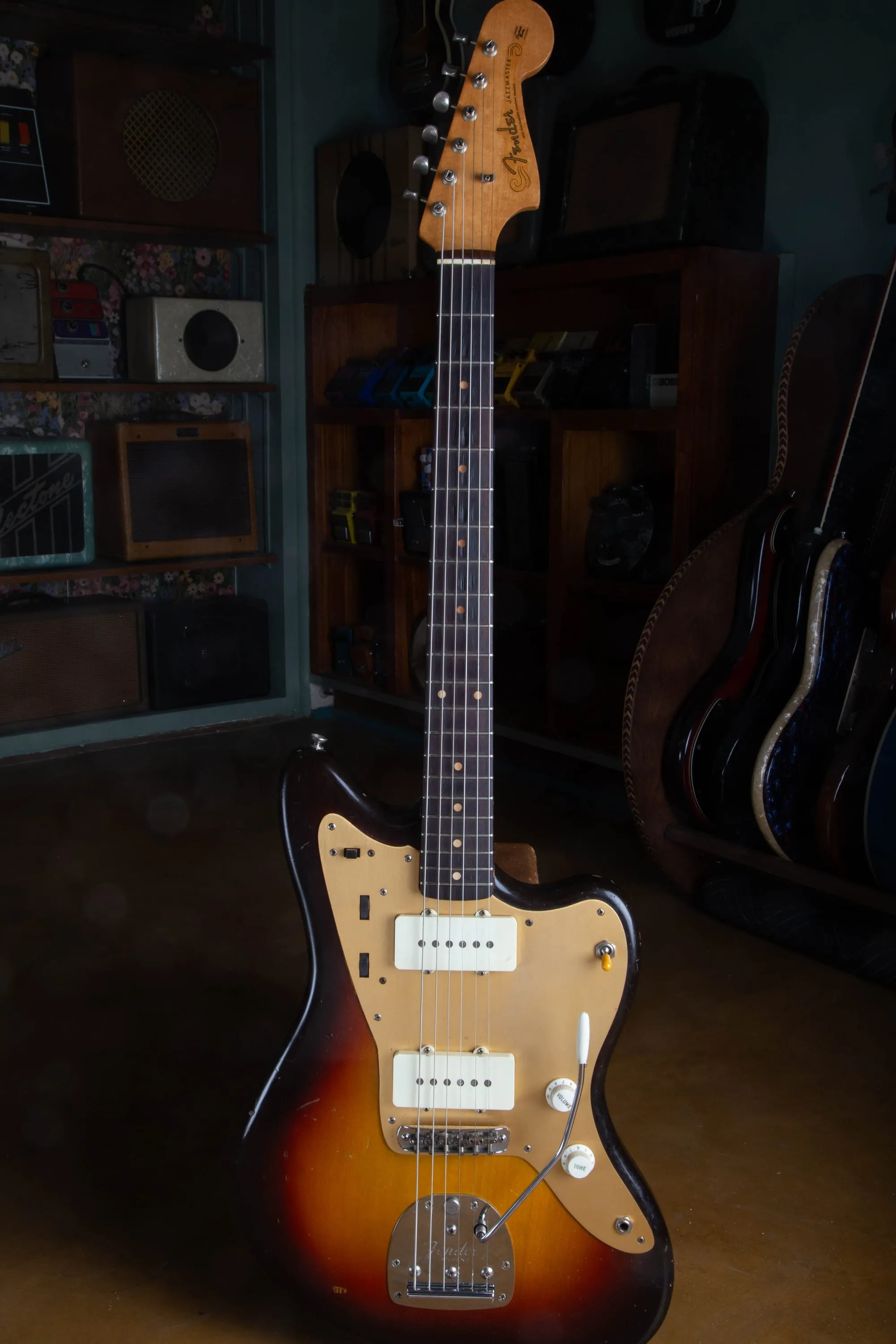

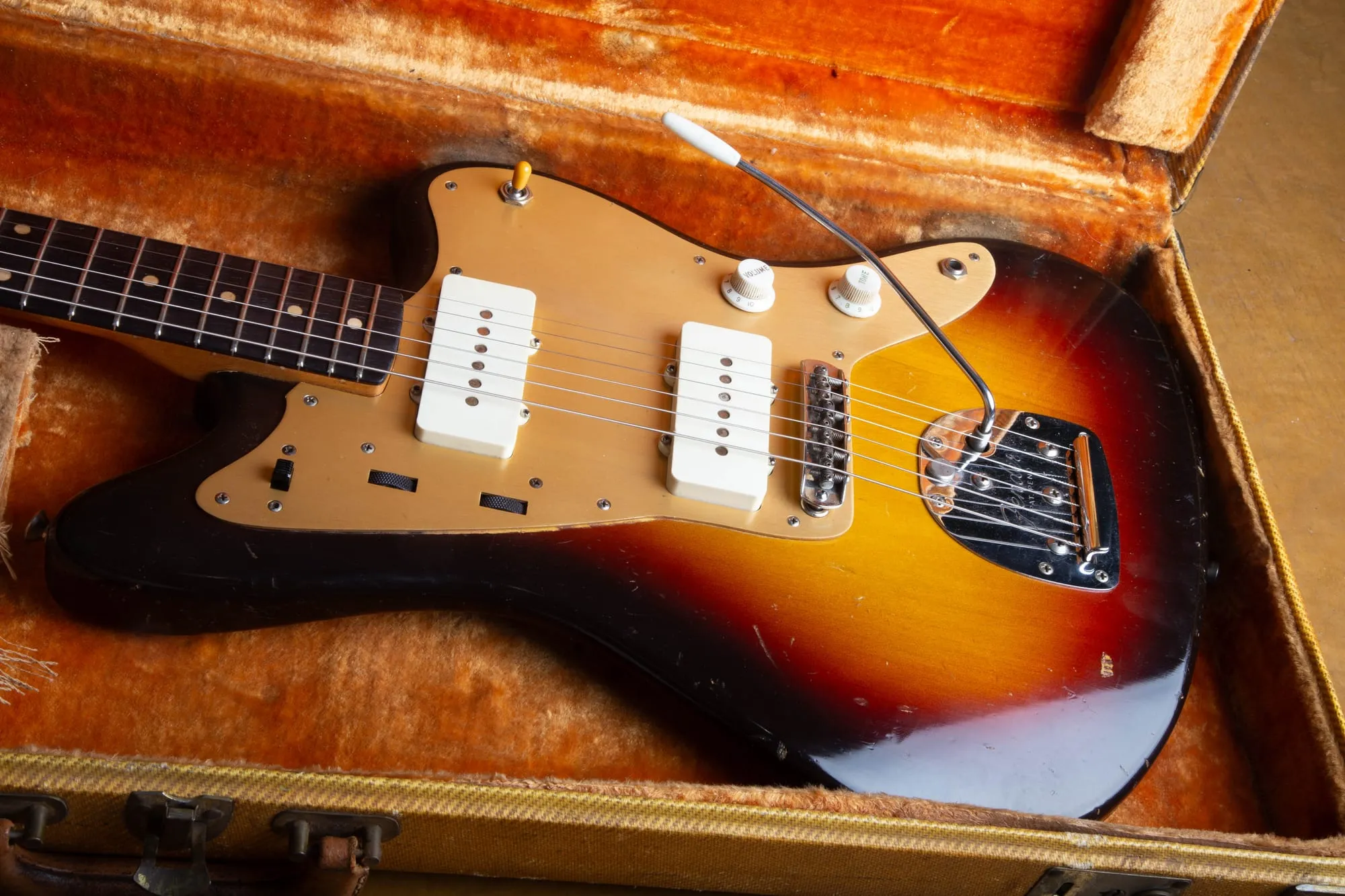

Era 1: Gold Anodized Aluminum (1958–mid 1959)
The first Jazzmasters carried a gold anodized aluminum pickguard — a continuation of the material Fender had used on student-model Musicmaster and Duo-Sonic guitars since 1956. The gold aluminum served a functional purpose beyond aesthetics: it provided significant electromagnetic shielding for the wide, hum-sensitive Jazzmaster pickups. The aluminum pickguard is secured by nine screws.
Guitars with the original gold anodized guard are known among collectors as "gold guard" Jazzmasters and are the rarest and most valuable examples. The gold guard era lasted approximately from the last quarter of 1958 through mid-1959 — roughly six to nine months of production. Gold guard Jazzmasters are found primarily in sunburst finish; some early custom colors may also have gold guards.
Because gold guard Jazzmasters command substantial premiums, replacement gold anodized guards (available from parts suppliers) are sometimes fitted to later guitars. Verify the guard with the neck heel date, pot codes, and body date — all must be consistent with 1958–early 1959 production for a genuine gold guard example.
Era 2: Celluloid Tortoiseshell (Mid 1959–Late 1964)

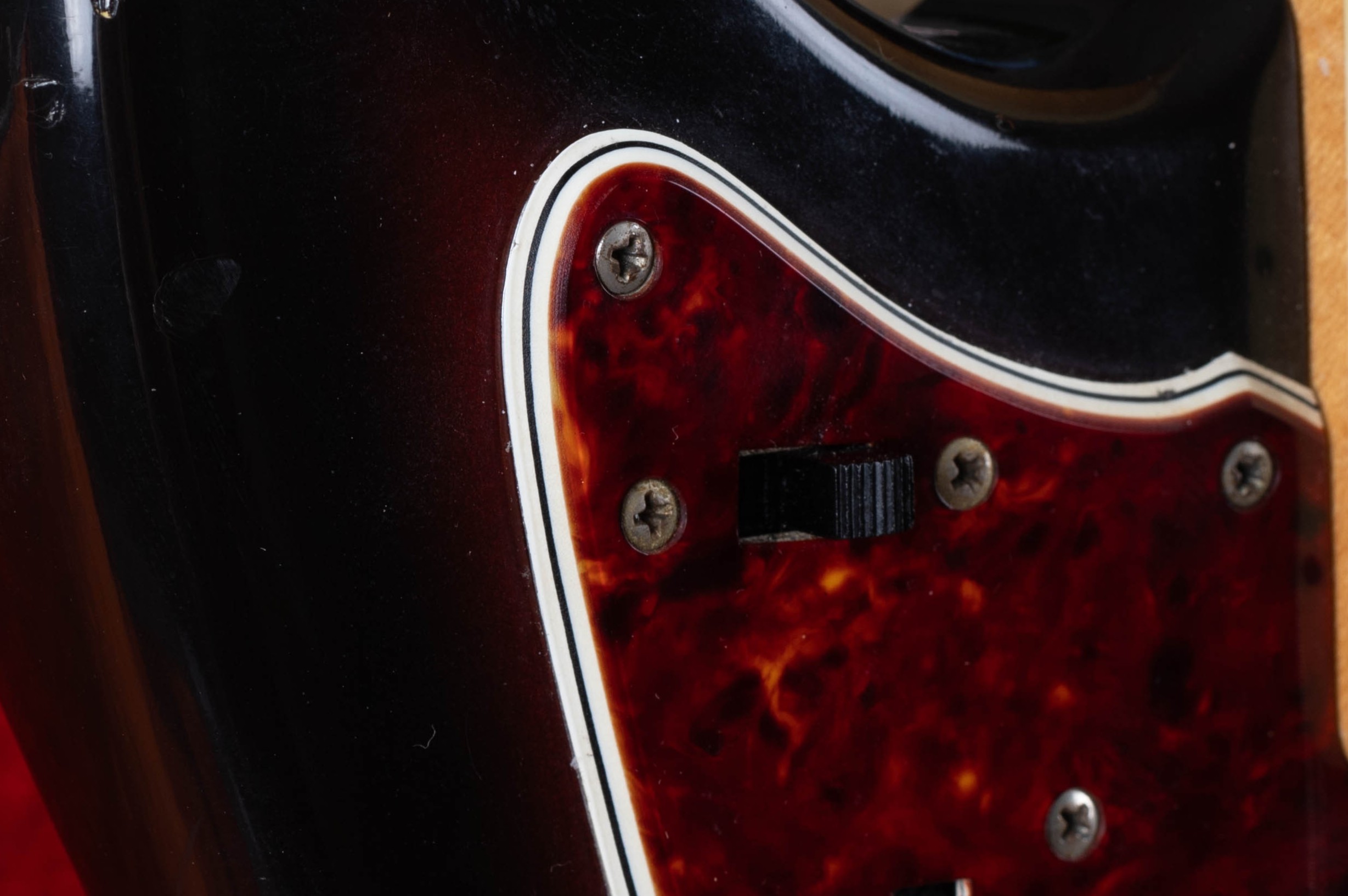

In mid-to-late 1959, Fender replaced the gold anodized guard with a 4-layer celluloid tortoiseshell pickguard — tortoiseshell on top, then white, black, and white. This is the classic Jazzmaster look most associated with the 1960s surf era. The tortoiseshell celluloid was also used on the Precision Bass in 1959.
Celluloid is notorious for its instability: it shrinks, warps, and can become brittle over 60+ years. Original celluloid guards are frequently cracked, warped, or have shrunk noticeably — this is period-authentic behavior, not a quality flaw. The guard changed from nine screws (gold guard era) to thirteen screws from 1959 onward, as Fender added screws to combat the celluloid's tendency to warp.
An important exception: custom color guitars received white celluloid pickguards (not tortoiseshell) when the tortoiseshell era began. See Section 05 for the full custom color / pickguard pairing reference.
Era 3: Plastic Tortoiseshell (Late 1964–1971)
Around late 1964, Fender switched from celluloid to a more stable plastic (ABS or vinyl) tortoiseshell pickguard. The material change was practical — celluloid was fire-hazardous during manufacturing and temperamental in use. The plastic guard maintains the same visual appearance but does not warp and shrink the way celluloid does.
Collectors generally consider the plastic guard less visually attractive than the celluloid — the tortoiseshell pattern is often more uniform and less rich-looking. The transition from celluloid to plastic is a late pre-CBS / transition-era specification marker. The tortoiseshell pattern also changed slightly in the late 1960s, becoming more brown-red with black swirls and fewer white chunks compared to the earlier red-dominant celluloid pattern.
Pickguard Material Summary
| Period | Material | Screws | Sunburst | Custom Colors |
|---|---|---|---|---|
| 1958–mid 1959 | Gold anodized aluminum | 9 | Gold guard | Gold guard (early) |
| Mid 1959–late 1961 | Celluloid tortoiseshell (4-ply) | 13 | Tortoiseshell | White celluloid |
| Late 1961–late 1964 | Celluloid tortoiseshell (4-ply) | 13 | Tortoiseshell | White celluloid (mint green aging) |
| Late 1964–1971 | Plastic tortoiseshell (3-ply) | 13 | Tortoiseshell | White plastic |
Custom Colors & Pickguard Pairing
Custom colors were available on the Jazzmaster from its introduction, at a 5% premium over the standard list price. The lineup expanded and contracted over the years, and the correct pickguard for a given color changed depending on production period. This section provides a complete reference.

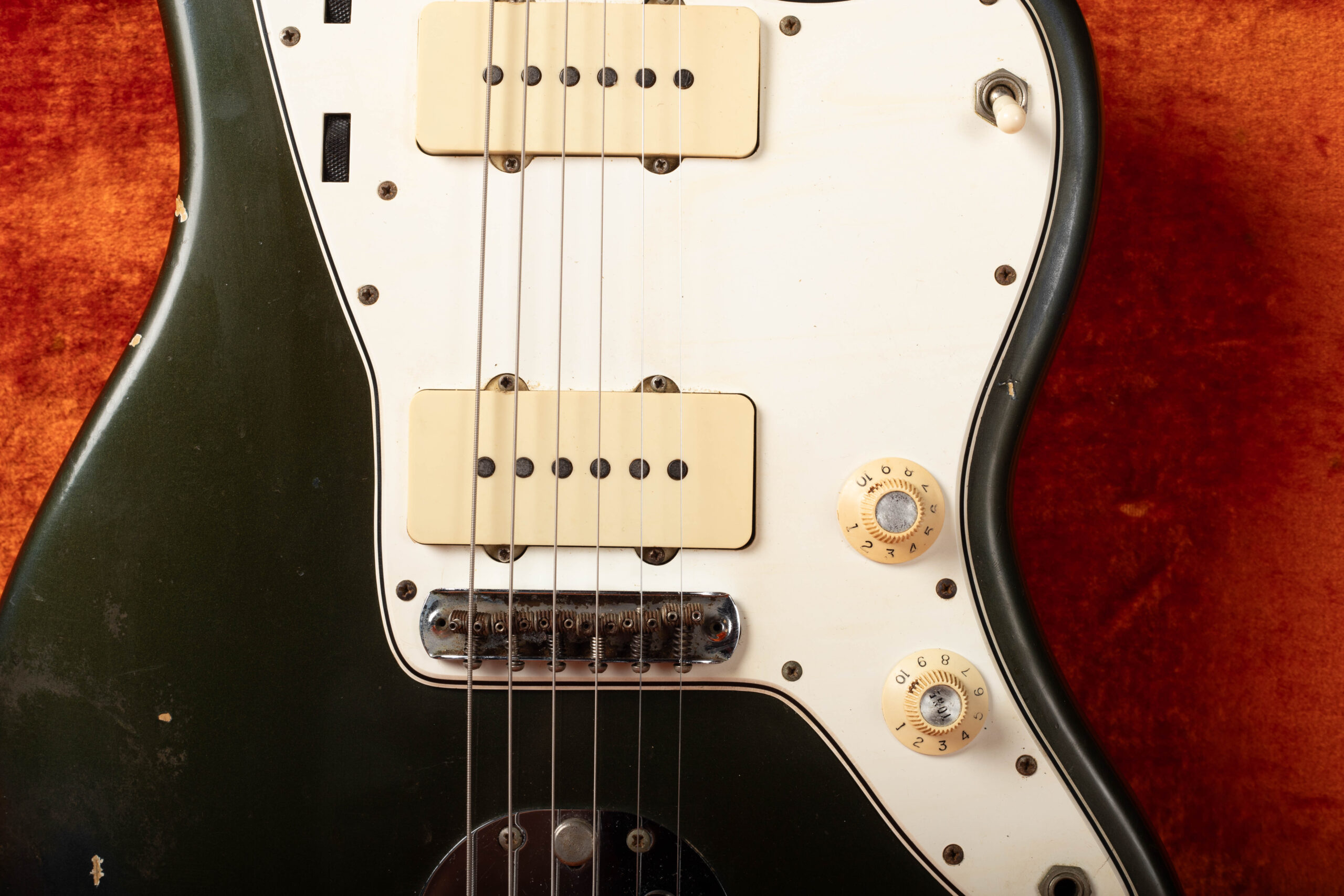

The Pickguard Rule for Custom Colors
The key rule: sunburst Jazzmasters always received the tortoiseshell (or gold aluminum) guard; custom color Jazzmasters generally received a white guard — but this has nuance by era.
- 1958–mid 1959All Jazzmasters (sunburst and custom color) shipped with gold anodized aluminum pickguards. This is the one era where custom colors also had gold guards.
- Mid 1959–late 1961Sunburst received tortoiseshell celluloid. Custom colors received white celluloid. Note: non-matching headstocks on custom colors were standard until approximately spring 1962.
- Spring 1962 onwardSame as above — sunburst with tortoiseshell, custom colors with white — but custom colors now had matching painted headstocks as standard. White guards on custom colors will show the characteristic mint-green aging of celluloid over time.
- Late 1964–1971Sunburst with plastic tortoiseshell. Custom colors with white plastic guard (does not age to mint green the way celluloid does).

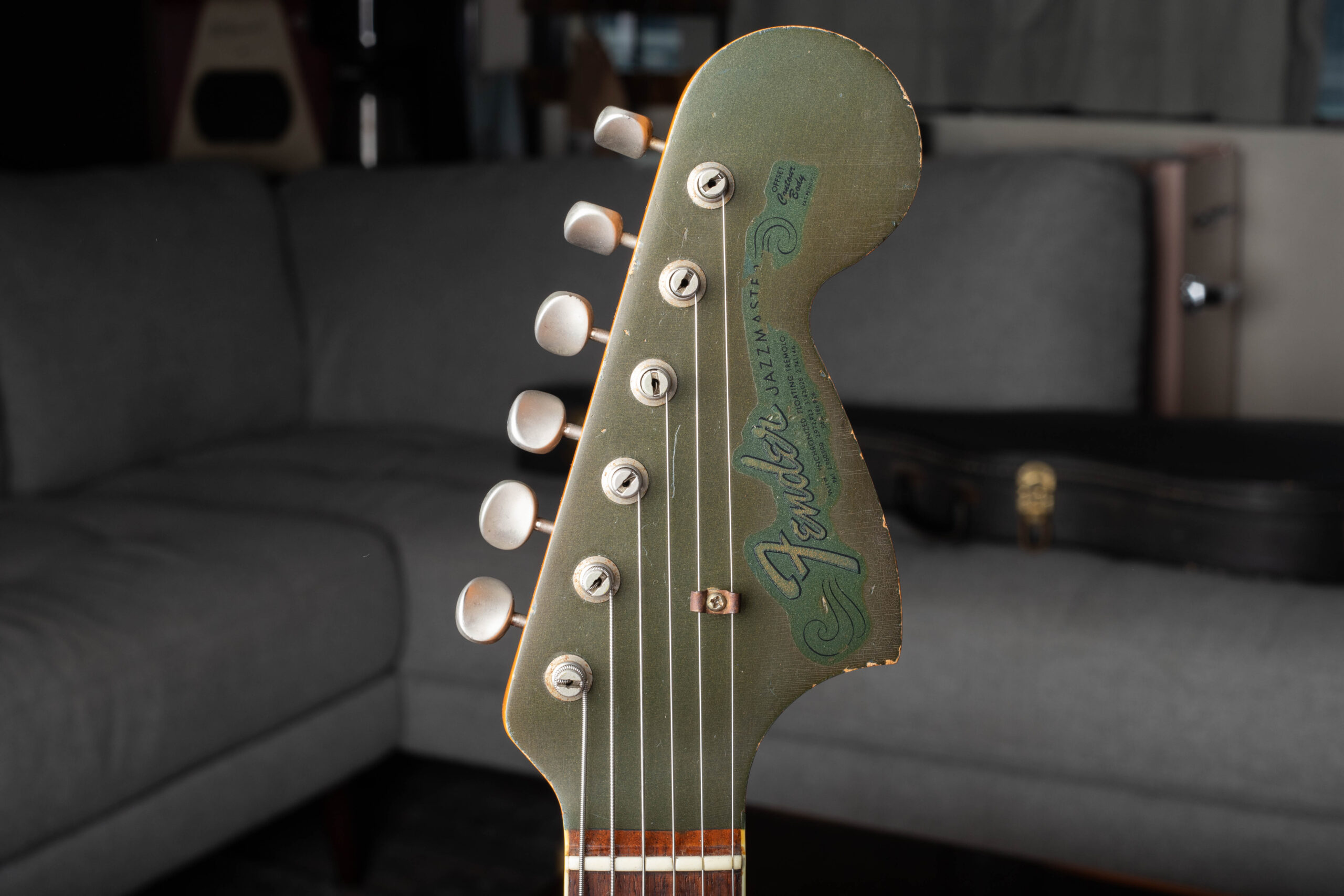

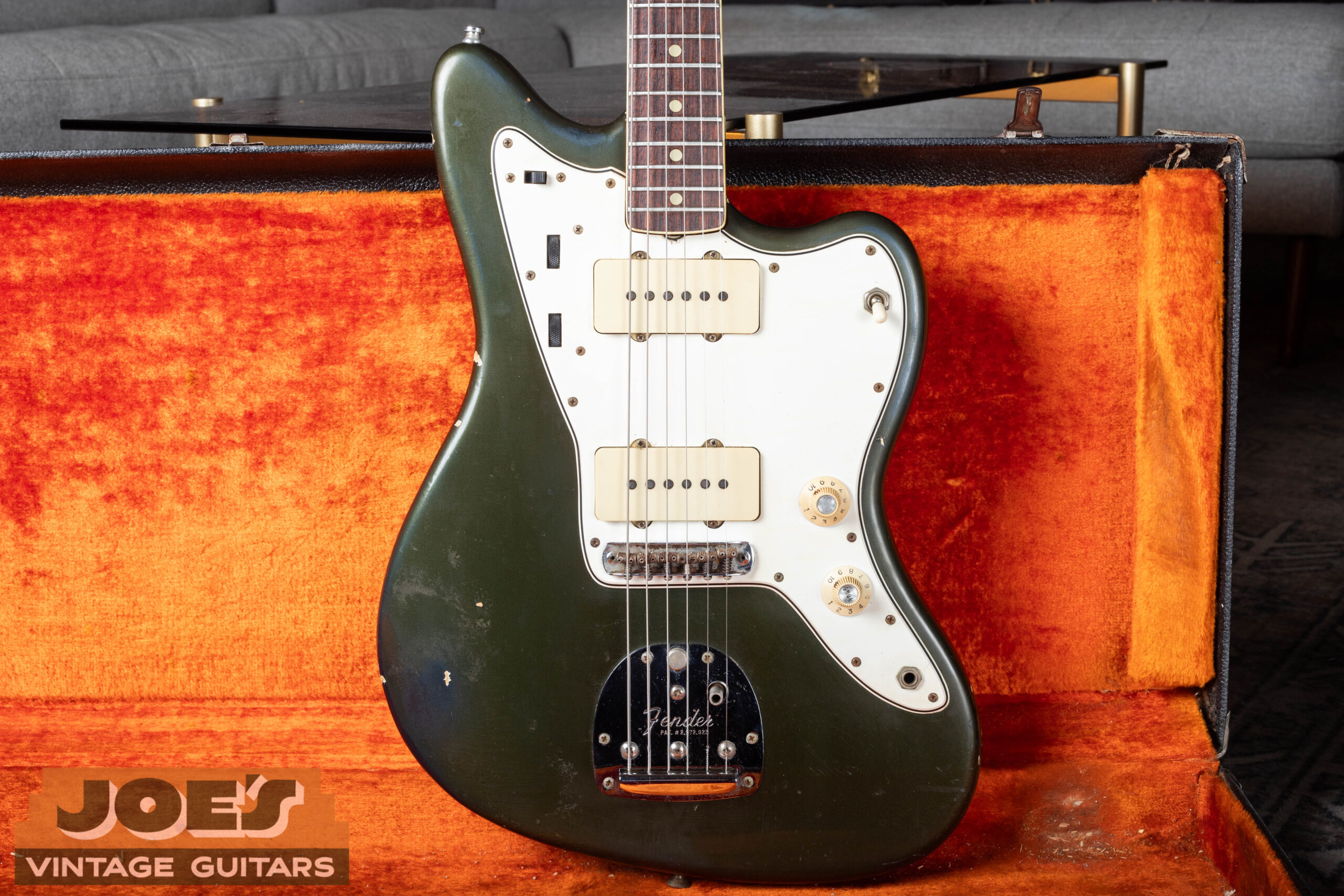

Matching Headstocks
Custom color Jazzmasters available with a headstock painted to match the body — a significant value premium that collectors call a matching headstock. On Jazzmasters, all custom colors except Blonde received matching painted headstocks — Blonde guitars retained a natural maple headstock. Non-matching headstocks on non-blonde custom colors were standard only through approximately spring 1962; from spring 1962 onward matching headstocks are correct for all non-blonde custom colors. Always verify that a claimed matching headstock shows the same aging and lacquer character as the body finish — a fresh-looking headstock on an otherwise aged body is a red flag.
Custom Color Reference
The following colors were available on the Jazzmaster at various points during 1958–1971. Availability varied by year; not all colors were offered throughout the entire run. Colors marked with (M) indicate matching headstock was standard; colors without (M) had non-matching natural maple headstocks on most examples.
When custom color Jazzmasters were painted at the Fullerton factory, the body was hung on a paint stick inserted into the neck pocket during spraying. The stick masked a small area of the neck pocket floor, leaving a shadow of bare wood or lighter finish where the stick blocked the paint. This "paint stick shadow" in the neck pocket is a period-authentic detail found on genuine factory custom color guitars — particularly from approximately late 1962 onward. Its presence in the neck pocket, showing the characteristic shape of the stick under the finish, is a positive authentication indicator for custom colors.
Many Fender custom colors fade dramatically with age. Sonic Blue, Seafoam Green, and Surf Green are among the most extreme faders — a heavily played example may look almost white or pale gray today. Daphne Blue fades toward a chalky gray-blue. Lake Placid Blue is more stable but can shift. When evaluating a faded guitar, UV light examination, and checking unfaded areas under the pickguard or at the neck pocket, help assess the original color and confirm the finish is original.
Pickups & Electronics
The Jazzmaster Pickup — Design & Concept

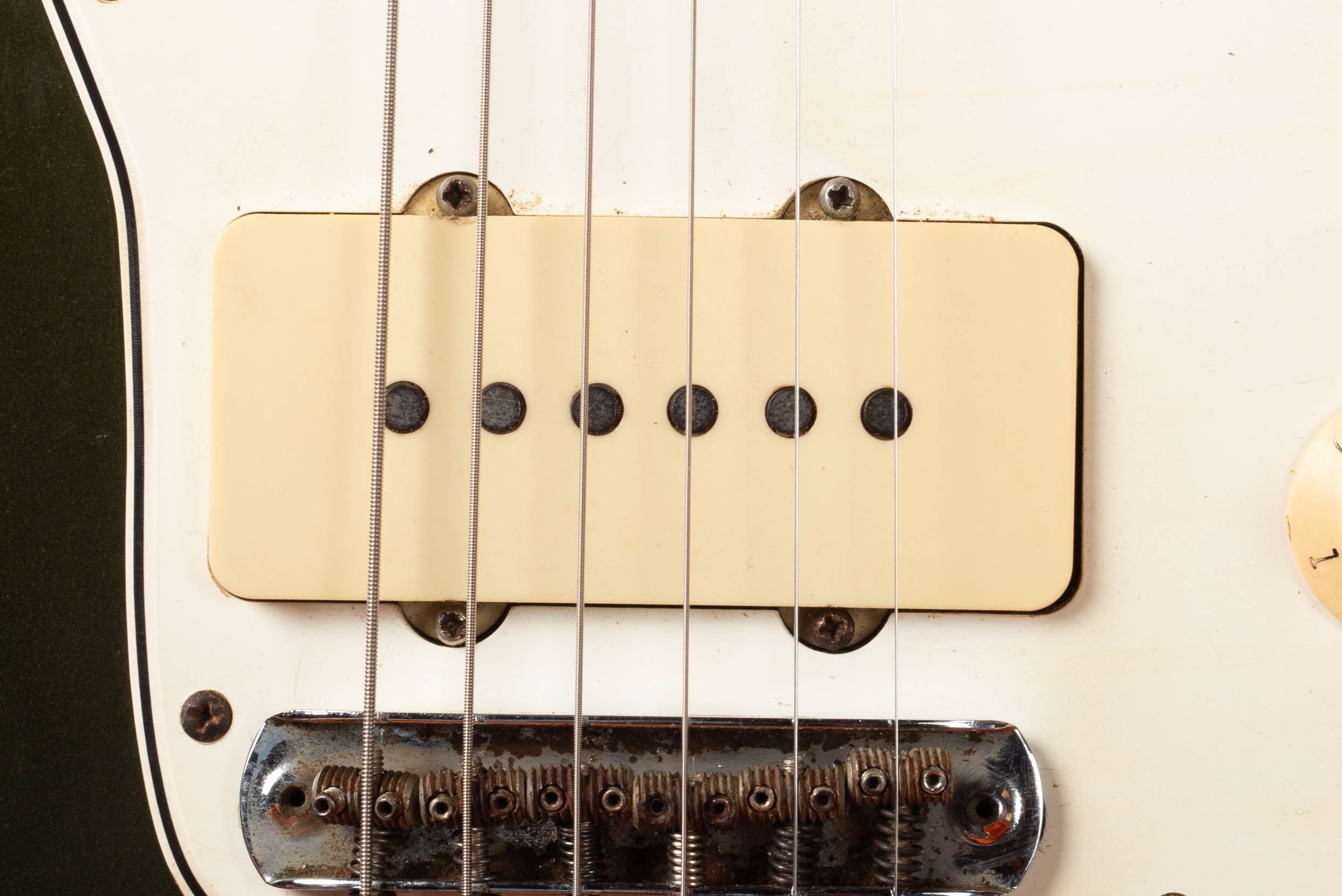

The Jazzmaster pickup is entirely unlike any other Fender pickup. Rather than a tall, narrow coil (Stratocaster) or a compact rectangular unit (Telecaster), the Jazzmaster pickup is a wide, flat, low-inductance single coil with a large aperture that senses the vibrating string over a wider zone. This design produces a warmer, rounder tone with more midrange presence and less high-frequency edge than a Stratocaster pickup — closer to a humbucker in some ways despite being a single coil.
The two pickups are reverse-wound and reverse-polarity relative to each other (RWRP), meaning that when both are engaged in the lead circuit's middle position, they achieve partial hum-cancellation — a feature Fender marketed prominently in 1958.
The pickup covers are plastic (not chrome) and mount directly to the body — not to the pickguard. The covers are flush with the pickguard surface, giving a clean integrated appearance with no exposed pole pieces visible from above. Pickup height is adjusted via screws that go through the body from below.

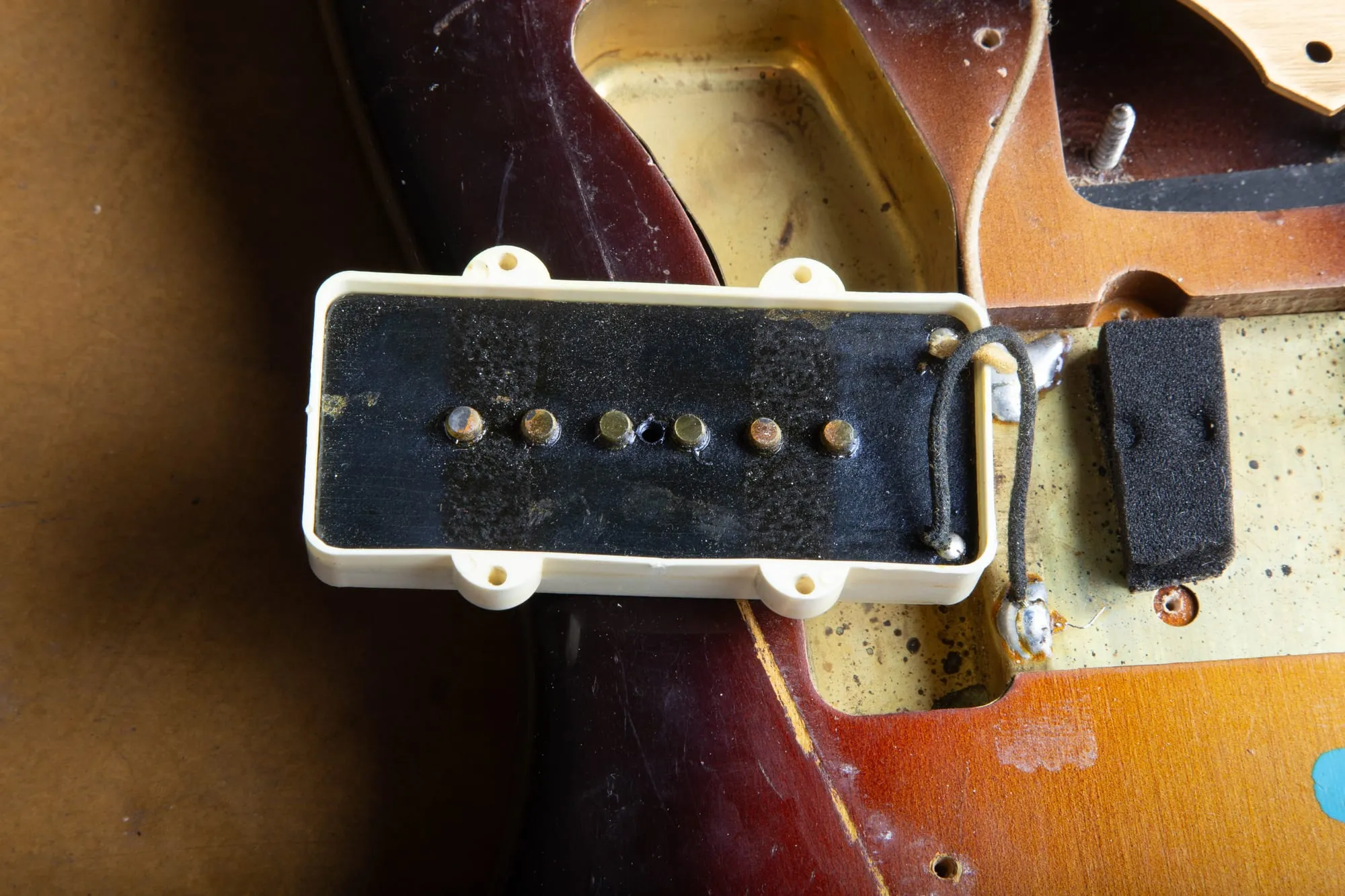

Pickup Bottom Color — A Dating Indicator
The color of the pickup base (bobbin bottom) changed during production and is a useful dating reference:
- 1958–~1964Black fiber flatwork on the bobbin bottom. Consistent with pre-CBS and early transition production. Visible when the pickup is removed from the pickguard route.
- ~1964 onwardFender began switching to gray bobbin bottoms starting around 1964, though the transition was gradual and both black and gray bottoms can appear on instruments from this period.
Foam Under Pickups — The "Foam Rot" Problem
Original Jazzmaster pickups were installed with a piece of open-cell foam beneath each pickup to spring-load them upward against the strings — a tension-based height adjustment system. This foam is critical to proper pickup function but is also notoriously unstable over time.
After 50–60 years, the original foam typically decomposes completely — collapsing, hardening, or crumbling into nothing. When the foam fails, the pickups drop down into their routes, reducing output and changing the instrument's tone significantly. This is known as "foam rot" in the vintage Jazzmaster community and is one of the most common condition issues on vintage examples.
Checking for and replacing deteriorated foam (with appropriate modern open-cell foam cut to size) is standard maintenance, not a modification. The presence of the original deteriorated foam, or evidence of its prior presence, is an authenticity indicator — the absence of any foam (original or replacement) explains why a vintage Jazzmaster may sound weak or dull.
Body Dates
The body date on a Jazzmaster is penciled in the bridge pickup cavity, visible through the pickguard route. This date reflects when the body was routed and is a valuable independent dating reference, particularly for 1958–1965 guitars. Cross-reference with neck date and pot codes for a complete picture.
Bridge, Tremolo & Hardware
The Floating Bridge

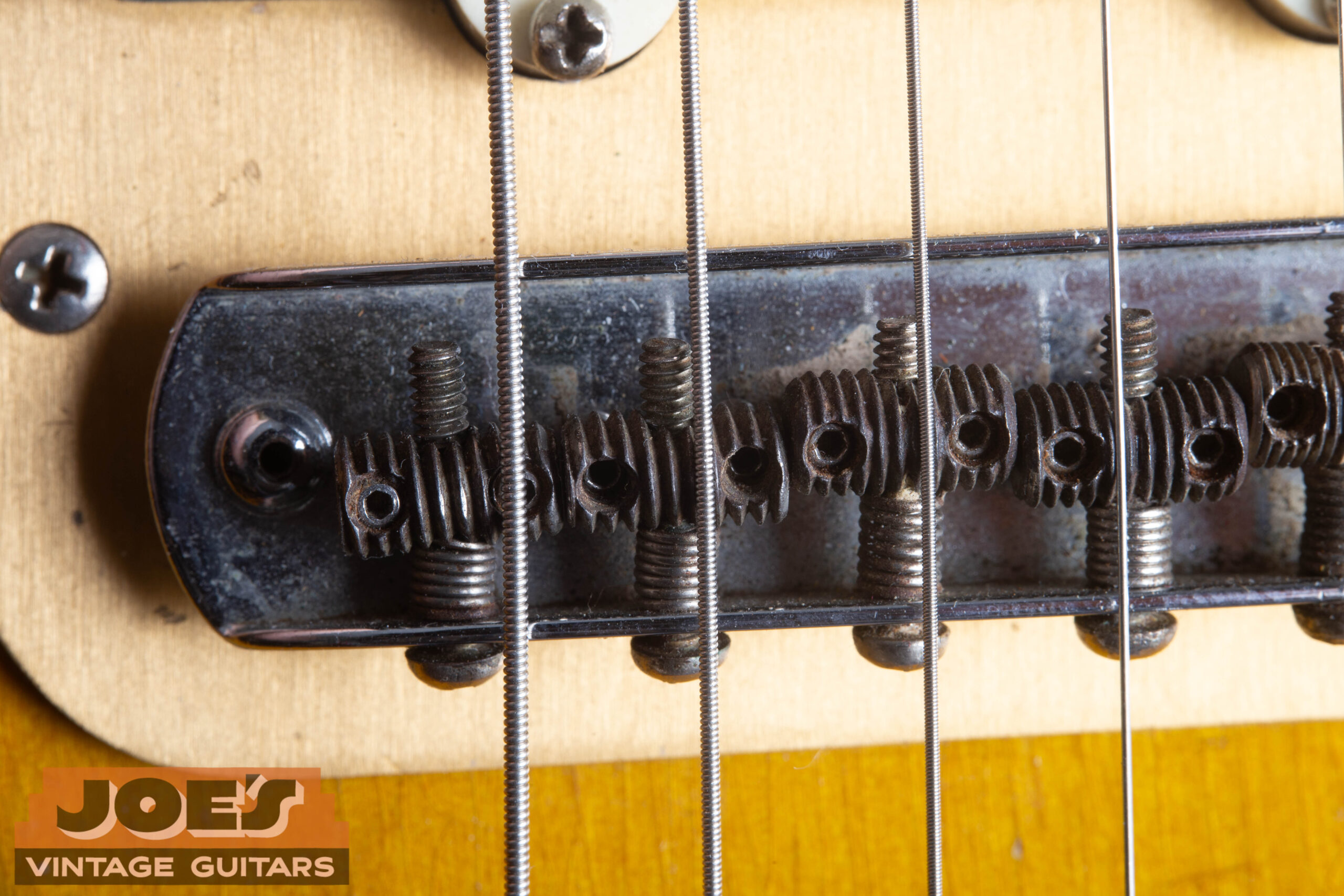

The Jazzmaster uses a floating bridge — a chrome unit with six individual threaded barrel saddles that sits in two posts but is not mechanically anchored to them. The bridge rests on the posts by gravity and string tension alone and can rock slightly with tremolo use. This floating design is integral to the Jazzmaster tremolo system's function.
The barrel saddles are individually adjustable for intonation and are threaded cylinders — quite different from the flat saddles of a Telecaster or the ABR-1 of a Gibson. The floating bridge is notorious for allowing strings to slip out of saddle grooves, particularly with aggressive playing or light string gauges. Many players address this with aftermarket saddle replacements or by substituting a Mustang bridge.

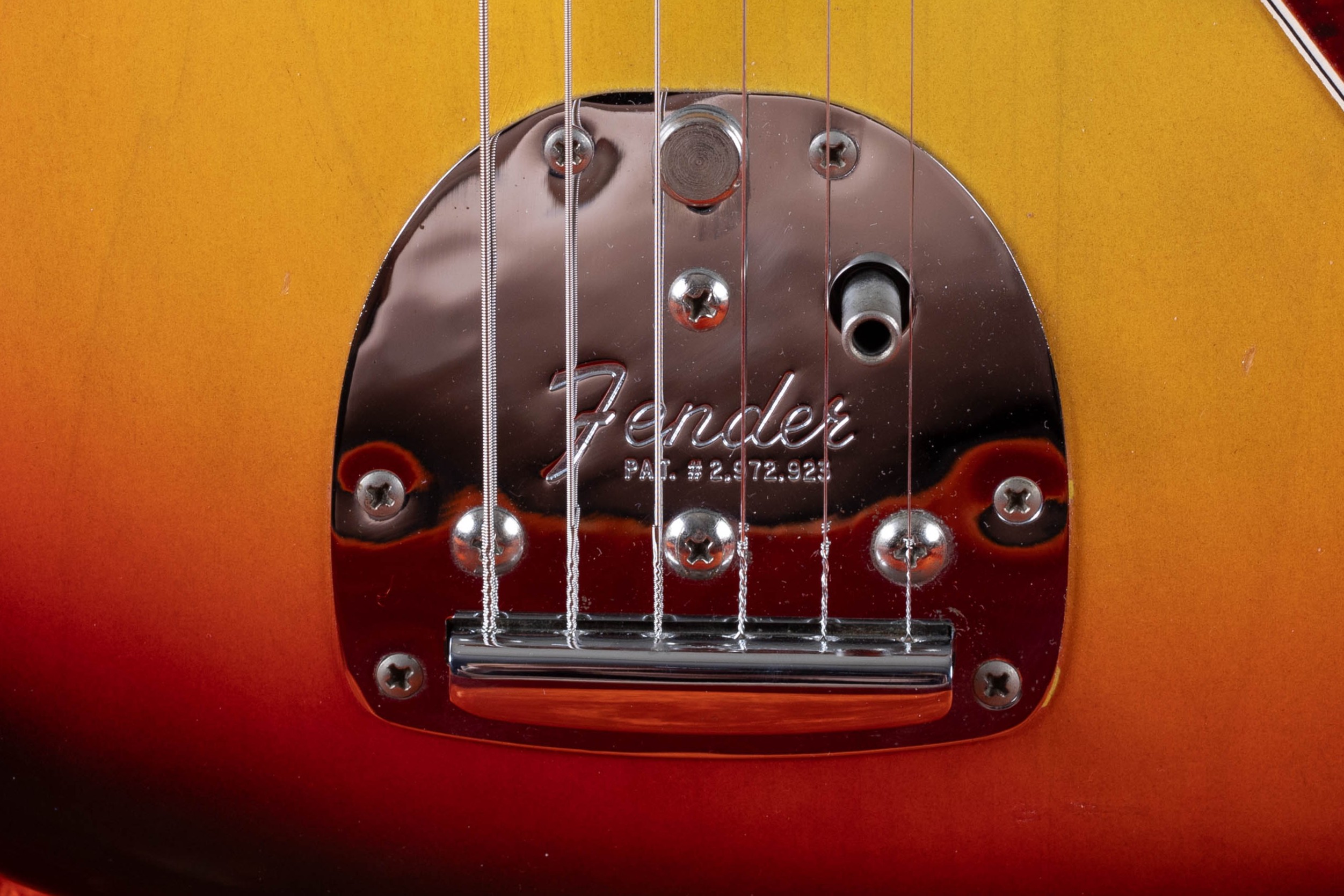

The Floating Tremolo System
The tremolo is a separate unit from the bridge — a vibrato tailpiece that anchors and actuates the strings while the bridge floats. The tremolo features:
- Trem-lock buttonA thumb-operated button on the tremolo body that mechanically locks the tremolo in position — allowing the player to continue playing in tune even if a string breaks. A unique engineering solution that remained constant throughout the production run.
- Tremolo armA chrome rod that pushes into the tremolo body — it is a press-fit, not threaded. The arm has a distinctive gentle bend and is lighter and more responsive than a Stratocaster tremolo arm. Vintage arms are commonly missing — replacements are widely available.
- "Pat. Pend." vs "Patent" markingEarly tremolo units (1958–approximately 1961) are marked "Pat. Pend." (patent pending). Later units have the full patent number stamped on them. The Pat. Pend. trem is a pre-CBS era dating indicator.
Logos, Tuners & Knobs
Headstock Logo Evolution

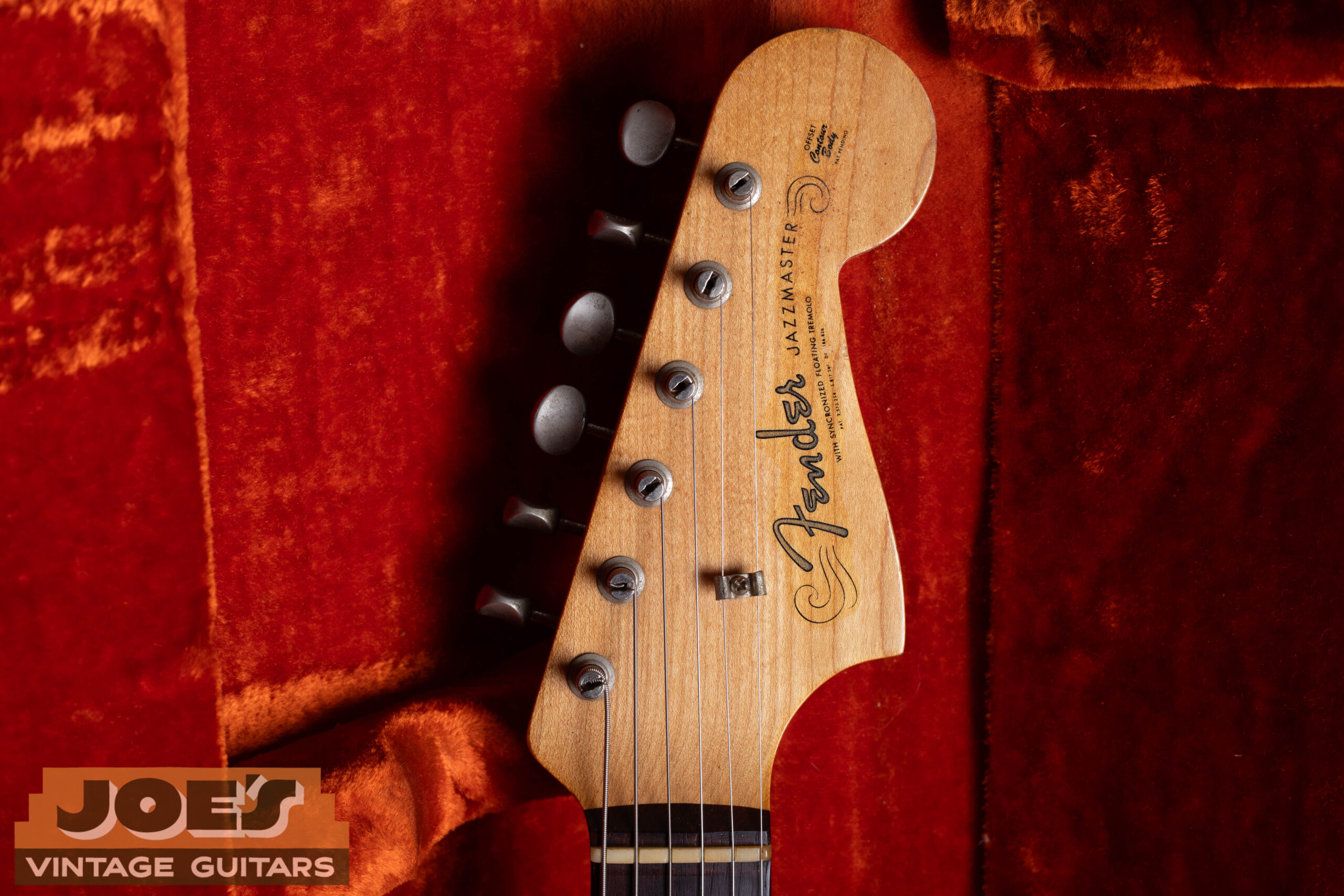

- 1958–mid 1964
"Spaghetti" logoThe classic thin, flowing cursive "Fender" script in silver/chrome. Named for its resemblance to wet spaghetti noodles. Applied as a water-slide decal on top of the finish, protected by a clear topcoat. The most collectible logo era. Early 1958 examples have no patent numbers on the decal; patent numbers were added gradually through 1959–1960. - Mid 1964–1967

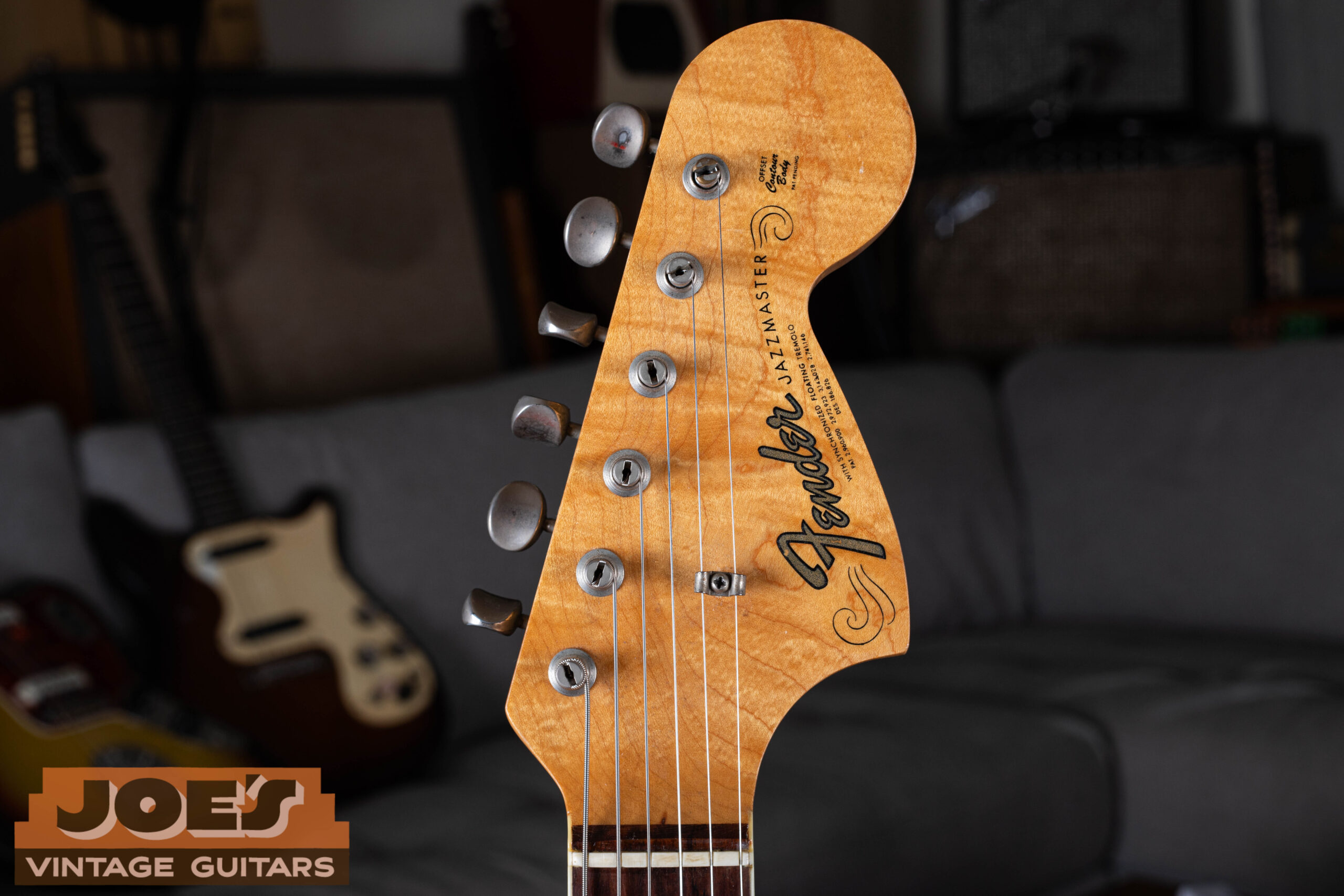

"Transition" logoA heavier, thicker gold Fender logo — wider letterforms than the spaghetti logo, with a slightly different feel. Applied in gold with black outline. Named for its association with the CBS transition period. Applied to guitars from approximately mid-1964 through 1967. - Late 1967–1971
"CBS" black logoThe fully CBS-era logo — black printing, different letterforms. Applied from approximately late 1967 onward. The "Jazzmaster" model name also changed to a bolder block-letter style around this time.
Tuner Evolution
- 1958–~1959
No-line KlusonsKluson Deluxe tuners with no text on the gear housing back — blank. The earliest Jazzmaster tuner specification. - ~1960–~1964

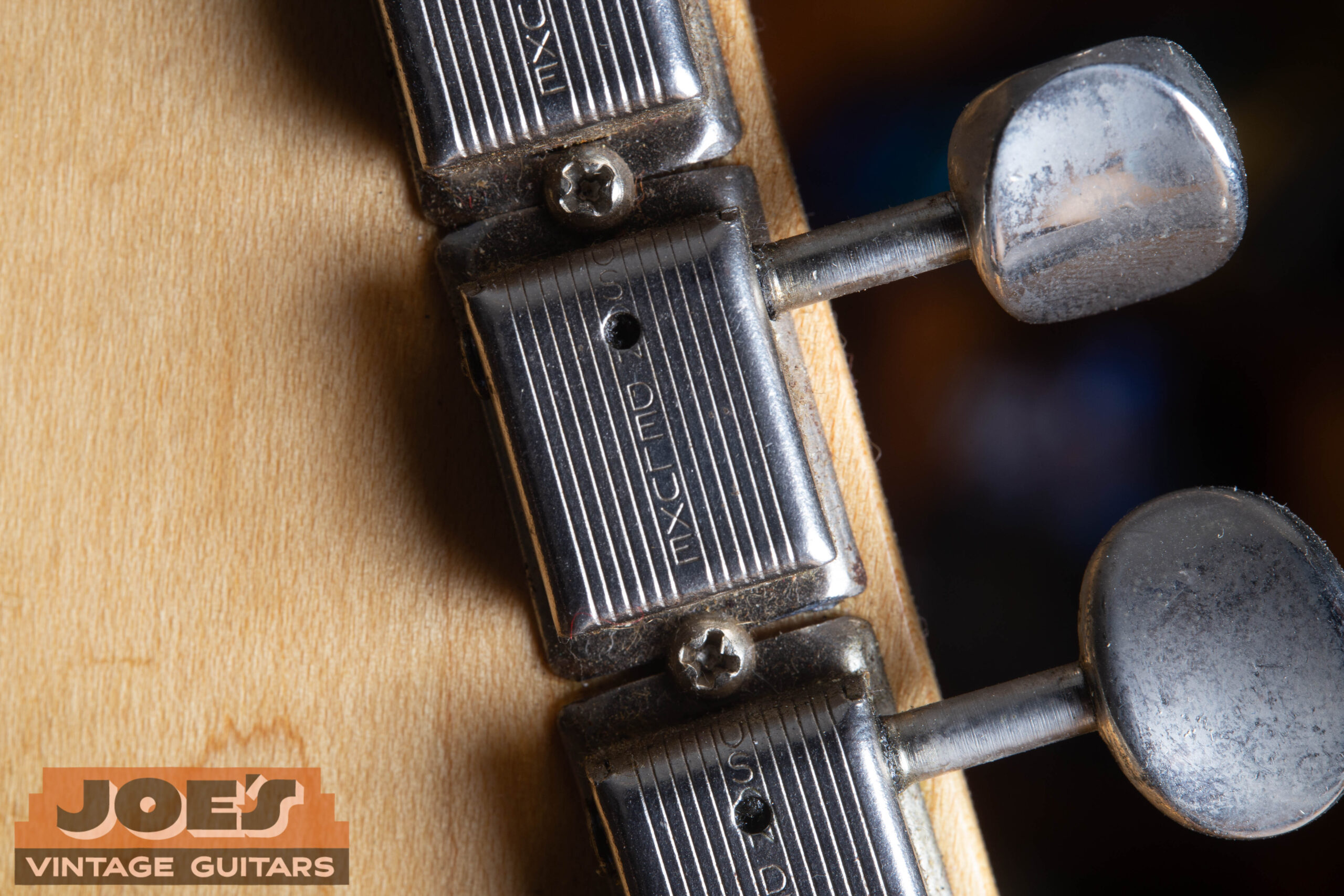

Single-line KlusonsKluson Deluxe with "KLUSON DELUXE" on a single line on the gear housing back. All-metal housings and buttons.

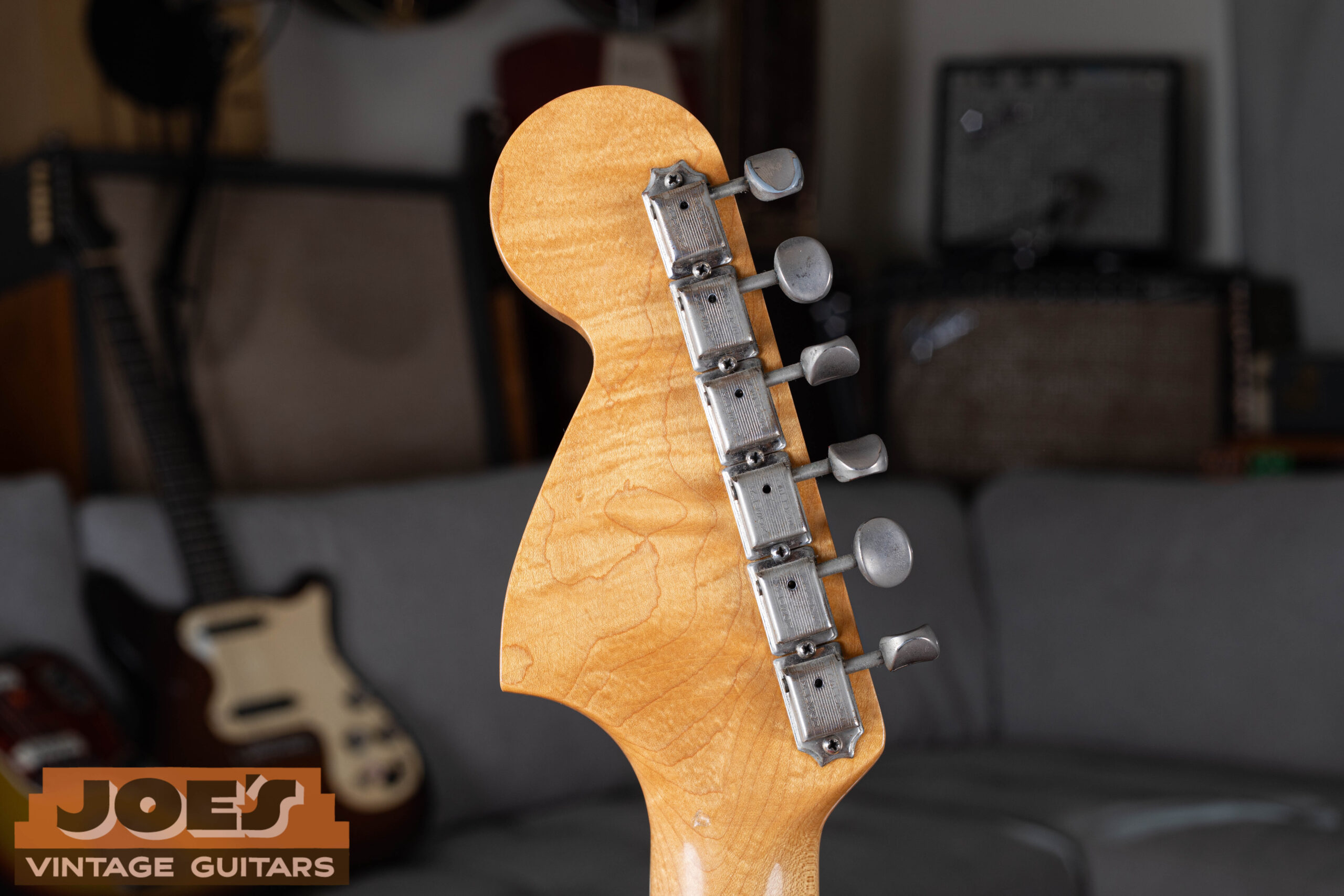

- ~1964–late 1965
Double-line KlusonsKluson Deluxe with "KLUSON" on first line, "DELUXE" on second line. Brief transitional specification. - Late 1965–1971
Fender "F" tunersFender-branded (Schaller-made) tuners with a stylized "F" on the buttons. A completely different look from the open-back Kluson. A definitive CBS-era indicator. Kluson to F-tuner is one of the most visible single changes on the guitar.
Switch Tip Evolution
The toggle switch tip on the Jazzmaster's lead circuit selector changed in appearance during production and is a useful period indicator:
- 1958–~1960

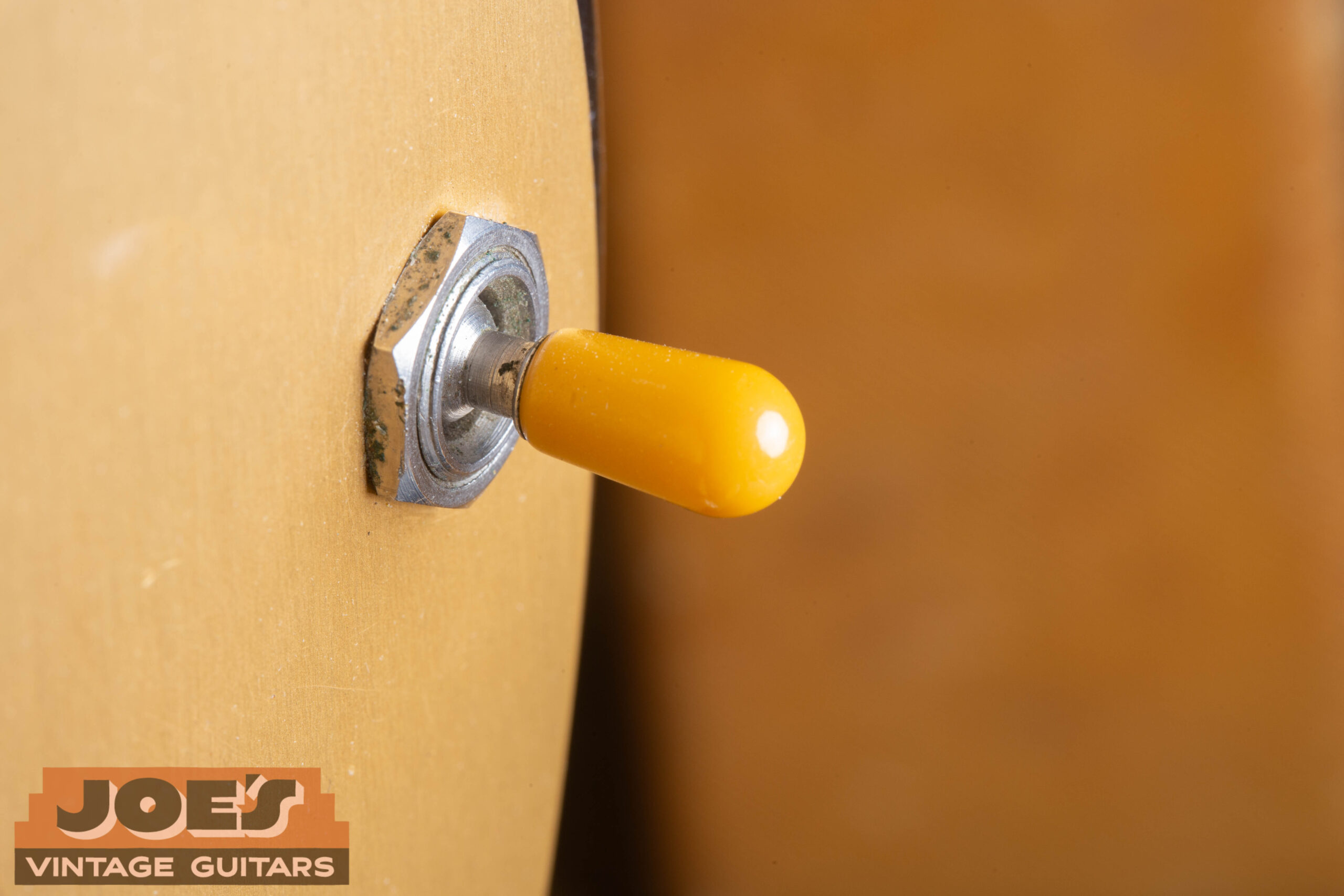

Amber tipThe earliest Jazzmasters (approximately 1958–1960) have a distinctive amber/yellowish-brown switch tip — a warm, translucent color unique to the first few years of production. This amber tip is uncommon and highly specific to the gold guard and early tort guard era. An intact original amber switch tip is a strong indicator of a genuinely early example. - ~1961 onward
White/cream tipBy approximately 1961 the switch tip had transitioned to a whiter plastic — lighter and less amber than the earliest examples. This whiter tip was used for the remainder of the production run through 1971. The degree of whiteness can vary with age and UV exposure.
Headstock Shape
The Jazzmaster headstock shape remained essentially consistent from 1958 through approximately mid-1967 — the familiar large offset shape with six tuners in a row. Around mid-1967 the headstock was modified to the slightly different shape used on post-1965 Stratocasters. This is a subtle change not as dramatic as the Stratocaster's well-known headstock enlargement but visible in direct comparison.
Serial Numbers & Dating
Jazzmaster serial numbers are located on the neck plate on the back of the guitar — not on the headstock as on Gibson. The neck plate is a four-bolt chrome plate securing the neck to the body. Serial number formats changed over the production run.
| Format | Approximate Years | Example | Notes |
|---|---|---|---|
| 5-digit (no prefix) | 1958–1963 | 30,000–99,999 | Shared with other Fender models. Range overlaps significantly; serial alone cannot distinguish model. |
| L prefix + 5 digits | 1963–1965 | L00001–L99999 | "L" prefix applied to all Fender models in this period. L-series Jazzmasters are late pre-CBS and transition era. |

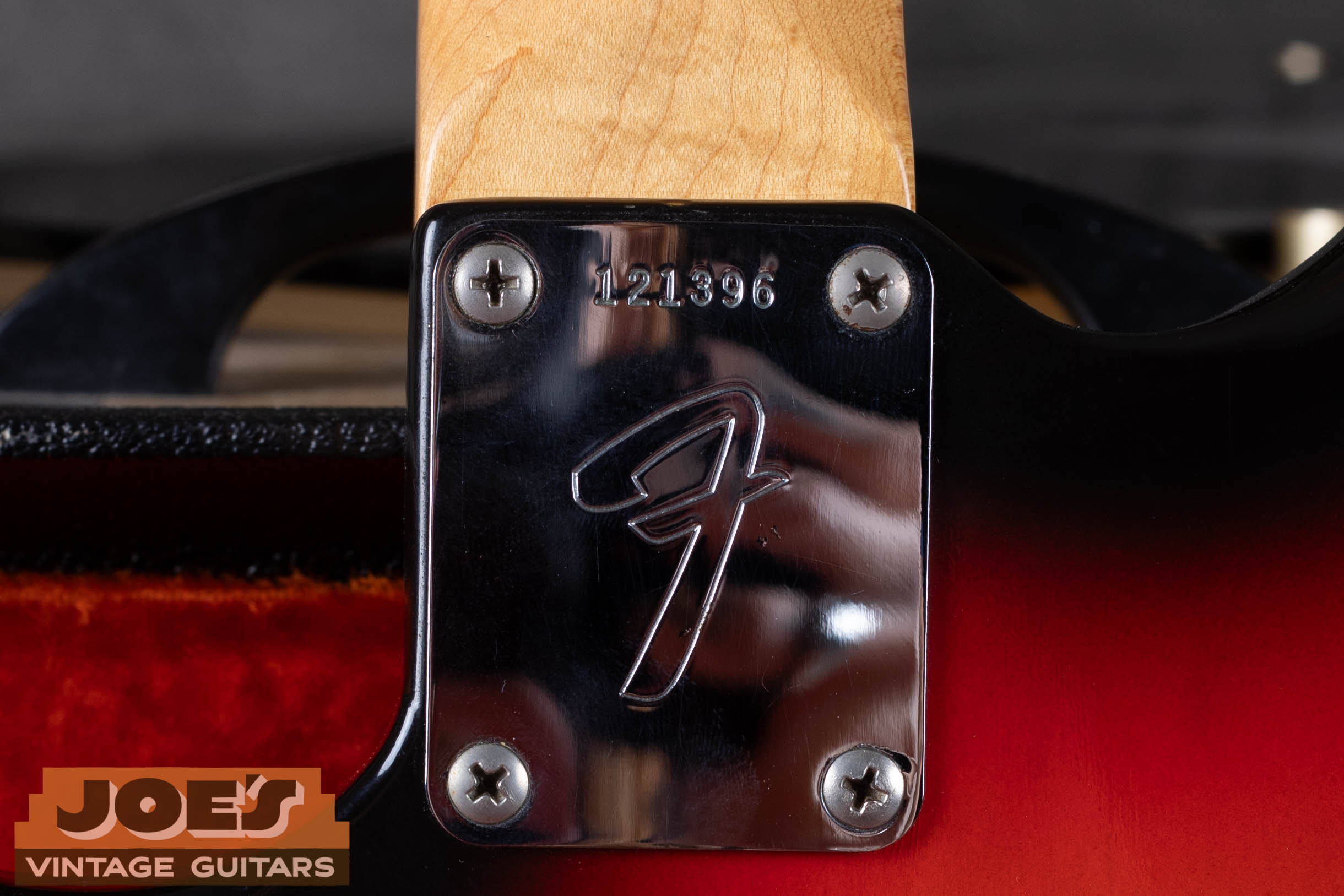

| 6 digits above large "F" | 1965–1977 | 100000–999999 | The large stylized "F" on the neck plate is a clear CBS-era indicator. Six-digit format used throughout. |
Fender serial numbers in the 1960s were batch-assigned and not strictly sequential by production date. A serial number places a guitar in a general range; precise dating requires cross-referencing the neck heel date, body cavity date, and pot codes. Relying solely on a serial number for precise year dating is a common and costly mistake.
Year-by-Year Reference: 1958–1971
The Jazzmaster debuted in the last quarter of 1958 as Fender's top-of-the-line guitar. It was the most expensive Fender available and the first to feature a rosewood fingerboard on a production model. Initial production was limited.
- Body: Alder, offset waist. Sunburst standard; custom colors available.
- Pickguard: Gold anodized aluminum, 9 screws. The defining feature of a 1958 Jazzmaster.
- Fingerboard: Slab Brazilian rosewood. First Fender production guitar with rosewood board.
- Inlays: Clay dots.
- Logo: Spaghetti script. No patent numbers on decal (earliest examples).
- Tuners: Kluson Deluxe no-line (blank housing back).
- Knobs: Strat-style white dome knobs on lead circuit; roller wheels on rhythm circuit.
- Tremolo: "Pat. Pend." marking on tremolo. Round lead switch nut (ends December 1958).
- Pickups: Black bobbin bottoms.

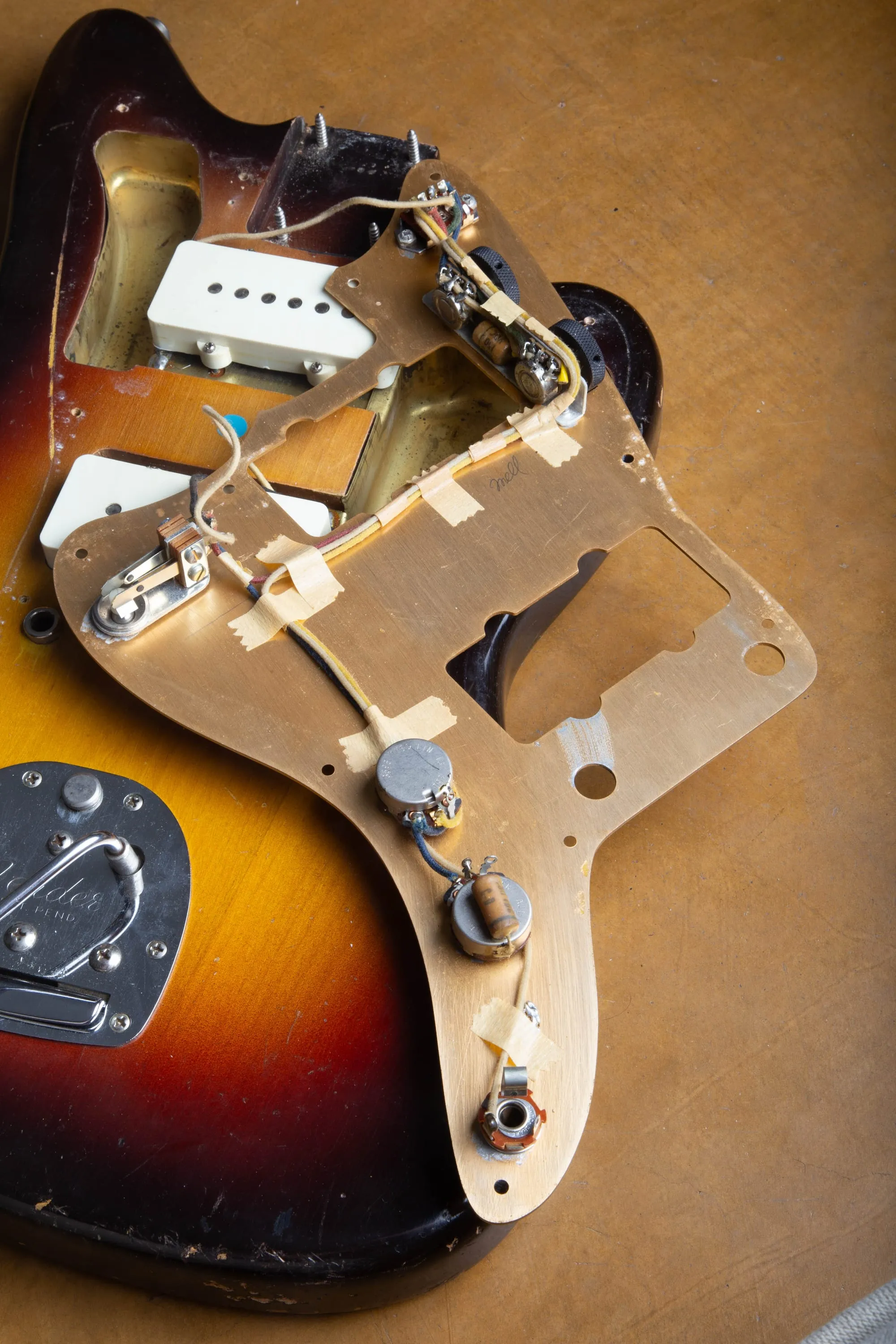

- Shielding: "Tub" style shielding under pickguard.
- Pots: Stackpole or CTS.

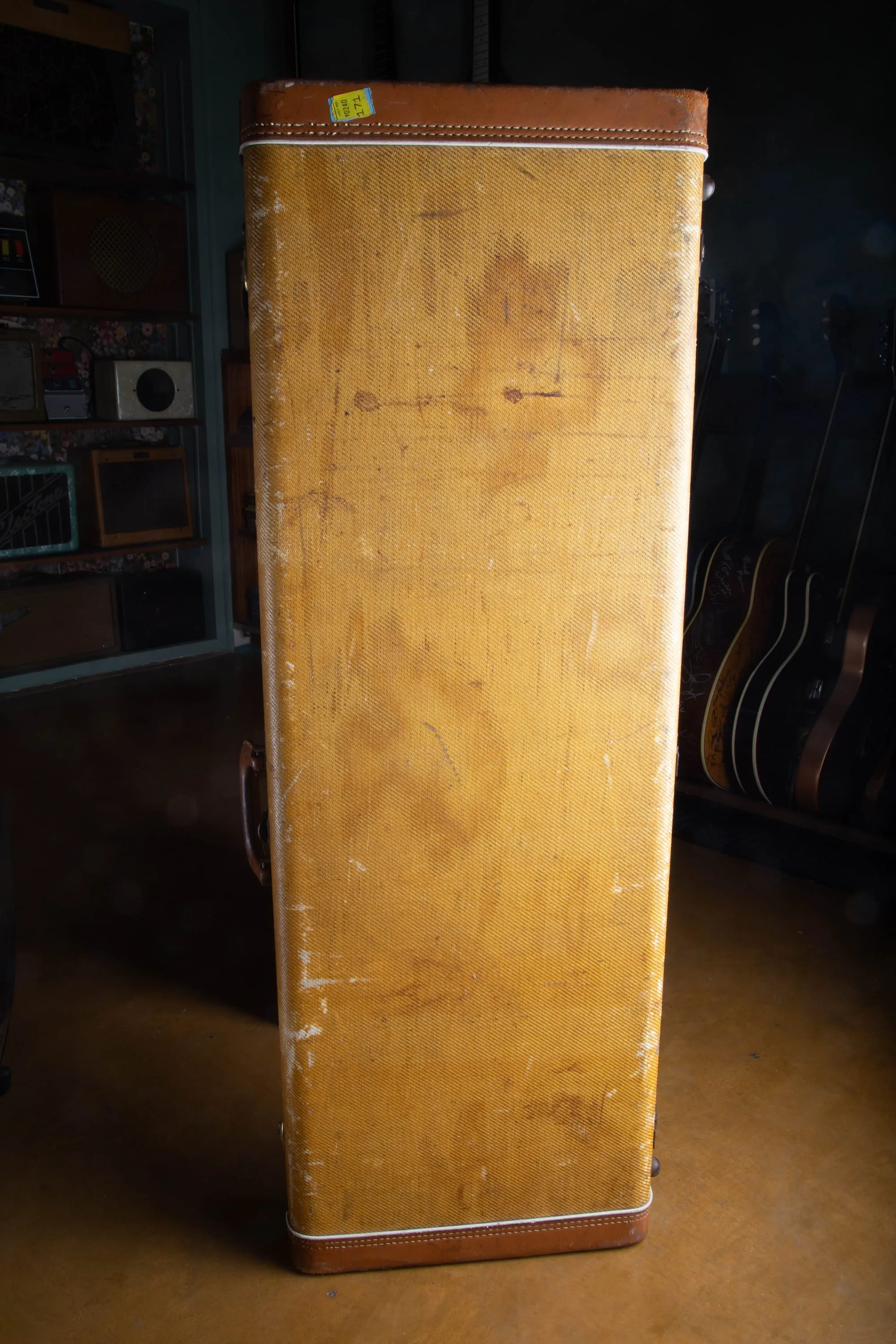

- Case: Tweed case (several variations).
- Finish: Nitrocellulose lacquer.
- Serial: 5-digit, on neck plate. Low numbers.
A transitional year dominated by the pickguard change. Early 1959 guitars still have the gold aluminum guard — the most valuable configuration. Mid-to-late 1959 guitars switch to the tortoiseshell celluloid guard that would define the model for the next five years.
- Pickguard (early 1959): Gold anodized aluminum continues from 1958.
- Pickguard (mid–late 1959): 4-layer celluloid tortoiseshell replaces aluminum. Screws increase from 9 to 13. Custom colors receive white celluloid guard.
- Shielding: Changes from tub-style to curved shielding.
- Tremolo arm: Gains double bend (previously single bend).
- Lead switch nut: Changes to hex nut style.
- Fingerboard: Slab rosewood continues.
- Logo: Spaghetti. Patent numbers begin appearing on decal.
- Tuners: Kluson single-line begins appearing.
- Case: Tweed or brown Tolex.
- Note: Custom color guitars have non-matching (natural maple) headstocks at this point.
The tortoiseshell celluloid pickguard is now fully established as standard. The custom color range is expanding. Relatively few year-specific changes — 1960 guitars share most features with late 1959 examples.
- Pickguard: Tortoiseshell celluloid (4-ply, 13 screws) on sunburst; white celluloid on custom colors.
- Fingerboard: Slab Brazilian rosewood. Clay dots.
- Logo: Spaghetti with patent numbers on decal.
- Tuners: Kluson single-line.
- Tremolo: Pat. Pend. marking continues.
- Custom colors: Non-matching headstocks standard.
- Body date location: Penciled in bridge pickup cavity.
A relatively stable year with a few notable detail changes. The switch tip becomes whiter plastic (previously a slightly different material). The tremolo changes to the patent-number version.
- Switch tip: Becomes whiter plastic (early 1961).
- Tremolo: Patent number trem replaces Pat. Pend. (mid-1961).
- White guards on custom colors: "Mint green" celluloid aging begins to be visible on early examples of white guards.
- Fingerboard: Slab rosewood continues. Clay dots.
- Custom colors: Still non-matching headstocks standard.

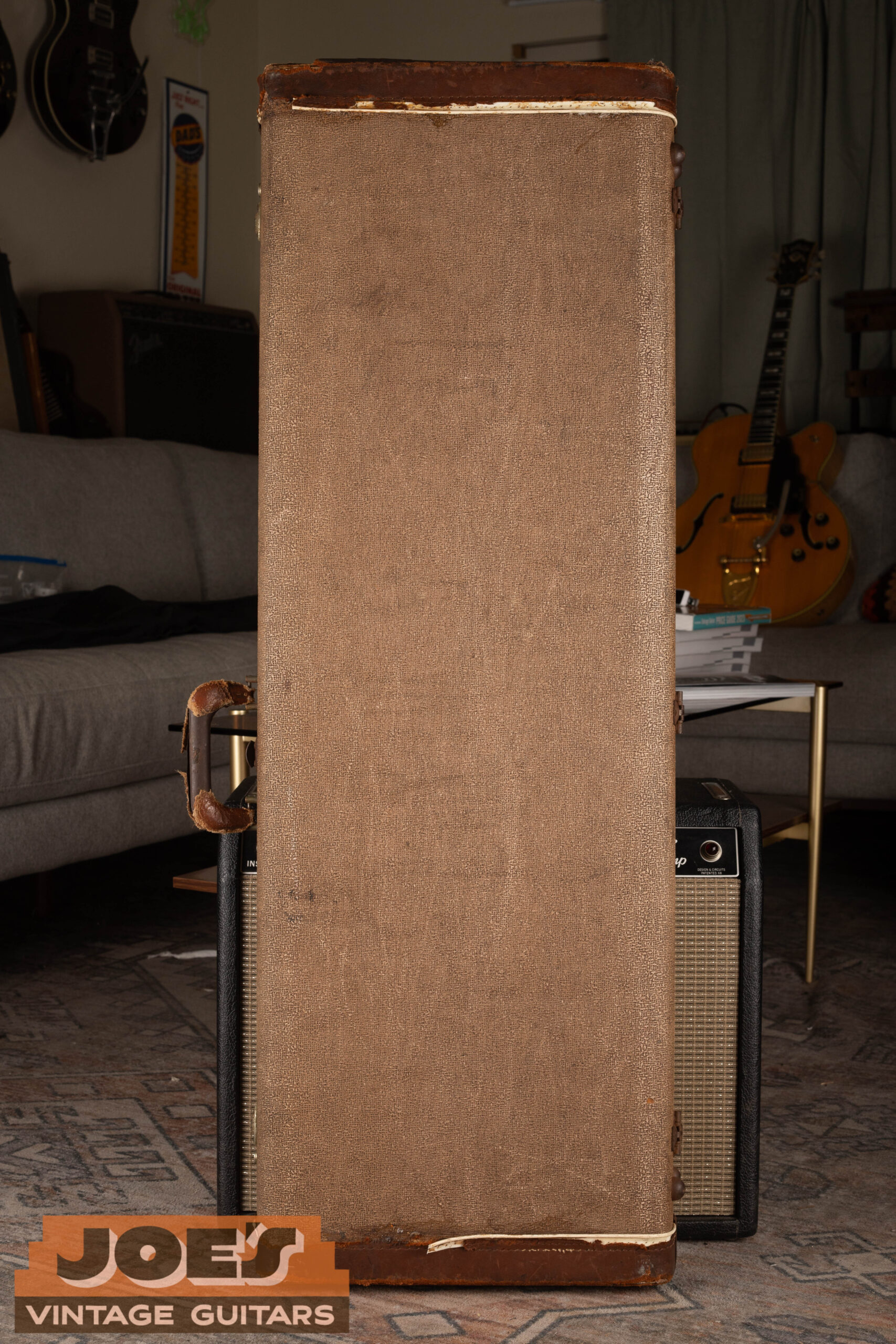

- Case: Brown Tolex now becoming standard.

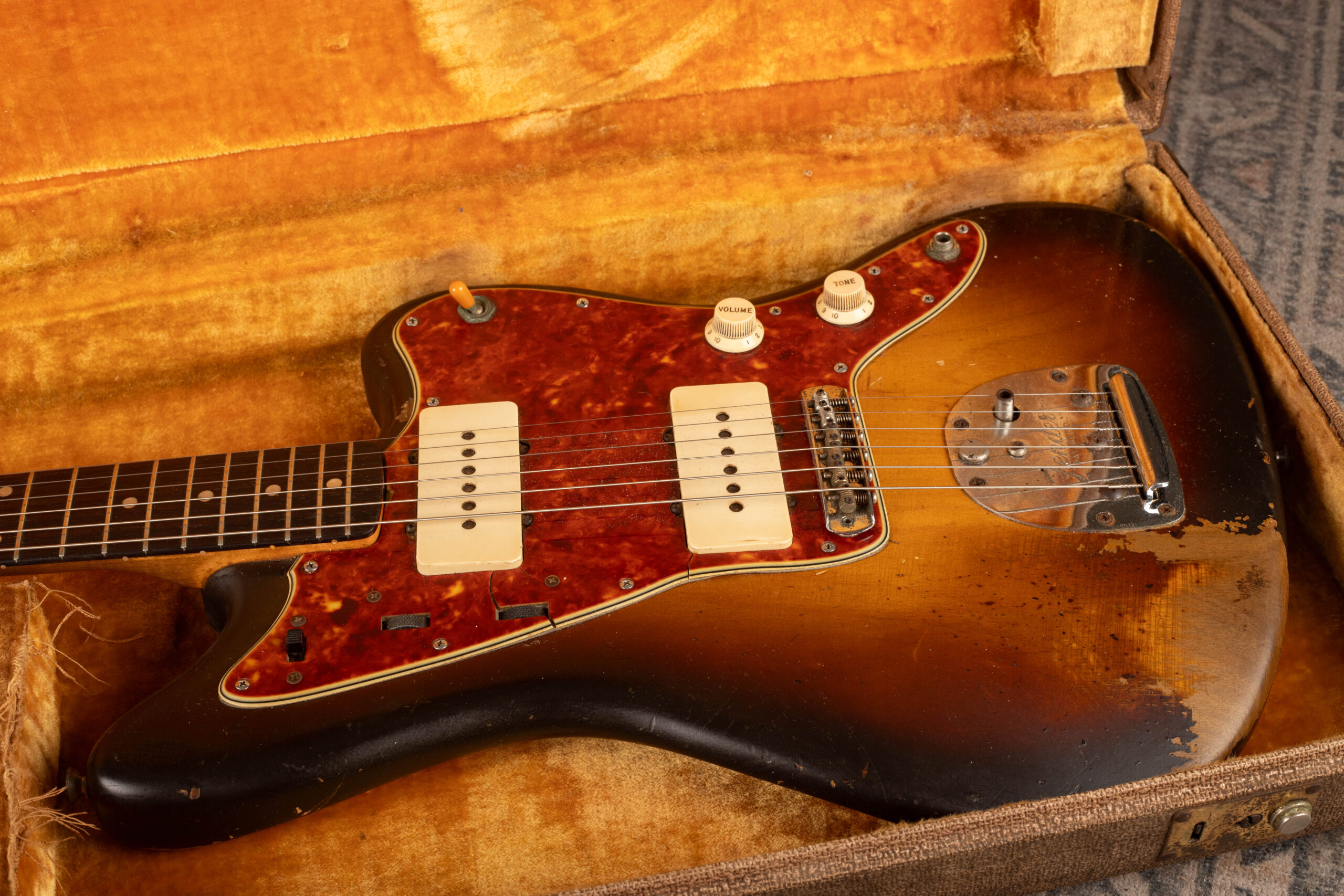

1962 is the most specification-dense year in Jazzmaster history. The slab-to-veneer fingerboard transition — the single most important spec change in the model's run — occurs in spring 1962. Simultaneously, custom color guitars receive matching headstocks for the first time, and neck dating changes from pencil to rubber stamp.
- Fingerboard (early 1962): Slab rosewood continues on first-of-year production.
- Fingerboard (spring 1962 onward): Veneer rosewood replaces slab. The Jazzmaster is the FIRST Fender production model to make this switch. Veneer boards are used exclusively from this point.
- Neck dating: Pencil dates replaced by rubber-stamped code with model number, month, year, and nut width (e.g., "4JAN63B").
- Matching headstocks: Custom color guitars now receive matching painted headstocks as standard (approximately spring 1962).
- "Paint stick" mark: A painted stick mark appears in the neck cavity from late 1962 / early 1963.
- Pickguard: Tortoiseshell celluloid on sunburst; white celluloid on custom colors (unchanged from 1959).
- Clay dots: Still correct for 1962.
- Logo: Spaghetti continues.
All 1963 Jazzmasters have veneer rosewood fingerboards. The model is now fully in its mid-production configuration: spaghetti logo, clay dots, single-line Klusons, tortoiseshell celluloid guard, rubber-stamped neck dates.
- Fingerboard: Veneer rosewood. Clay dots.
- Logo: Spaghetti with patent numbers.
- Tuners: Kluson single-line.
- Pickguard: Tortoiseshell celluloid (sunburst); white celluloid with matching headstock (custom colors).
- Serial: 5-digit numbers in the 80000–99999 range; "L" prefix begins appearing toward end of year.
- Case: Brown Tolex.
Late 1964 sees the first cluster of changes since the 1962 fingerboard transition. The spaghetti logo gives way to the transition logo, clay dots are replaced by pearloid, and the celluloid pickguard is replaced by plastic. These changes mark the beginning of the "transition era" ahead of the CBS acquisition.
- Logo (mid–late 1964): Spaghetti logo replaced by the transition logo — thicker gold letterforms.
- Inlays (late 1964): Clay dots replaced by pearl/pearloid dots. Brighter and more reflective than clay.
- Pickguard: Celluloid tortoiseshell continues on sunburst; white celluloid continues on custom colors. The celluloid-to-plastic transition does not happen until 1965.
- Tuners: Single-line Klusons continue; double-line begins appearing toward end of year.
- Serial: "L" prefix numbers (L-series).
- Fingerboard: Veneer rosewood. Unbound.
CBS Corporation acquired Fender on January 5, 1965. Guitars already in production were largely unchanged; new changes began appearing through the year. By late 1965, several CBS-era specifications were in place.
- Knobs (mid 1965): Strat-style dome knobs replaced by "witch hat" knobs — white with chrome dome top, taller and narrower. An immediately visible CBS-era marker.
- Tuners (late 1965): Kluson tuners replaced by Fender "F" style tuners — stylized "F" on tuner buttons.
- Neck binding (late 1965): White binding added to fingerboard edges. All bound-neck Jazzmasters are CBS-era.
- Inlays: Pearl dots continue (blocks not yet; that comes mid-1966).
- Logo: Transition logo continues.
- Serial: 6-digit numbers above large "F" on neck plate — the CBS neck plate.

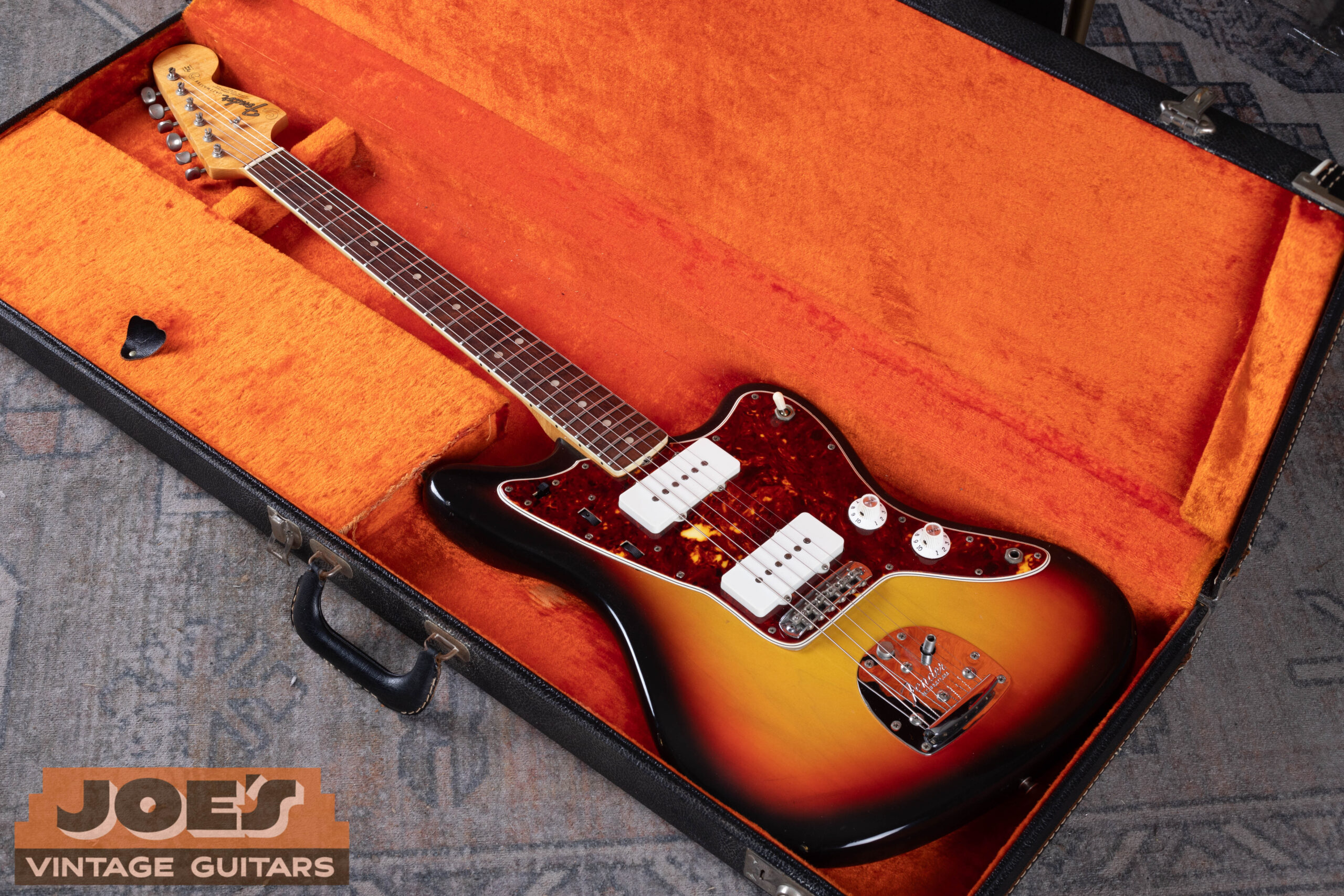

- Case: Black Tolex.
Mid-1966 brings the most visually dramatic CBS-era neck change: block inlays replace dots, establishing the appearance that will define the Jazzmaster through 1971. The bound neck with block markers is the classic late-1960s Jazzmaster look.
- Inlays (mid 1966): Pearloid block inlays replace dots. Combined with the bound neck introduced in late 1965, this creates the distinctive CBS-era neck appearance.
- Tuners: "F" style Fender tuners standard.
- Knobs: Witch hat style.
- Logo: Transition logo continues through approximately mid-1967.
- Pickguard: Plastic tortoiseshell (sunburst); white plastic (custom colors).
- Tortoiseshell color: The red-dominant celluloid pattern replaced by a browner-red plastic pattern with more black swirls.
- Finish: Nitrocellulose lacquer continues but polyester beginning to phase in.
The finish transitions from nitrocellulose to polyester in 1967–68, a significant change in both manufacturing process and aging character. The CBS black logo replaces the transition logo.
- Logo (late 1967): CBS black logo replaces transition logo. Black printing, different letterforms. "Jazzmaster" text changes to bolder block letters.
- Headstock (mid 1967): Headstock shape modified to post-1965 Strat style.
- Finish (~1967–68): Polyester finish begins replacing nitrocellulose lacquer. Poly is thicker, less prone to checking, and has different aging characteristics.
- Tuners: "F" style Fender tuners.
- Neck: Bound, block inlays. Maple cap option begins appearing.
Production quality continues to shift under CBS management. The model is increasingly out of step with the rock-oriented market dominated by Gibson Les Pauls and SGs. Sales decline.
- Finish: Polyester standard.
- Neck: Bound, block inlays. Maple cap fretboard with black binding and black block inlays available as option.
- Single-piece maple neck & maple cap option: Both available from approximately 1969 — maple cap fretboard with black binding and black block inlays, or full one-piece maple neck.
- Hardware: "F" tuners, witch hat knobs throughout.
- Tortoiseshell guard: Browner-red plastic pattern with more black swirls, fewer white chunks.
- Production: Declining. The model is headed toward discontinuation.
The Jazzmaster continues in production through 1971 before being discontinued (temporarily — it would return decades later). Late CBS-era examples reflect the full extent of the post-1965 changes.
- All CBS-era specifications: Polyester finish, F-tuners, witch hat knobs, bound neck, block inlays, CBS black logo, plastic pickguard.
- Maple neck option: Single-piece maple neck with black binding and black block inlays available.
- Production ends: The Jazzmaster is discontinued approximately 1971 in the US (Japanese production continued).
Master Specification Table
This table summarizes all major specification transitions across the full 1958–1971 production run for quick reference dating.
| Feature | 1958–mid 1959 | Mid 1959–1962 | 1962–late 1964 | Late 1964–mid 1965 | Mid 1965–mid 1966 | Mid 1966–1971 |
|---|---|---|---|---|---|---|
| Pickguard | Gold anodized aluminum | Celluloid tortoiseshell | Celluloid tortoiseshell | Plastic tortoiseshell | Plastic tortoiseshell | Plastic tortoiseshell |
| Custom color guard | Gold anodized | White celluloid | White celluloid | White plastic | White plastic | White plastic |
| Matching headstock | No | No | Yes (from spring 1962) | Yes | Yes | Yes |
| Fingerboard | Slab rosewood | Slab → Veneer (spring 1962) | Veneer rosewood | Veneer rosewood | Veneer rosewood, bound (late 1965) | Veneer rosewood, bound |
| Inlays | Clay dots | Clay dots | Clay dots → Pearl dots (late 1964) | Pearl dots | Pearl dots → Blocks (mid 1966) | Block inlays |
| Logo | Spaghetti | Spaghetti | Spaghetti → Transition (mid 1964) | Transition | Transition | CBS black (late 1967) |
| Tuners | Kluson no-line | Kluson single-line | Single-line → Double-line | Double-line → F-tuners (late 1965) | F-tuners | F-tuners |
| Knobs | Strat-style dome | Strat-style dome | Strat-style dome | Strat-style dome | Witch hat (mid 1965) | Witch hat |
| Tremolo mark | Pat. Pend. | Pat. Pend. → Patent # (mid 1961) | Patent number | Patent number | Patent number | Patent number |
| Finish | Nitrocellulose | Nitrocellulose | Nitrocellulose | Nitrocellulose | Nitrocellulose | Polyester (from ~1967–68) |
| Serial format | 5-digit | 5-digit | 5-digit / L-prefix | L-prefix | 6-digit + F plate | 6-digit + F plate |
| Neck dating | Pencil (or none) | Pencil → Stamp (spring 1962) | Rubber stamp | Rubber stamp | Rubber stamp | Rubber stamp |
Dating Checklist
Use these checks in sequence to narrow down the production date of any 1958–1971 Jazzmaster.
Step 1 — Immediate Visual Dating
- Gold anodized aluminum pickguard → 1958–mid 1959 (gold guard era)
- Celluloid tortoiseshell pickguard (warps/shrinks/cracks) → mid 1959–late 1964
- Plastic tortoiseshell pickguard (stable, doesn't warp) → late 1964–1971
- Clay dots (dull, light brown, non-reflective) → 1958–late 1964
- Pearl/pearloid dots (bright, reflective white) → late 1964–mid 1966
- Block inlays → mid 1966–1971 (CBS era)
- Unbound fingerboard → 1958–late 1965
- Bound fingerboard → late 1965–1971 (CBS era)
Step 2 — Logo & Hardware
- Spaghetti logo → 1958–mid 1964
- Transition logo (thick gold) → mid 1964–late 1967
- CBS black logo → late 1967–1971
- Kluson tuners (no-line, single-line, or double-line) → 1958–late 1965
- Fender "F" tuners → late 1965–1971 (CBS era)
- Strat-style dome knobs → 1958–mid 1965
- Witch hat knobs → mid 1965–1971 (CBS era)
- Large "F" on neck plate → 1965–1971 (CBS era)
Step 3 — Fingerboard Depth Test
- Look at headstock end at nut — thick rosewood (4–5mm) = slab board → 1958–spring 1962
- Thin rosewood (≈2mm) at nut = veneer board → spring 1962–1971
Step 4 — Internal Dating
- Read neck heel date: pencil/no date → 1958–spring 1962; rubber stamp → spring 1962 onward
- Read body date in bridge pickup cavity (visible through pickguard route)
- Read pot date codes — confirm manufacturer, year, and week
- Tremolo marking: "Pat. Pend." → 1958–mid 1961; patent number → mid 1961 onward
- Confirm serial number format is consistent with physical features
Custom Color Verification
- Gold guard on custom color → 1958–mid 1959 only
- White guard on custom color → mid 1959–1971 (celluloid then plastic)
- Non-matching headstock on custom color → mid 1959–spring 1962
- Matching headstock on custom color → spring 1962–1971
- Check for fading — Sonic Blue, Seafoam Green, Surf Green fade dramatically
- Check under pickguard and at neck pocket for original unfaded color reference
Related Resources
Joe’s Vintage Guitars
47 N Fraser Dr E
Mesa, AZ 85203
Phone: (602) 900-6635
Email: joesvintageguitars94@gmail.com
Written by Joe Dampt
“Driven by a love for classic tunes, I specialize in buying, selling, and appraising vintage guitars, bringing music and history together.”
