The Definitive 1962 Fender Stratocaster Authentication Guide: Slab Board, Black Pickups & Pre-CBS Details
Authentication Guide · Fender Solid Body · 1962
The complete year-specific reference for dating and authenticating a genuine 1962 Fender Stratocaster — the slab-to-veneer transition, black-bottom pickups, serial numbers, pot codes, and every pre-CBS detail that matters
- Why 1962 Is a Benchmark Year
- At-a-Glance Specifications
- Serial Numbers & Dating
- The Neck: Slab vs. Veneer Rosewood
- Body, Wood & Finish
- Pickguard & Controls Layout
- Pickups & Wiring
- The Synchronized Tremolo Bridge
- Hardware, Knobs & Jack
- Headstock, Logo & Tuners
- Dating From the Inside Out
- Custom Colors
- Reissues, Fakes & Modifications
- Authentication Checklist
- Original Case & Accessories
- Related Resources
Why 1962 Is a Benchmark Year
The 1962 Fender Stratocaster occupies a singular position in the instrument's history. It sits at the precise end of what collectors consider the first golden age of Stratocaster production — pre-CBS, pre-veneer, and built at the Fullerton factory at the peak of Leo Fender's quality control. CBS acquired Fender in January 1965, and while the guitars didn't change overnight, the slow drift toward cost-cutting had already begun by 1964. A genuine 1962 Stratocaster predates all of that.
The year's defining authentication challenge is the slab-to-veneer rosewood fingerboard transition that occurred in mid-1962. This single change — from a thick, flat-bottomed slab of rosewood to a thinner curved veneer — is the most consequential physical divide in vintage Stratocaster collecting. Early 1962 examples with the slab board are more desirable and more valuable than late 1962 examples with the veneer board. Knowing which you have, and how to prove it, is the core task of authenticating a 1962.
1. Slab or veneer rosewood fingerboard? Slab boards run from 1959 through approximately mid-1962; veneer boards from mid-1962 through approximately 1983. Both are correct for 1962 depending on production date. Slab examples command a significant premium.
2. Do the pickups have black fiber flatwork on the bottom? Black-bottom pickups are correct for all pre-CBS Stratocasters including 1962. Gray flatwork appeared later, around 1964, and continued into the CBS era — so gray bottoms actually indicate a later, not earlier, instrument. This is one of the most commonly misunderstood authentication details.
3. Do the pot codes confirm 1962? Pot codes provide the earliest possible assembly date and are the most reliable internal dating tool. A guitar claiming to be a 1962 with pot codes from 1964 or 1965 is not a 1962.
4. Is the finish original? Refinished Stratocasters are extremely common — the value difference between an original-finish and refinished pre-CBS Strat is enormous. A sunburst should show the characteristic three-tone fade; custom colors should show the correct aging and checking pattern for nitrocellulose.
At-a-Glance Specifications
These specifications reflect standard 1962 production. Where the slab/veneer transition creates a split, both variants are noted. All changes from 1961 are marked.
Serial Numbers & Dating
Like all pre-CBS Fender instruments, the 1962 Stratocaster serial number is an unreliable standalone dating tool. Neck plates were produced in batches and stored, then assigned by assemblers who grabbed from bins without regard for sequence. The serial number places a guitar in a broad era — it does not confirm the year.
The Neck Plate Serial
The serial number is stamped on the plain chrome 4-bolt neck plate on the back of the body. For 1962 production the approximate range is 80000 to 99999 — five digits, no prefix letter. This range overlaps significantly with late 1961 and early 1963 production.
A critical dating marker: the L-series serials began in January 1963. L-series serials have a prefix letter "L" followed by five digits (e.g., L00001). If a claimed 1962 Stratocaster has an L-series serial, either the neck plate has been swapped, or the guitar was built in 1963 or later. Conversely, a 5-digit serial in the 80000–99999 range is consistent with 1962 but not conclusive.
Fender serial plates from this era are notoriously unreliable for precise dating. Always cross-reference: neck heel date + body date + pot codes + physical features. The serial is an era indicator, not a year confirmation. See our complete Fender serial number guide for the full dating framework.

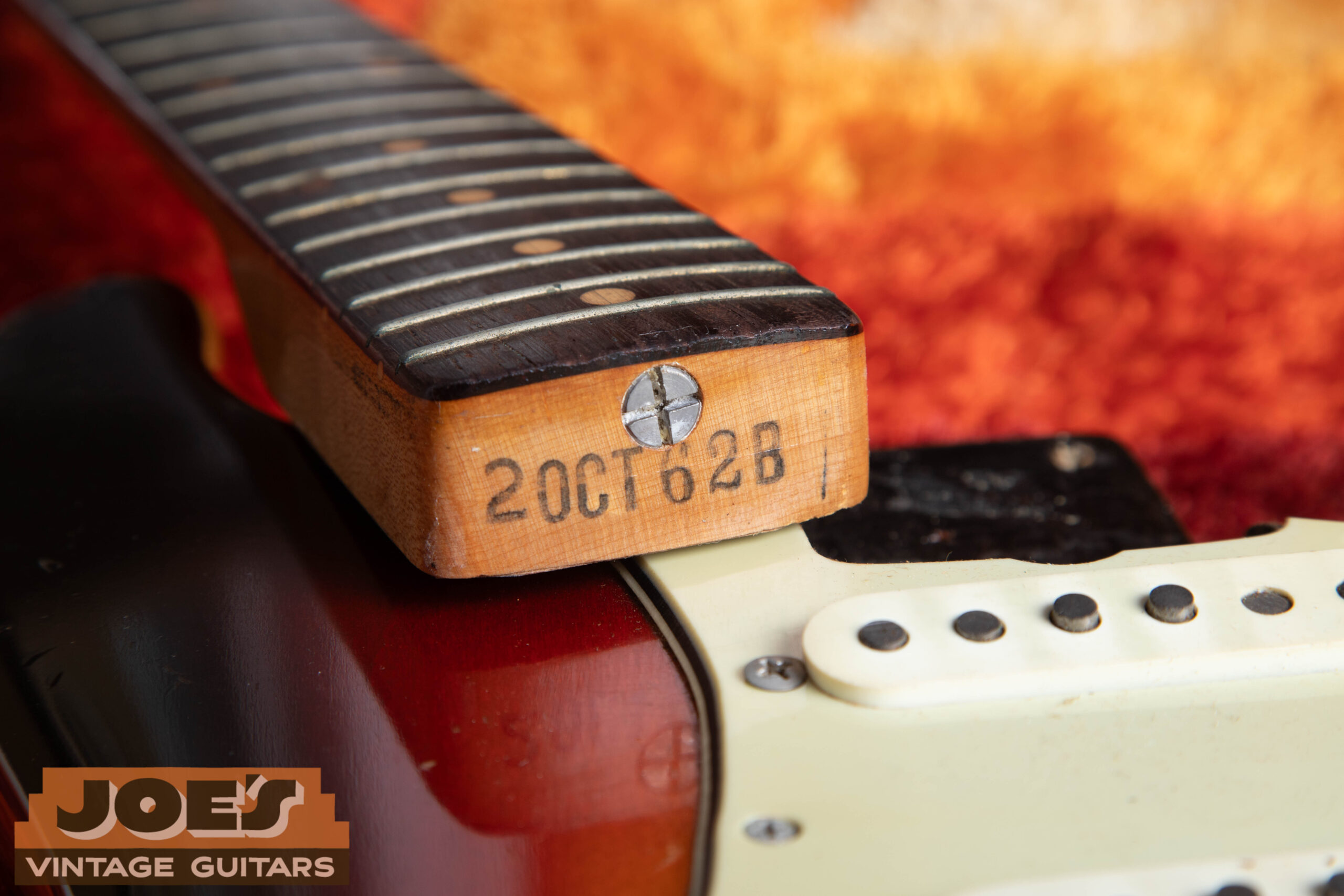

The Neck Heel Date
The most reliable single dating reference on a pre-CBS Fender is the penciled or stamped date on the butt end of the neck heel, visible only when the neck is removed from the body. By 1962, Fender had resumed rubber-stamping dates after the mid-1959 pencil moratorium. The date appears in a month-year format (e.g., "3-62" for March 1962 or "9-62" for September 1962) stamped into the wood.
On a genuine 1962, the stamp ink will have aged and partially absorbed into the wood grain. Fresh-looking stamps on wood that shows other signs of age are suspicious. The stamp is always on the butt end of the heel — never on the face of the heel or on the side.
The Body Date
Fender penciled a date inside one of the body's routed cavities. On a 1962 Stratocaster this is most commonly found in one of the pickup cavities or in the tremolo spring cavity on the back of the body — not in the neck pocket as on some other Fender models. Check the middle or neck pickup route first, then the trem cavity if not found there. The date is in M-YY format (e.g., "6-62" for June 1962) and reflects when the body was routed and prepared, which may precede final assembly by weeks or several months. A body date and neck date differing by a few months are normal.

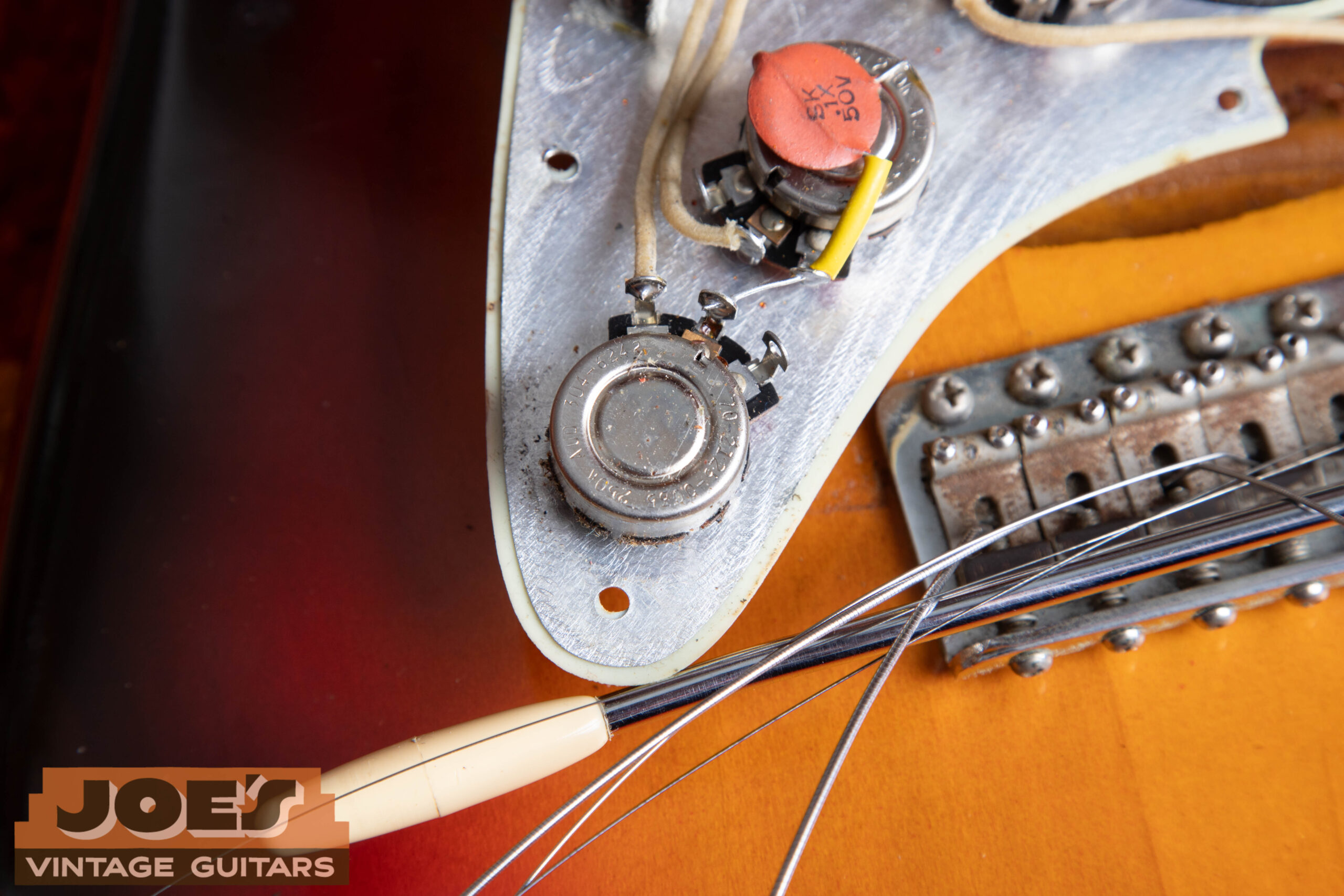

Potentiometer Date Codes
The three pots in the control cavity carry manufacturer-stamped date codes in the format MFRYYWW: manufacturer code, year (2 digits), week (2 digits). Common 1962 Fender pot manufacturers:
- Stackpole (304)Most common. A code reading "304 6232" = Stackpole, 1962, week 32 — assembled no earlier than approximately mid-August 1962.
- CTS (137)Common alternative. "137 6215" = CTS, 1962, week 15 — assembled no earlier than approximately mid-April 1962.
- Centralab (134)Less common by 1962 but still appears. Same date code format applies.
The pot code gives you the earliest possible assembly date. Always read all three pots — the latest date code sets the floor. A pot reading significantly later than the neck date indicates a replaced pot.
Remove the 11 pickguard screws and lift the guard carefully — the wiring harness is attached. The three pots are soldered to the pickguard. The date code is stamped on the back of the pot casing. A flashlight and a magnifier make reading them much easier without fully removing the harness.
The Neck: Slab vs. Veneer Rosewood
The transition from slab to veneer rosewood fingerboard is the single most important feature distinction in 1962 Stratocaster authentication. It affects value, desirability, and historical placement within the year's production. Understanding it in detail is essential.
Introduced on the Jazzmaster in 1958 and adopted across all Fender models in 1959. The rosewood fingerboard is a thick, flat-bottomed slab approximately 4.8mm deep, glued directly onto the flat-milled top of the maple neck blank.
- Period: 1959 through approximately mid-1962
- Thickness: ~4.8mm — visibly substantial at the headstock end
- Underside: Completely flat — milled flat to match the flat-top neck blank
- Value: Commands a premium over veneer examples from the same year
- Rarity in 1962: Early-year production only — increasingly scarce as 1962 progresses
The replacement introduced in mid-1962, used on all rosewood-board Stratocasters through approximately 1983. The rosewood is a much thinner curved veneer (~2mm) whose underside follows the radius of the neck, requiring a curved top on the neck blank.
- Period: Mid-1962 through ~1983
- Thickness: ~2mm — noticeably thinner at the headstock end
- Underside: Curved, following the neck radius
- Value: Still a desirable pre-CBS example, but lower than slab
- Note: Does not affect playability — purely a collector distinction
How to Identify Slab vs. Veneer
The definitive test is to look at the headstock end of the neck from the front, where the rosewood meets the maple at the nut. The depth of the rosewood relative to the maple is immediately visible:

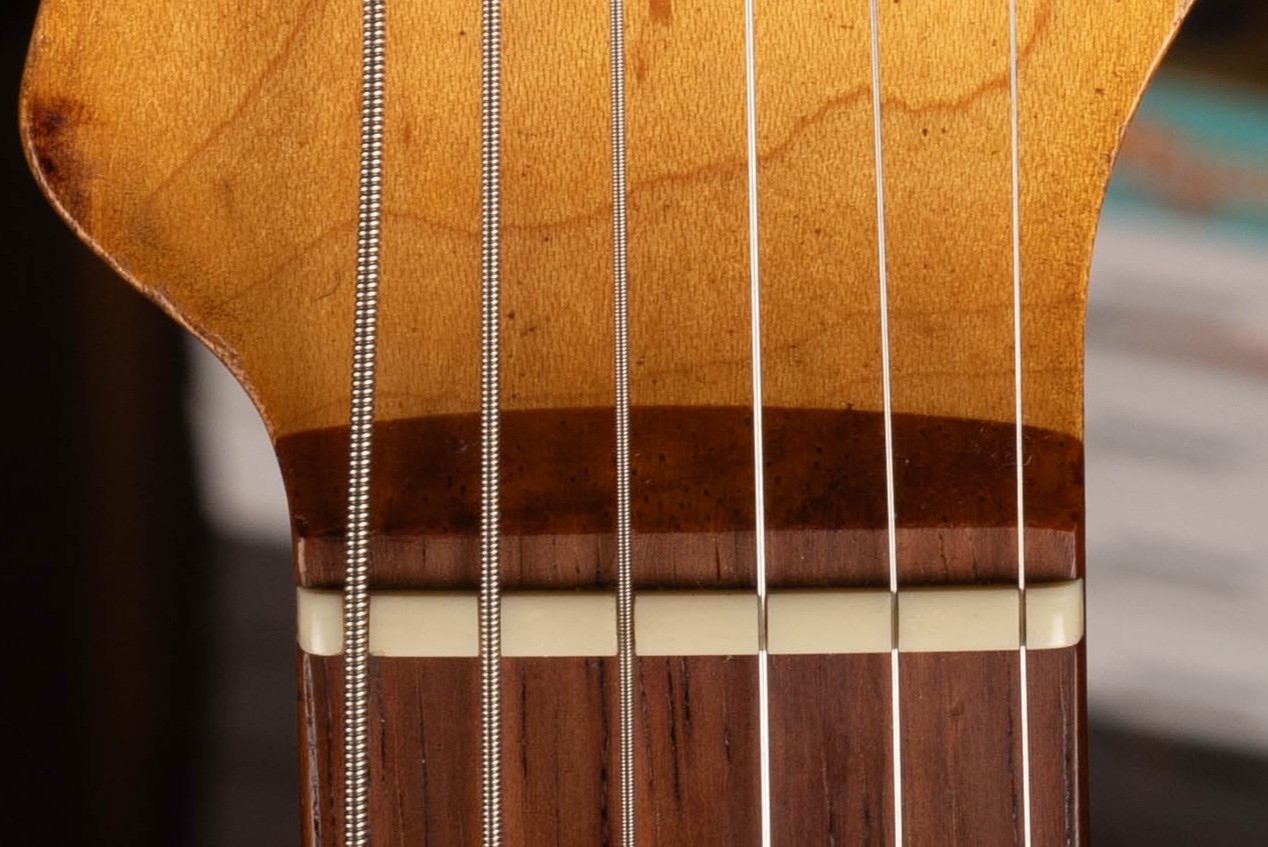

- Slab — depth at nutThe rosewood occupies a significant portion of the neck depth at the headstock end. The glue line between rosewood and maple sits well below the fretboard surface — approximately halfway down the neck thickness or more.

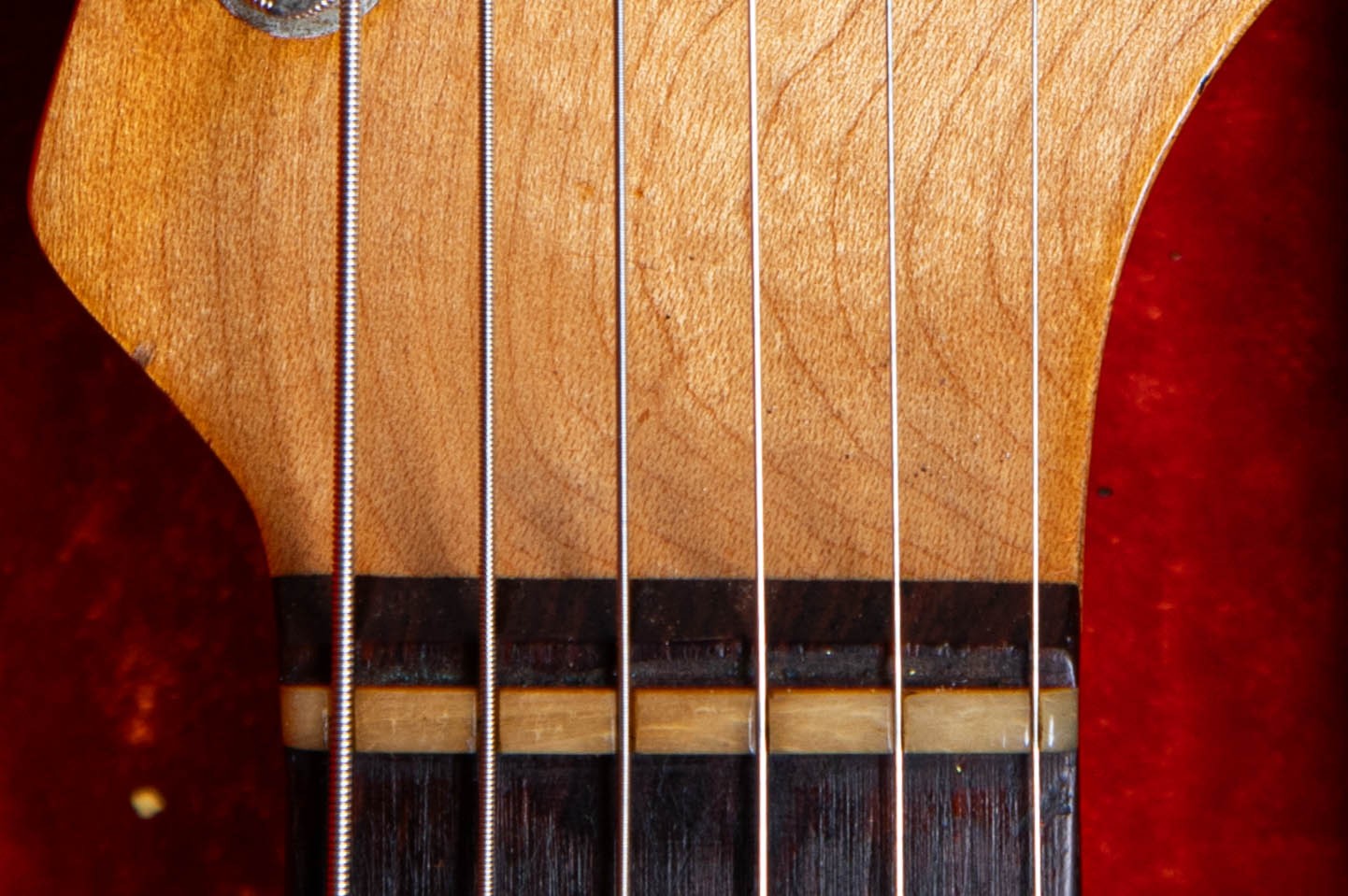

- Veneer — depth at nutThe rosewood is much thinner — only about 2mm. The maple neck wood is visible much higher up, and the glue line sits very close to the fretboard surface. The difference is immediately apparent compared to a slab.
- Skunk stripeBoth slab and veneer boards have a walnut skunk stripe on the back of the neck — the truss rod channel. The stripe should show the same aging as the rest of the neck finish. A missing or replaced skunk stripe suggests a non-original neck.
- Truss rod accessBoth types adjust at the body end of the neck (neck heel), not at the headstock. Headstock truss rod access is a post-1971 feature — any pre-CBS claimed Strat with headstock truss rod access has a non-original neck.
- Clay dot inlaysAll 1962 rosewood-board Stratocasters use clay dot inlays — dull, matte, slightly chalky. They age to an off-white or yellowish tone. Shiny, bright pearloid dots are incorrect for any pre-1965 Fender.
A slab-board 1962 Stratocaster can be worth substantially more than a veneer-board example from the same year with otherwise identical specifications. The slab board is thicker, tonally distinct to many players, and historically significant as the design Leo Fender intended when he introduced the rosewood fingerboard. If you're evaluating a claimed early-1962 and the seller hasn't mentioned slab vs. veneer, look before you buy.
Neck Profile
By 1962 Fender had settled into what collectors call the slim "C" profile — a comfortable oval-to-C cross-section that is thinner front-to-back than the chunky "V" profiles of 1954–1957. The 1962 neck is not as thin as the very narrow profiles that appeared on some CBS-era Strats, but it is distinctly slimmer than any 1950s example. Players accustomed to vintage Telecasters sometimes find the 1962 Strat neck slightly thinner than expected. This is correct and period-authentic.
Body, Wood & Finish
Body Wood
The standard 1962 Stratocaster body is alder — a light, even-grained hardwood with a moderate weight that Fender adopted for non-transparent finishes in 1956. The choice of alder for sunburst and custom color bodies was driven by its tighter grain and superior paint adhesion compared to ash. On a genuine 1962 body, the wood grain should be subtly visible through the lacquer at oblique angles even on opaque finishes.
Ash bodies are correct for blonde Stratocasters — the standard wood for that finish in 1962. Ash was used for blonde because its pronounced grain shows attractively under the semi-transparent blonde lacquer. If a claimed 1962 sunburst or custom color has an ash body rather than alder, that warrants investigation.
Body Contours
The Stratocaster's double-cutaway contoured body is one of Leo Fender's most distinctive designs — the forearm comfort cut on the top edge and the ribcage belly cut on the back were unique features in 1954 and remain hallmarks of the instrument. On a genuine 1962 body, both contours should be smooth, well-defined, and show the same finish aging as the rest of the body. Sharp, fresh-looking contours on an otherwise aged body suggest a refinish or body replacement.
Unlike the Telecaster (where the body date is under the bridge plate), the 1962 Stratocaster body date is penciled inside one of the pickup cavities — typically the middle or neck pickup route — or inside the tremolo spring cavity on the back. Check these locations with the pickguard removed and the spring cover off. The neck pocket on a Stratocaster typically does not carry the body date.

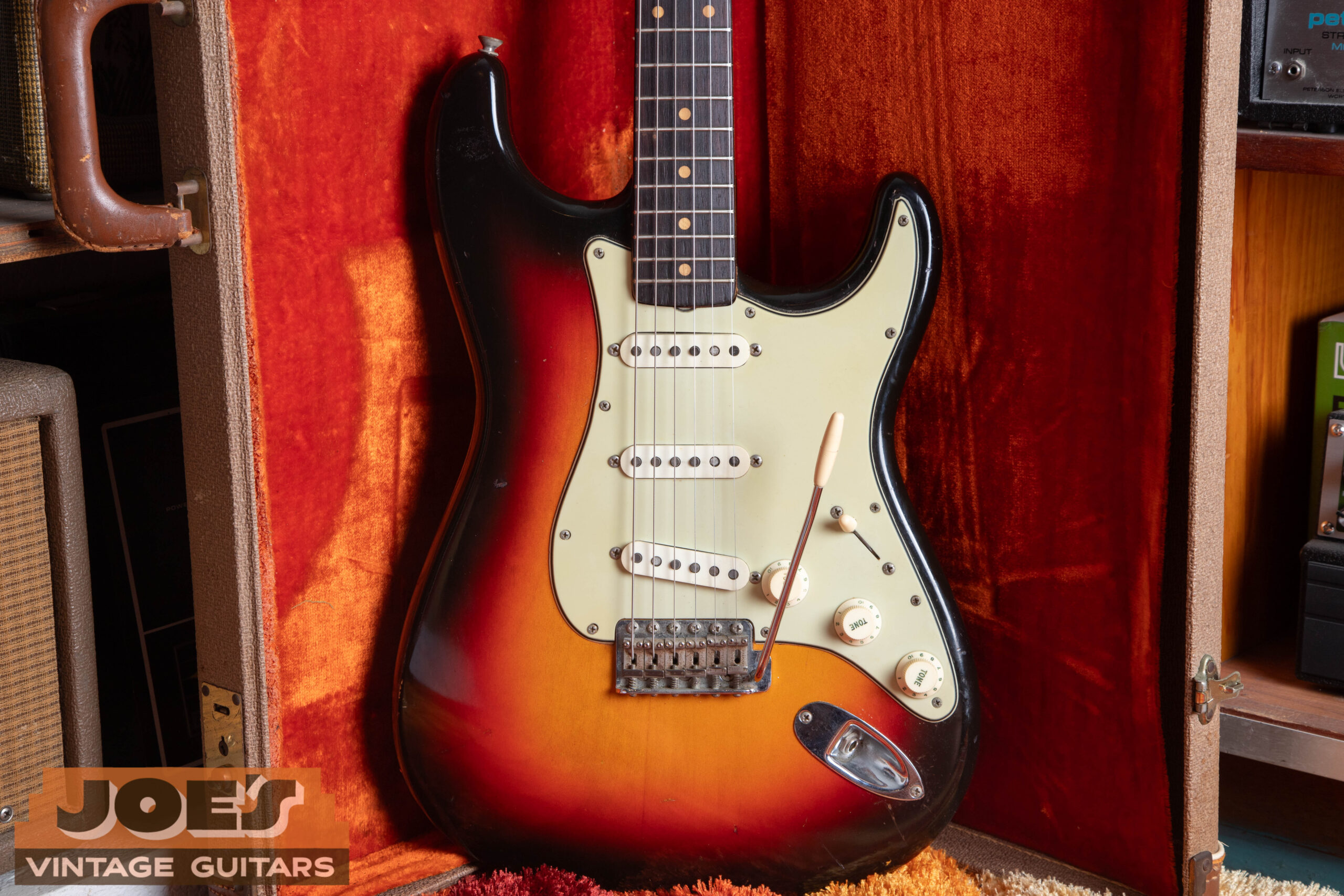

3-Color Sunburst Finish
The standard finish for the 1962 Stratocaster is the 3-color sunburst: a center of yellow or amber, transitioning to orange, then to a dark brown or black at the edges. This replaced the earlier 2-color sunburst (yellow to black, no orange layer) in 1958. The 3-color was the standard through the CBS era and beyond.
On a genuine original-finish 1962 sunburst, the yellow center will have faded and the orange layer may have shifted toward amber or brown with age. The dark outer edge holds its color better than the middle layers. Under UV light, the yellow and orange layers often fluoresce differently than a modern refin — experienced appraisers use UV inspection routinely on sunburst Strats.
Checking patterns in the nitrocellulose lacquer are a positive aging indicator — nitro checks (fine cracks in the finish) develop over decades. Modern polyester or polyurethane finishes used on refins don't check the same way. However, checking can be artificially induced, so it's a supporting indicator rather than definitive proof.

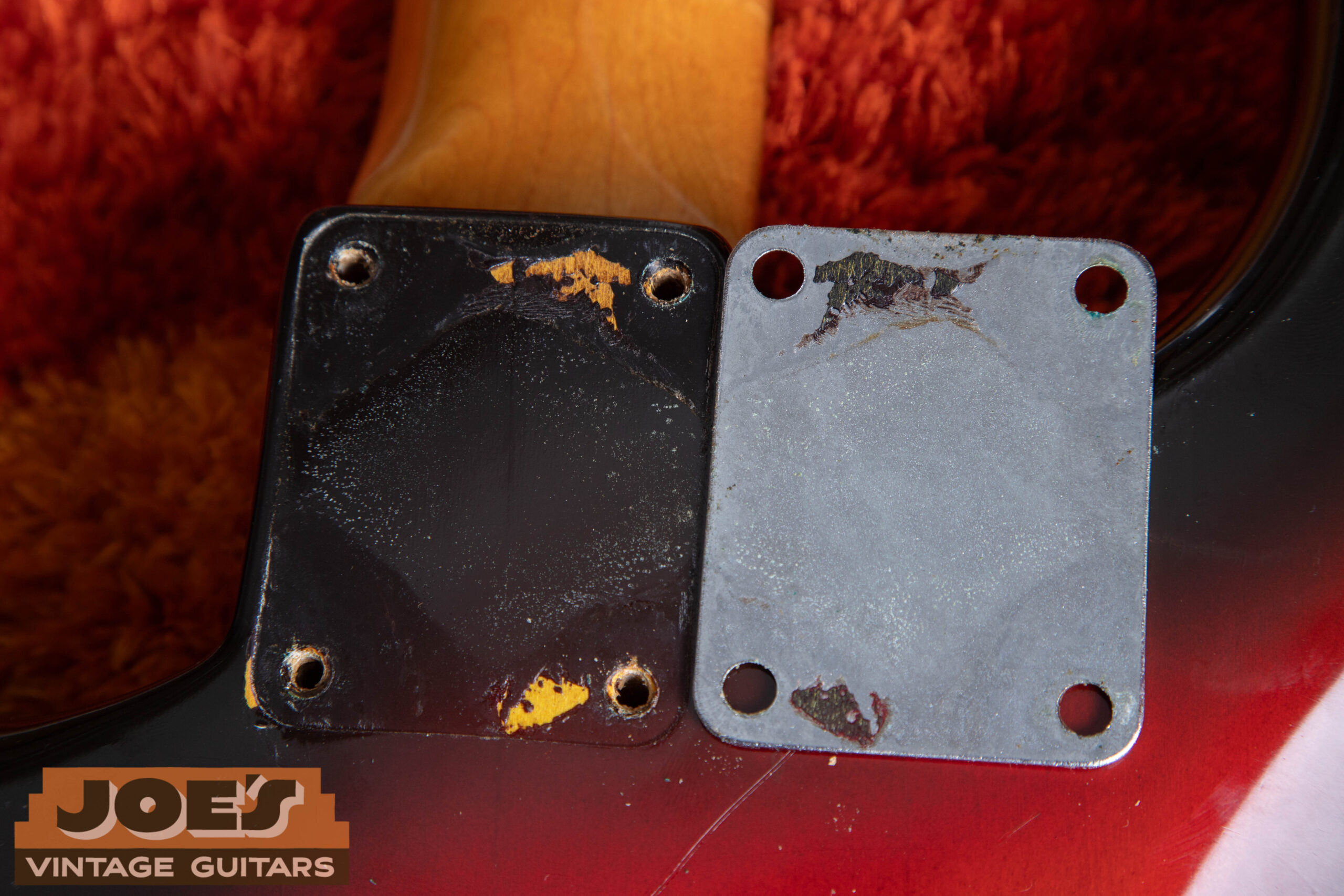

The "Puzzle Piece" Finish Tell
One of the most compelling authentication details on an original-finish pre-CBS Stratocaster is the "puzzle piece" pattern visible under the neck plate. When a guitar is finished before the neck plate is attached, lacquer builds up around the plate's footprint. Over decades, the finish checking and wear pattern on the neck heel area of the body follows the exact outline of the plate — chips, cracks, and lacquer lifting conform precisely to the plate's edge.
When you remove the neck plate, you should see a clearly defined area of less aged or protected finish underneath exactly matching the plate's shape. More tellingly, any finish chips or checking that cross the plate boundary should match up perfectly — a chip that starts on the exposed body and continues under the plate, or checking patterns that continue across the boundary, confirm the plate has never been removed or swapped. If the finish under the plate looks dramatically different (fresher, differently checked, or if chips along the edge don't align), the plate may not be original to this body.

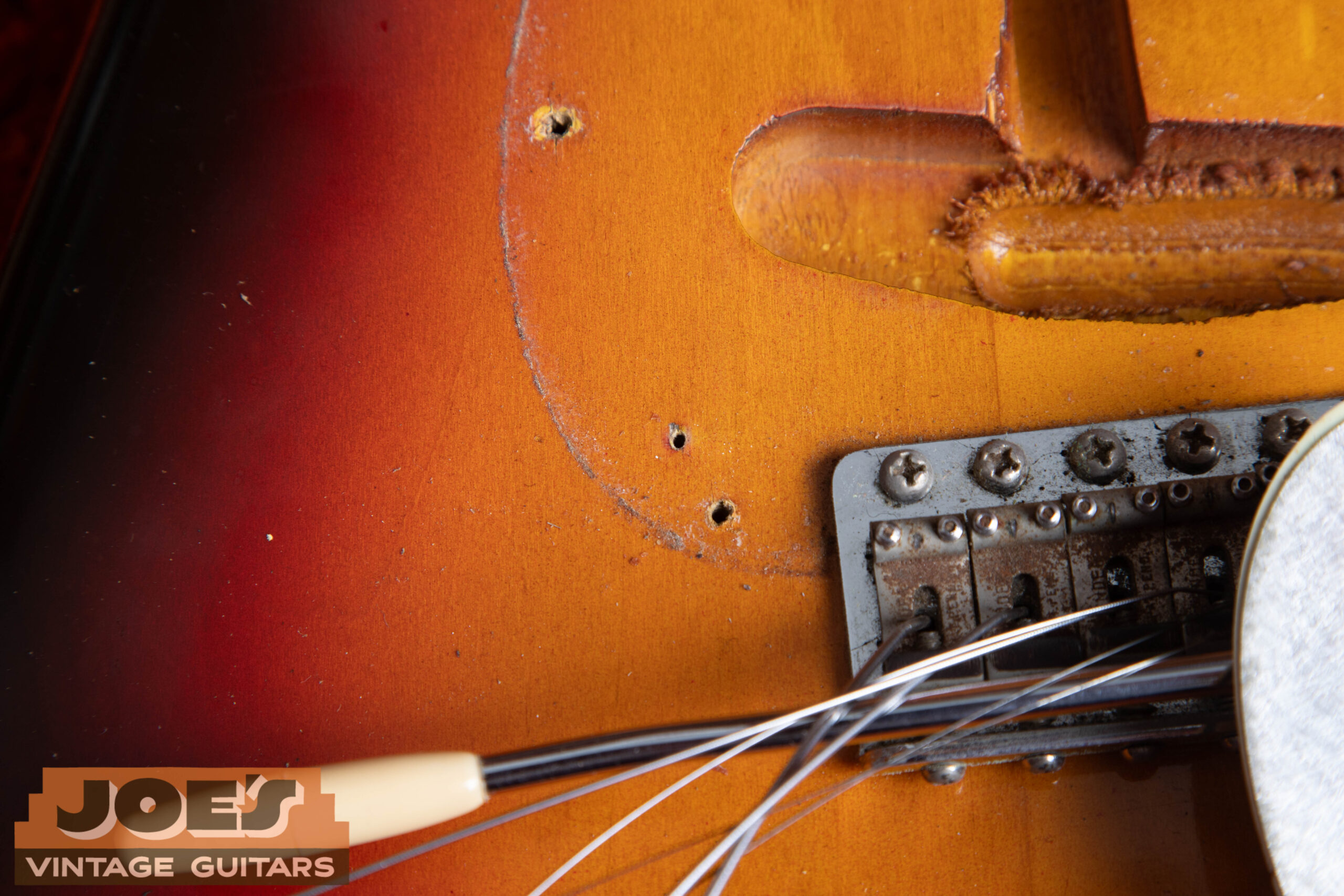

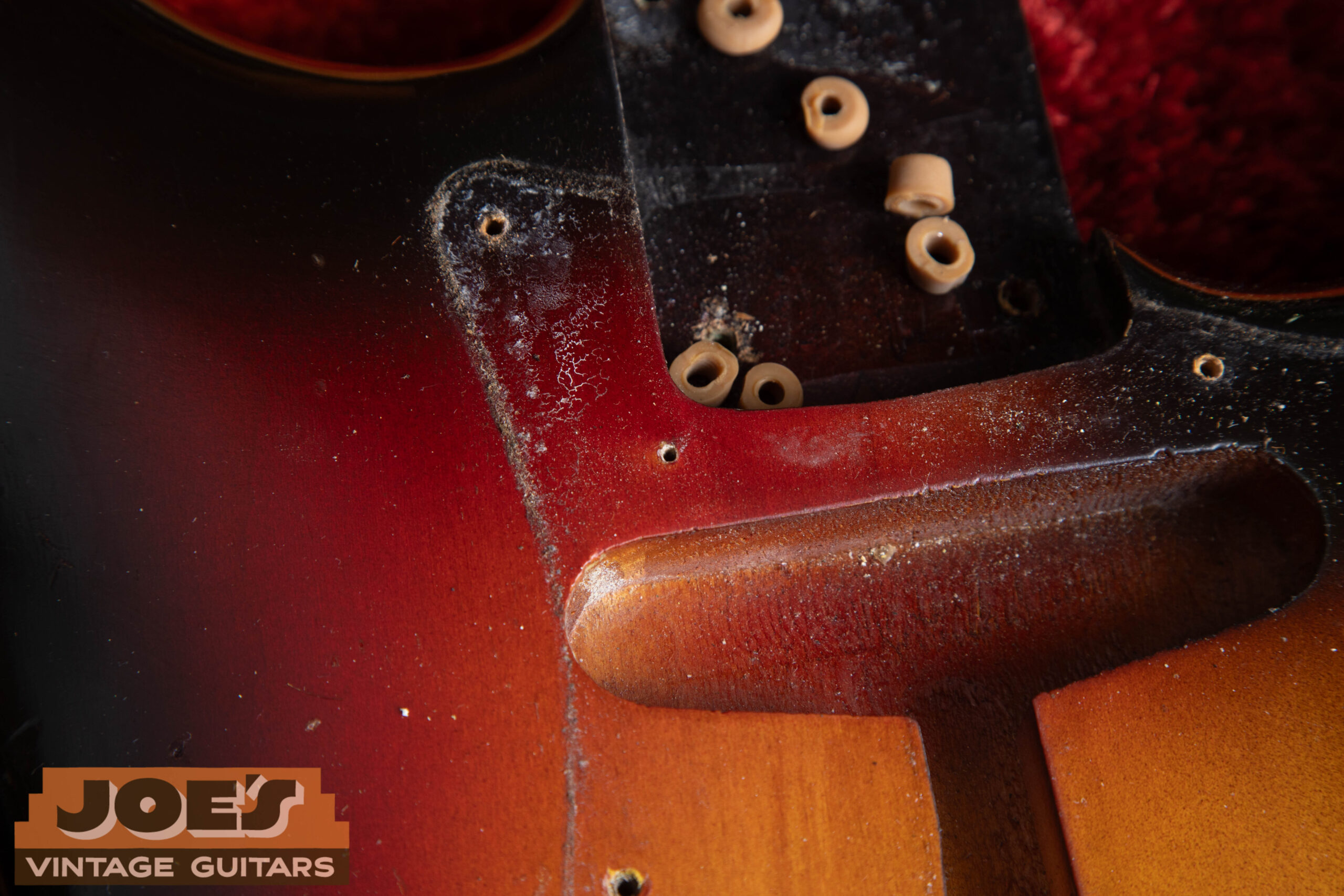

Nail Holes
Fender suspended bodies from nails during the finishing process — the nail was driven in first, then the body was sprayed. On a 1962 Stratocaster the nail holes are on the face of the body, hidden under the pickguard. The critical authentication point: because the nail was in place during spraying, it masked the inside of the hole from the finish. A genuine original nail hole should have bare, unfinished wood inside — the lacquer never reached it. If the inside walls of a nail hole show finish coating, the body was refinished after the nail was removed, with lacquer flowing into the now-empty hole. On a genuine 1962, lift the pickguard and look inside the nail holes with a light — bare wood inside is correct.
Pickguard & Controls Layout

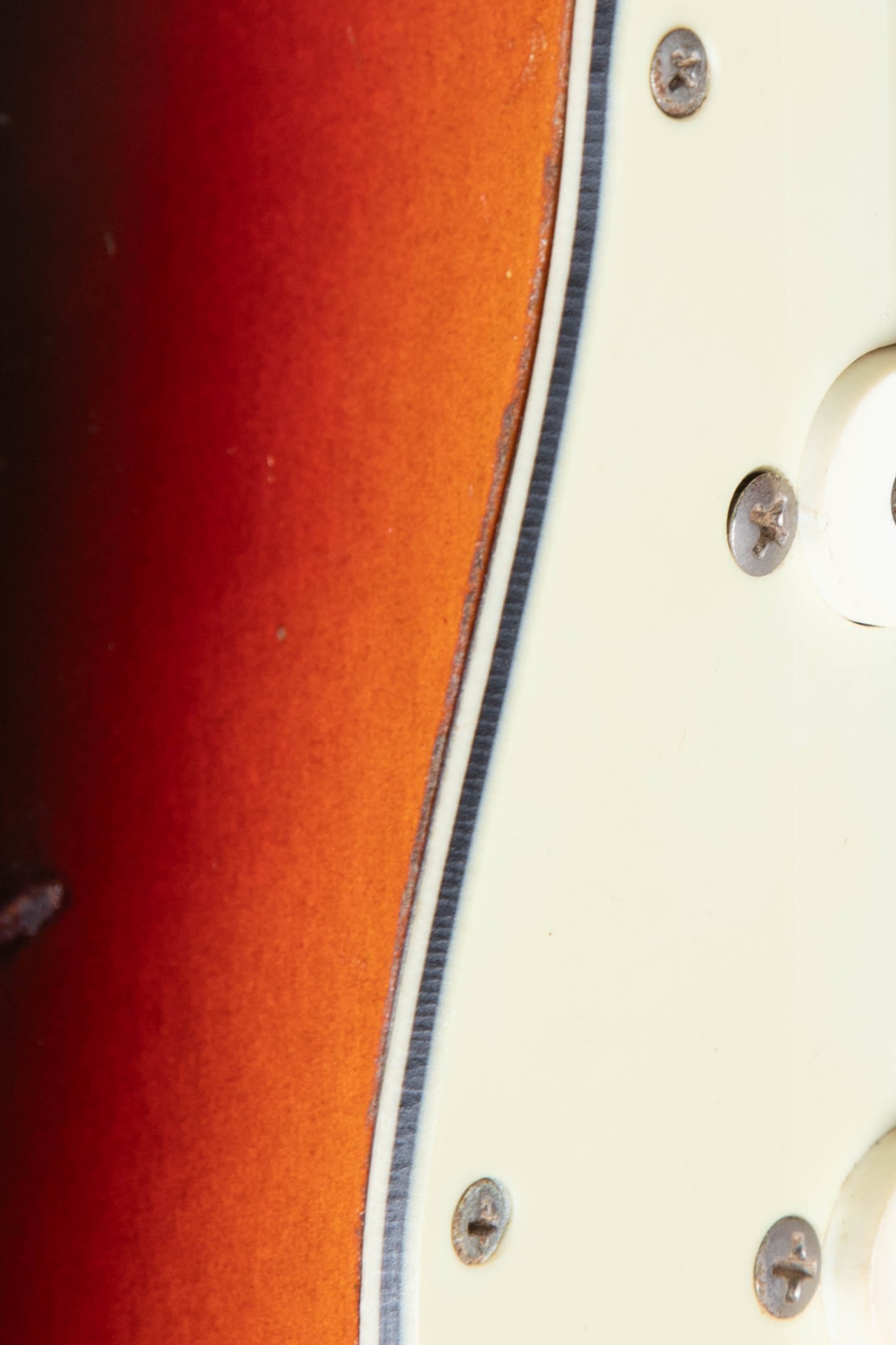

The 3-Ply Pickguard
The 1962 Stratocaster uses a 3-ply white/black/white pickguard — the three layers visible at the edge as a white-black-white sandwich. This replaced the single-ply anodized aluminum guard (1954–1959) and the single-ply white celluloid guard (briefly used in the transition). By 1959–1960 the 3-ply celluloid guard was standard, and it remained so through the CBS era. The 1962 guard has 11 mounting screws.
The original 1962 pickguard will show visible aging — slight warping or cupping from decades under string tension. Importantly, the outer white layer of genuine pre-CBS 3-ply guards ages to a distinctive mint green color over time, caused by the off-gassing of the celluloid material. This mint green aging is a hallmark of an original period guard and is very difficult to replicate convincingly on a reproduction. A guard that remains bright white after 60+ years is more likely a replacement. The screw holes should show the same chrome oxidation as the hardware.
The Stratocaster pickguard is one of the most frequently replaced parts on vintage examples. Players crack them, break screw ears, or swap them for different colors. A replacement guard is not automatically a red flag, but if the replacement doesn't match the period spec (wrong ply count, wrong screw count, wrong material), note it. More importantly, the screw holes in the body should show their original patina — fresh holes suggest the guard was removed and replaced repeatedly or the body was refinished.
Controls Layout
The 1962 Stratocaster control layout is fixed: master volume, neck pickup tone, middle pickup tone — with no bridge pickup tone control. The bridge pickup runs entirely without a dedicated tone control on vintage Strats. This layout was standard from 1954 through the present day on vintage-spec instruments.
The 3-way pickup selector switch is positioned on the upper bout, angled at approximately 45 degrees. A crucial authentication point: the 5-way switch was not introduced until 1977. Any claimed 1962 Stratocaster with a 5-way switch has had the switch replaced. This is an extremely common modification — players discovered in the 1960s and 70s that balancing the 3-way switch between positions produced desirable "in-between" tones, which led Fender to officially adopt the 5-way in 1977. The original 3-way switch has two visible positions rather than five.
Knobs
The 1962 Stratocaster uses white plastic "dome" knobs — round-topped with a flat skirt and a knurled edge. These are sometimes called "Strat knobs" or "top-hat knobs" in the vintage community. They are white (aging to cream) and made of a plastic that becomes slightly brittle with age. The volume knob is typically positioned closer to the strings and wears differently than the tone knobs — look for consistent aging across all three.
The knobs fit push-on over a splined shaft. Original knobs should fit snugly without wobble. Replacement knobs (if not correct period parts) may fit loosely or show different aging.
Pickups & Wiring

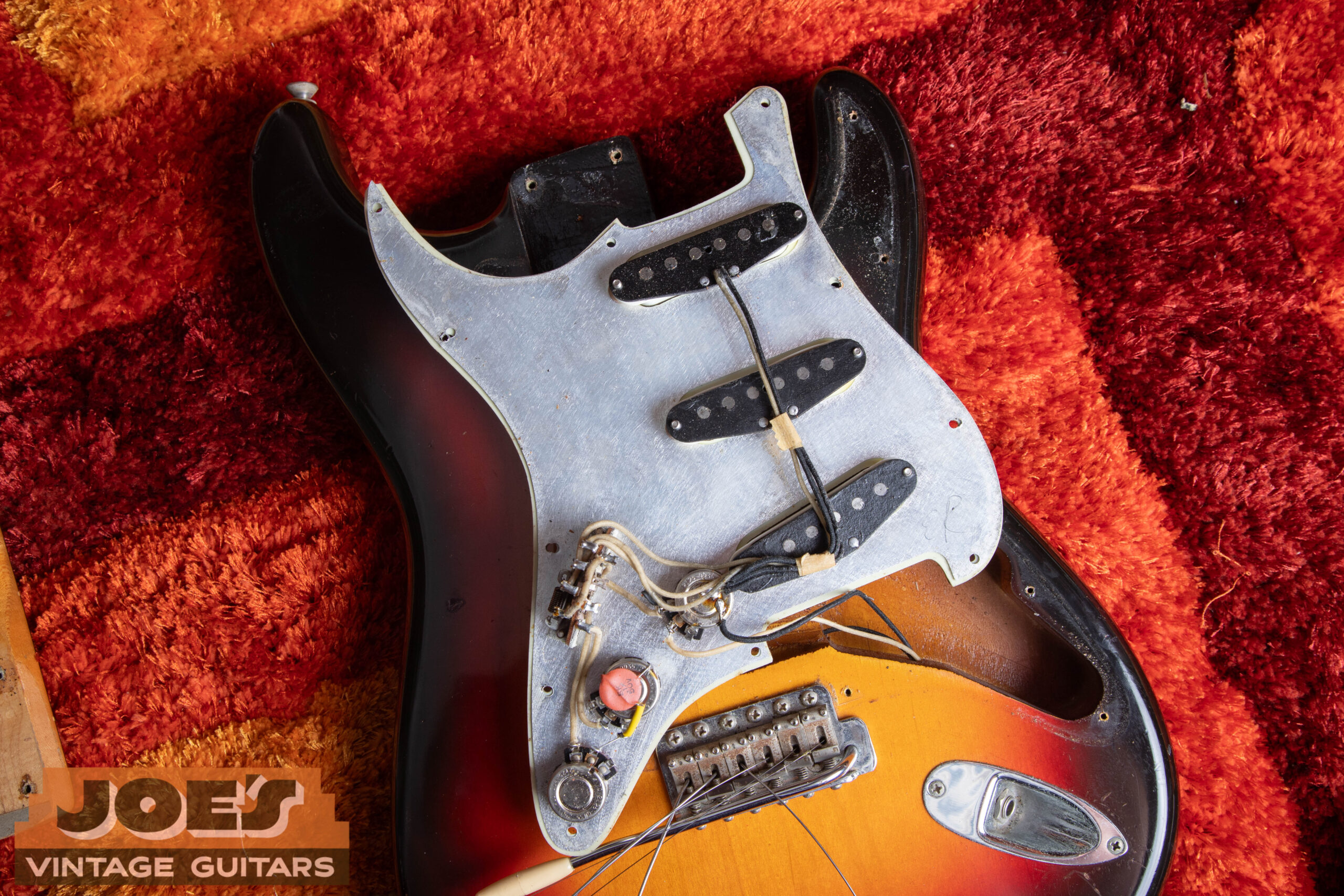

Black-Bottom Pickups — The Key Authentication Detail
The single fastest authentication check on any claimed pre-CBS Stratocaster is to look at the bottom of the pickups. Genuine pre-CBS Fender Stratocaster pickups use black fiber flatwork on the bobbin bottom — the flat base plate from which the pole pieces extend. This black color is the correct specification for all 1962 production. Gray flatwork appeared later, around 1964, and continued into the CBS era — counterintuitively, gray bottoms indicate a later instrument, not an earlier one. This is one of the most commonly confused details in vintage Strat authentication.
Accessing the pickup bottoms requires removing the pickguard. With the guard removed and the pickups flipped, look at the bottom bobbin: a genuine 1962 should show black fiber flatwork. Gray flatwork on a claimed 1962 indicates either a replacement pickup from a later period or a misidentified instrument.
This is one of the most widely misunderstood details in vintage Strat collecting — the common assumption that gray bottoms are pre-CBS is incorrect. Black fiber flatwork is correct for all genuine 1962 Stratocaster pickups. Gray flatwork came in around 1964. If a claimed 1962 has gray-bottom pickups, they are either replacements from a later period or the guitar itself is not a 1962. Check all three pickups — they should all match.
Pickup Specifications
- Coil wireFormvar-coated wire — the yellow-orange wire insulation visible on the coil windings. Formvar was used through approximately 1964–65; plain enamel wire indicates a rewind or replacement.
- Lead wiresThe two wires running from each pickup to the wiring harness are black and white cloth-covered — a black-insulated wire and a white-insulated wire with braided cloth over each. Plastic-insulated lead wires indicate a replacement pickup or rewound unit. All three pickups should have matching black/white cloth leads.
- Pole piecesStaggered on all three pickups — the bass-side poles (E, A, D) are taller than the treble-side poles (G, B, E) to compensate for output imbalance between wound and plain strings. Non-staggered poles on a claimed 1962 are a mismatch.
- DC resistanceNeck pickup: approximately 5.5–6.5k ohms. Middle and bridge pickups: approximately 5.8–6.8k ohms. Readings significantly outside these ranges suggest a rewind. Bridge pickups typically read slightly higher than neck.
- Wax pottingPre-CBS Fender pickups are wax-potted — dipped in paraffin wax to prevent microphonic feedback. Original potted pickups show a slight wax coating on the flatwork and sometimes on the cover base. Un-potted pickups may squeal at high volumes.
- Pickup coversWhite plastic, same material as the knobs. All three covers should show consistent aging — if the bridge pickup cover is noticeably whiter or more brittle-looking than the neck pickup cover, one has been replaced.
- Pickup datesA date may be stamped or hand-written on the bottom of the pickup bobbin or on a piece of tape wrapped around the base. Not always present, but when found it is a strong corroborating dating tool.
Wiring & Electronics
- Wire insulationAll internal hookup wiring should be cloth-covered — the braided cloth over the wire core was standard pre-CBS practice. Plastic-insulated wiring throughout indicates non-original wiring.
- Tone capacitorsThe 1962 Stratocaster tone capacitors are ceramic disc caps, typically 0.1mfd or 0.05mfd. Earlier round brown paper caps also appear. Bumblebee caps are Gibson parts; modern orange drop caps are replacements. Neither is original to a 1962 Strat.
- Pot valuesAll three pots are 250k ohms — master volume and both tone controls. Higher-value pots (500k, as used on Gibson) indicate replacements. Reading significantly away from 250k after 60+ years of drift is possible on original pots.
- Switch3-way CRL switch — original Stratocaster switches are marked "CRL" (Chicago Roller Skate) on the housing. A 5-way switch is a post-1977 replacement. An original 3-way that has been modified with toothpick wedges (to hold in-between positions) is a very common period modification that does not diminish authenticity.
- Output jackSwitchcraft 1/4" jack recessed into an angled chrome jack cup on the lower side of the body. The cup is secured by two screws. All lead wiring to the jack should be cloth-covered.
The Synchronized Tremolo Bridge
The Fender Synchronized Tremolo — introduced on the Stratocaster in 1954 — is one of Leo Fender's most significant engineering contributions. Unlike the Bigsby and Kaufman vibratos that preceded it, the synchronized tremolo maintains relative tuning across all six strings by pivoting on six screws and returning to the same position. The 1962 bridge is unchanged from the original design in all essential respects.
Bridge Plate & Block
- Bridge plateA chrome-plated steel plate that pivots on six mounting screws. The six screws engage a knife edge on the front of the plate. On a well-set-up original, the back of the plate should float slightly above the body surface.
- Tremolo blockA heavy steel sustain block hanging below the bridge plate into the routed spring cavity. The block has six string channels and six intonation screws. The mass of the block contributes significantly to the Stratocaster's tone and sustain — lighter zinc blocks (used on some later and cheaper models) produce a noticeably thinner tone.
- Block materialThe original 1962 tremolo block is steel — cold to the touch, heavy, and magnetic. Zinc blocks (used on many reissues and cost-reduced versions) are lighter, warmer to the touch, and non-magnetic. Weight the block if you can access it.
- SaddlesSix individual threaded steel saddles — one per string. Each saddle is adjustable for height (via two height screws) and intonation (moving fore and aft on the block). The saddles are chrome-plated and show characteristic rust pitting on original examples after 60+ years.
- Tremolo armA thin chrome steel arm with a white plastic tip, threaded into the block. Original tips are slightly yellowed with age and have a characteristic translucent quality. Replacement tips are often bright white and opaque.
Spring Cavity & Back Plate
The tremolo operates by tension against three springs (standard configuration) mounted in a routed spring cavity on the back of the body. The spring claw is adjusted with two screws to balance the spring tension against string tension. Original spring cavities on 1962 bodies will show the natural wood color — no paint, no shielding. Black shielding paint in the spring cavity is a non-factory addition.
The spring cavity is covered by a single-ply white plastic back plate secured by five screws. The plate on a genuine 1962 will show aging consistent with the rest of the instrument. A bright white, unworn plate on an otherwise well-played guitar suggests a replacement.
Many 1962 Stratocasters were set up with the tremolo "decked" — the back of the bridge plate resting flat on the body rather than floating above it. This was a common player modification for improved tuning stability at the cost of down-only tremolo travel. Evidence of decking (screw marks on the body from the six pivot screws being tightened down) is period-authentic and does not affect authenticity.
Hardware, Knobs & Jack
Neck Plate
The 4-bolt plain chrome neck plate carries only the serial number — no Fender logo, no model name. The four Phillips-head screws secure the neck. The plate on an original 1962 will show the characteristic electrode mark from the chrome plating process — a slightly rougher or differently-textured spot visible on the chrome surface. The neck pocket fit should be snug; a loose pocket often indicates a neck swap.
Strap Buttons
The Stratocaster has two chrome barrel-style strap buttons — one on the lower bout and one on the upper horn. The upper horn button placement is a Stratocaster-specific design that distributes the guitar's weight for better balance when standing. Original strap buttons have the same chrome aging as the rest of the hardware and show the characteristic flathead screw in the center.
String Tree
The 1962 Stratocaster has a single butterfly/wing string tree on the headstock that guides the B and high-E strings to maintain adequate break angle over the nut. A round-button string tree predates 1955 and is incorrect for 1962. Some 1962 examples may show a second string tree added for the G and D strings — this is a period player modification and is not uncommon.
Headstock, Logo & Tuners
The "Spaghetti" Logo
The 1962 Stratocaster headstock carries the classic "spaghetti" Fender logo — the thin, flowing cursive script in silver/chrome that was used from the early 1950s through approximately 1964–65. The logo is a water-slide decal applied on top of the headstock finish and protected by a clear topcoat. Key authentication points:
- ApplicationThe decal sits on top of the lacquer, protected by a clear topcoat over it. The logo should feel flush with the headstock surface, not raised above it in a way that suggests fresh application without clear coat. A logo that can be felt sitting well above the surface without any clear coat over it has likely been re-applied.
- Patent numbersMost 1962 Stratocaster decals include three patent numbers: "2,573,254," "2,960,900," and "Des. 164,227." Very early 1962 examples transitioning from the previous decal version may show two patent numbers, but three is correct for the majority of 1962 production. Note that the Stratocaster patent numbers differ from the Telecaster's — a claimed 1962 Strat showing only Telecaster patent numbers has a non-original decal. Count the numbers and match them to known 1962 reference examples.
- Model name"Stratocaster" appears below the Fender name in smaller script, with "WITH SYNCHRONIZED TREMOLO" on a separate line below that — correct for standard tremolo models. The text stack is distinctive and differs from later logo treatments.
- Color agingThe silver/chrome of the spaghetti logo ages over decades. A very bright, fresh-looking logo on a claimed 1962 may indicate headstock refinish or decal replacement. Some yellowing or oxidation of the silver is expected and normal.

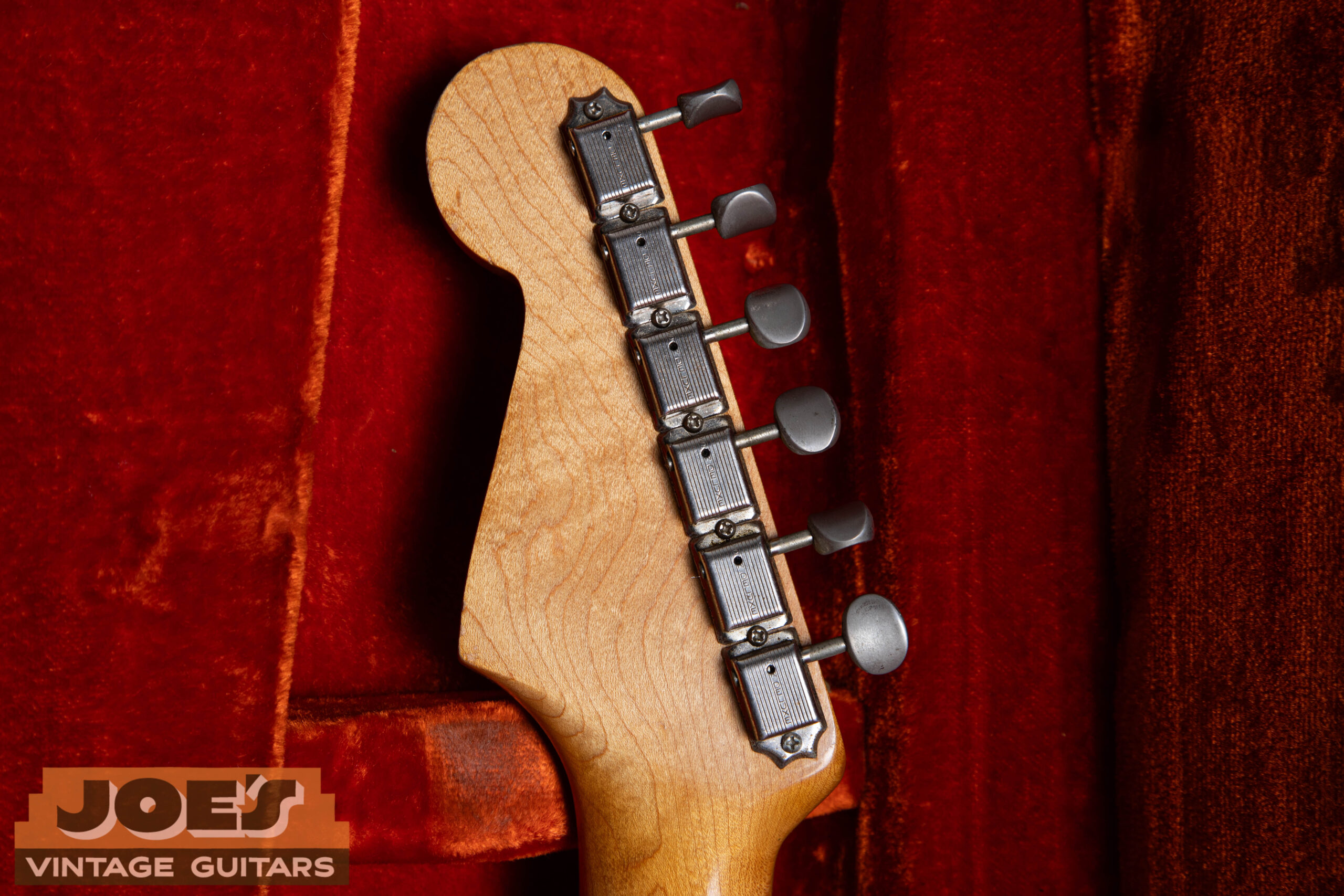

Kluson Deluxe "Single Line" Tuners
The 1962 Stratocaster uses Kluson Deluxe "single line" tuners — named for the single vertical line of text reading "Kluson Deluxe" stamped on the back of each gear housing. This distinguishes them from the earlier "no line" Klusons (blank housing) and the later "double line" versions. The tuner housings and buttons are all metal — chrome-plated throughout. There is no plastic or cream-colored material on these tuners.
Modern Grover Rotomatics — enclosed, circular-housing tuners — are the most common replacement on vintage Strats and are immediately identifiable. When Klusons are replaced with Grovers, the original mounting holes remain but additional screw holes from the Grover's three-point mounting are added. Three mounting screw holes per tuner (instead of one or two) indicates Grover replacement.
Dating From the Inside Out
Because the 1962 serial number is unreliable as a standalone tool, triangulating from multiple internal sources is essential. The methodology for a 1962 Stratocaster:
| Source | Where to Find It | What It Tells You | Reliability |
|---|---|---|---|
| Neck heel date | Butt end of neck, visible when neck is removed | Month and year neck was manufactured. Rubber stamp format: M-YY (e.g., "6-62") | Very high — single most reliable reference |
| Body date | Pickup cavity (middle or neck route) or tremolo spring cavity on back | Month and year body was routed. May differ from neck date by months | High — corroborating date |
| Pot codes | Back of volume and tone pots — remove pickguard | Earliest possible assembly date. Format: MFRYYWW | High — gives earliest assembly floor |
| Pickup dates | Bottom of pickup bobbin or tape around base | Approximate manufacture date of pickup when present | Moderate — corroborating, not always present |
| Neck plate serial | Chrome plate on back, neck-body junction | Approximate era — 80000–99999 is 1962 range; L-prefix = 1963+ | Low standalone — era indicator only |
| Fingerboard type | Headstock end of neck — slab vs. veneer depth | Slab = early 1962 or before; veneer = mid-1962 or after | High for placing within the year |
| Pickup flatwork | Bottom of pickup bobbins — remove pickguard | Black = correct for 1962 and all pre-CBS; gray flatwork appeared ~1964 onward | High for era confirmation |
Early 1962: Slab rosewood board + black-bottom pickups + pot codes in early 1962 + 5-digit serial 80000s + neck date early 1962.
Mid 1962: Transitional — slab or veneer rosewood + black-bottom pickups + pot codes mid-1962 + serial 85000–93000 + body/neck dates mid-1962.
Late 1962: Veneer rosewood board + black-bottom pickups + pot codes late 1962 + serial 90000s + neck date late 1962. Still 100% pre-CBS and highly desirable.
Custom Colors
Fender offered optional custom colors on the Stratocaster from 1956, but they remained a small fraction of production through the pre-CBS era. A genuine 1962 Stratocaster in a custom color is significantly rarer and more valuable than a sunburst example with otherwise identical specifications. Custom color Strats also have a much higher rate of refinishing — the value difference between original and refinished is enormous.
Period Colors Available in 1962
Fender used automotive lacquers from DuPont and Ditzler for all custom colors. The colors were drawn from current automotive paint charts and changed periodically as automakers updated their palettes. Colors available and used in 1962 production include:
Note: Color swatches above are approximations for reference. Original custom colors have aged significantly and vary by example. Always consult authenticated reference guitars or original Fender color chip charts for precise color matching.
Refinished Stratocasters in custom colors are extremely common, and identifying an original custom color finish requires expertise. Key indicators: the color should be under the pickguard and in body cavities, not just on exposed surfaces; the finish should show appropriate aging and checking in the nitrocellulose; the color should match known period examples (not modern re-issues); UV light can reveal original vs. later finishes. For any high-value custom color purchase, a hands-on expert appraisal is strongly recommended.
Body Wood Under Custom Colors
All custom color 1962 Stratocasters use alder bodies. Blonde Stratocasters use ash — the grain is part of the look under the semi-transparent blonde finish. Blonde and custom color are distinct categories with different body wood. Custom color guitars are painted with an opaque lacquer, so the body wood species does not affect the appearance, but it is a consistent specification.
Reissues, Fakes & Modifications
Fender American Vintage 1962 Reissues
1982–presentThe most common reissue encountered. Fender introduced the American Vintage Reissue (AVRI) series in 1982, and the '62 Strat has been a consistent part of the lineup. These are quality instruments but are not originals. Key differentiators:
- Pickups: AVRI pickups use different wire and materials — check that flatwork is black (correct for 1962), not gray (which appeared ~1964 and is a common misconception as "pre-CBS")
- Serial number: AVRI instruments have a "V" prefix serial number (e.g., V123456) — not a 5-digit pre-L-series number
- Neck plate: AVRI plates may have a "VINTAGE SERIES" or similar marking
Japanese Reissues (JV, SQ, E, A Series)
1982–1997Made in Japan (MIJ) Fenders from this era are sometimes confused with or misrepresented as originals. The early JV-series (1982–84) are widely considered the highest quality Japanese reissues and occasionally appear with fraudulently applied neck dates and removed serial numbers. Tells:
- Serial number prefix: JV, SQ, E, A, or similar — always a letter prefix, never 5 plain digits
- Neck heel: MIJ stamps say "Made in Japan" or "Crafted in Japan" on the neck heel
- Pickups: Wiring will be plastic-insulated rather than cloth-covered
Custom Shop & Time Capsule Versions
1987–presentFender's Custom Shop produces extremely accurate reproductions including "relic," "closet classic," and "time capsule" finishes designed to look aged. These can fool inexperienced buyers. Key tells:
- Serial: Custom Shop serials typically have a "CZ" prefix or are stamped on a special plate — the "R" prefix does not specifically mean Relic; Custom Shop serial formats vary by era
- Neck heel: This is the most reliable Custom Shop tell — the heel stamp will include the builder's initials, a "Master Built" designation, or "Fender Custom Shop" text. A genuine 1962 has a simple rubber-stamped month-year date and nothing else. Any additional text at the heel confirms Custom Shop origin regardless of how aged the guitar appears.
- Artificially aged parts: Relic treatments are visible up close — the "rust" is often too uniform, the "worn" areas too symmetrical, the "checking" too consistent. Original checking follows grain lines and stress points; artificial checking tends to be more random or uniform.
Common Modifications on Genuine 1962 Strats
Modifications that reduce value but don't disqualify authenticity:
- 5-way switch: The most common mod. Extremely widespread — many 1960s and 70s players modified their Strats. Does not affect authenticity but should be noted and valued accordingly.
- Tuner replacement: Grover Rotomatics were the most common swap. Kluson originals significantly increase value over Grovers on otherwise identical examples.
- Refret: Common on played examples. Original frets are small and vintage. Re-fretting with period-correct wire and retaining original fret slots does not severely impact value; jumbo re-fretting does.
- Rewiring: Modern wiring, replacement capacitors, and added shielding are common. Original wiring harness intact is a plus.
- Refinish: The most value-destructive modification. A refinished pre-CBS Strat can lose 50–70% of its value compared to an original-finish example. Refinishes are very common — always check under the pickguard and in cavities for original finish traces.
- Neck plate modification: Swapped neck plates are common. A mismatched serial number that doesn't match the neck/body dates indicates a plate swap.
Authentication Checklist
Use this checklist as a starting framework. No single item is definitive — authentication requires the full picture. Items in bold are the highest-priority checks.
Serial & Neck Plate
- 5-digit serial in 80000–99999 range — no "L" prefix (L-series = 1963+)
- Neck plate is plain chrome, 4-bolt, no logo — just the serial number
- Phillips-head neck screws, not slot-head
- Electrode mark visible on neck plate chrome
Neck & Fingerboard
- Slab rosewood (early 1962) OR veneer rosewood (mid–late 1962) — confirm which and verify consistently
- Slab board: rosewood depth at headstock end is ~4.8mm, flat underside visible
- Veneer board: rosewood depth at headstock end is ~2mm, curved underside
- Clay dot inlays — dull matte finish, NOT shiny pearloid
- Walnut skunk stripe on back of neck
- Truss rod adjusts at neck heel (body end) — NOT at headstock
- Neck heel date stamp in M-YY format consistent with claimed year
- Slim "C" neck profile — not chunky V (1950s) or extremely thin (late CBS)
Body
- Body date in pickup cavity or tremolo spring cavity consistent with neck date (may differ by months)
- Alder body (sunburst & custom colors) — ash body correct for blonde finish
- Nail holes on body face under pickguard — interior walls should be bare unfinished wood (nail masked the interior during spraying); finish coating inside the hole indicates a refinished body
- Double-cutaway contours (forearm cut, belly cut) smooth and well-defined
- 3-color sunburst shows yellow center, orange mid, dark outer (if sunburst)
- Finish checking consistent with 60+ years of nitrocellulose aging
Pickguard & Electronics
- 3-ply white/black/white pickguard — 11 screws
- 3-way pickup switch — NOT 5-way (5-way = post-1977)
- Three white dome knobs — master volume, neck tone, middle tone
- No bridge pickup tone control
- Pot codes confirm 1962 (Stackpole 304, CTS 137, or Centralab 134)
- All pot codes read within the same general period
- 250k pot values
- Cloth-covered hookup wiring throughout
- Ceramic disc tone capacitors — NOT bumblebees (Gibson), NOT orange drops (modern)
- CRL 3-way switch housing (look for "CRL" marking)
Pickups
- Black fiber flatwork on bottom of all three pickup bobbins — gray flatwork indicates ~1964 or later production
- Staggered pole pieces on all three pickups (bass poles taller than treble)
- Formvar-coated wire at pickup leads (yellow-orange insulation)
- DC resistance: neck ~5.5–6.5k, middle/bridge ~5.8–6.8k ohms
- White pickup covers — all three should show consistent aging
- Pickup date stamps consistent with claimed year (when present)
Bridge & Tremolo
- Synchronized tremolo — 6 individual threaded steel saddles, one per string
- Heavy steel tremolo block — cold to touch, magnetic (not lighter zinc)
- Chrome tremolo arm with aged white plastic tip
- 3 tremolo springs (standard) — spring cavity shows natural wood, no shielding paint
- White single-ply back plate — 5 screws
- Six chrome pivot screws on bridge plate
Headstock
- Spaghetti logo — silver/chrome cursive with appropriate age patina
- Three patent numbers on decal: 2,573,254 · 2,960,900 · Des. 164,227 (very early 1962 may show two — three is correct for most of the year)
- "WITH SYNCHRONIZED TREMOLO" text on decal
- Logo applied on top of finish, protected by clear topcoat
- Kluson Deluxe "single line" tuners — "Kluson Deluxe" stamped vertically on gear housing back
- Single butterfly/wing string tree — NOT round button (pre-1955)
Original Case & Accessories
By 1962, Fender had completed its transition from the late-1950s tweed case to a new case design. The correct original case for a 1962 Stratocaster is distinctly different from both the tweed case of 1959 and the black tolex cases that came later.
The 1962 Stratocaster Case
- ExteriorBrown Tolex covering — a textured vinyl material that replaced the tweed covering in approximately 1960. The brown Tolex is a warm brown with a slightly rough texture, distinctly different from the black Tolex used on many post-CBS cases.
- InteriorOrange or red-orange plush lining — the color of the interior lining is a useful dating cross-check. The orange/red plush is distinctive to the pre-CBS and early CBS era. Later cases use different interior colors and materials.
- ShapeContoured to follow the Stratocaster's double-cutaway body shape — wider at the lower bout, narrowing at the waist, and cut away at the upper bout. The case fits the guitar snugly.
- HardwareChrome or nickel-plated latches and handle hardware with appropriate age patina. The handle is typically a leather or vinyl strap with chrome end fittings.
- Case keyOriginal cases had a keyed latch. An original key — often a small barrel-style key — surviving with the guitar is a significant provenance indicator.
A 1962 Stratocaster with its original brown Tolex case, original case key, original tremolo arm, and any surviving paperwork (hang tags, owner's manual, warranty card) represents a complete and historically intact instrument. These accessories are increasingly rare as decades pass and original cases wear out or get separated. A complete original package can add meaningfully to both value and authentication confidence — an unbroken chain of custody from the Fullerton factory is the most compelling authentication available.
Related Resources
Further reading and tools for dating and valuing your vintage Fender.
Joe’s Vintage Guitars
47 N Fraser Dr E
Mesa, AZ 85203
Phone: (602) 900-6635
Email: joesvintageguitars94@gmail.com
Written by Joe Dampt
“Driven by a love for classic tunes, I specialize in buying, selling, and appraising vintage guitars, bringing music and history together.”
